Power Window Master Switch

Inspect the switch continuity between terminals.

POWER WINDOW MASTER SWITCH INSPECTION ⁽¹⁾

Switch Position Type Terminal

Arm Rest Type Terminal

Door Trim Type Terminal

Switch Side

Up

1 & 10, 4 & 5

1 & 3, 4 & 8

Left

Up

9 & 1, 0 & 6

1 & 2, 0 & 5

Right

Off

4 & 5, 10 & 4

4 & 8, 3 & 4

Left

Off

0 & 6, 1 & 0

0 & 5, 2 & 0

Right

Down

10 & 4, 1 & 5

3 & 4, 1 & 8

Left

Down

1 & 0, 9 & 6

2 & 0, 1 & 5

Right

Window Lock

Normal

4 & 0

4 & 0

Left & Right

Lock

N/A

N/A

N/A

⁽¹⁾	If continuity is not as specified, replace the switch.

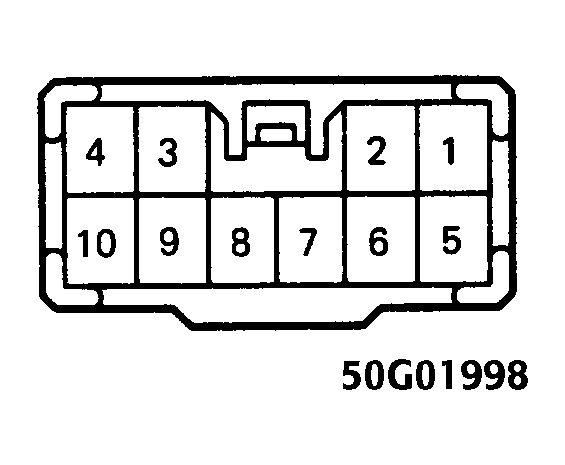

Fig 1: Power Window Master Sw. (Arm Rest Type)

G50G01998

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

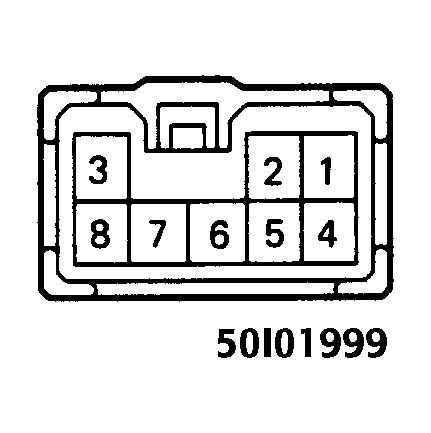

Fig 2: Power Window Master Sw. (Door Trim Type)

G50I01999

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
