Power Window Master Switch

Inspect the switch continuity between terminals. See Fig 1-Fig 3 . If continuity is not as specified, replace the switch.

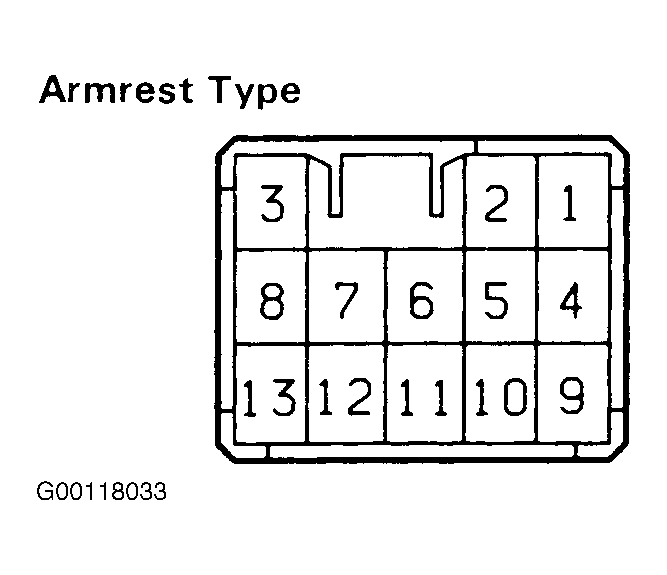

Fig 1: Identifying Power Window Master Switch Terminals (Armrest Type)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

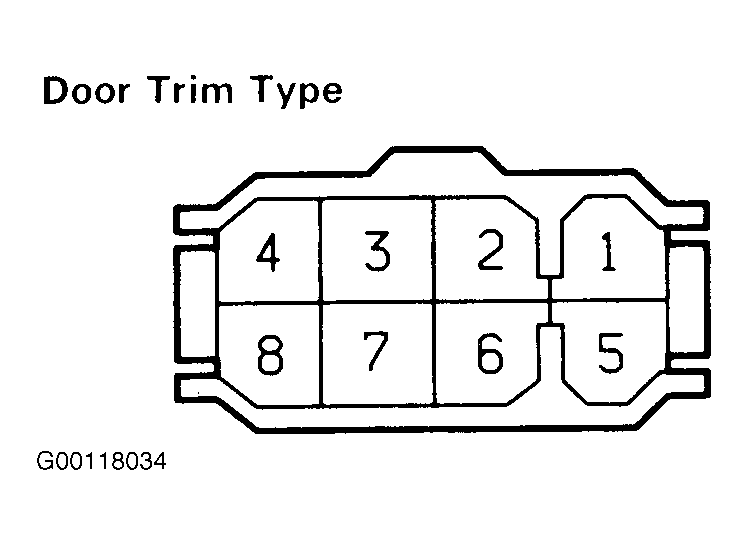

Fig 2: Identifying Power Window Master Switch Terminals (Door Trim Type)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

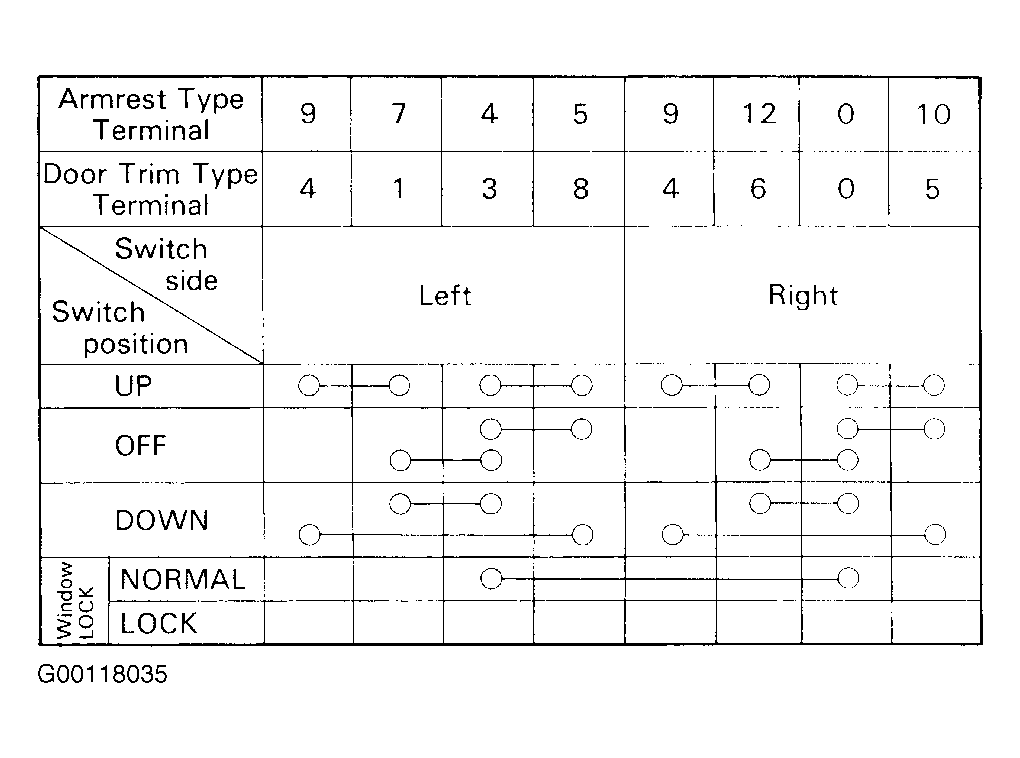

Fig 3: Testing Power Window Master Switch Continuity

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
