Back Door Window Lock Switch
Back Door Window Lock Switch
Inspect the switch continuity between terminals.
CONTROL SWITCH CONTINUITY INSPECTION
(1)
Switch Position
Terminal No.
Free
2 & 4
(1)
If continuity is not as specified, replace the switch.

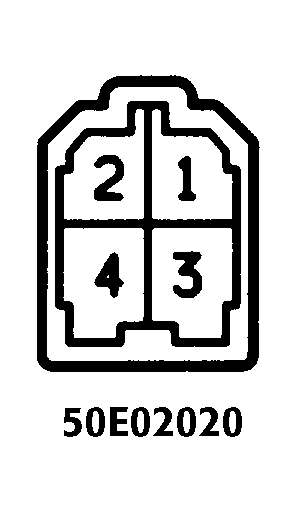

Fig 1: Back Door Window Lock Switch
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
