Backdoor Warning Light: Inspection

Disconnect the connector from the back door unlock warning switch. Connect the wire harness side connector and body ground. Turn the ignition switch on. Check that the bulb lights. If operation is not as specified, remove and test the bulb.

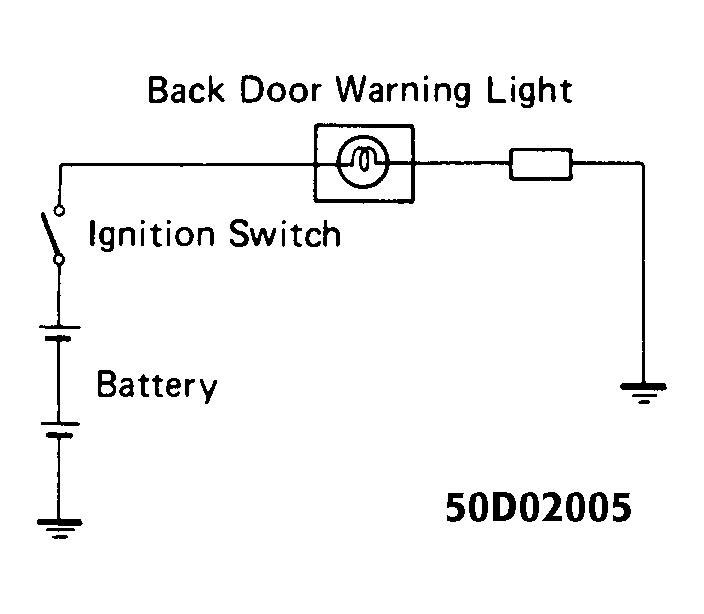

Fig 1: Backdoor Warning Light Schematic
G50D02005Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
