Cover Top Switch
Cover Top Switch
Inspect the switch continuity between terminals.
COVER TOP SWITCH CONTINUITY INSPECTION
(1)
Switch Position
Terminal No.
Free
1 & 2
Pushed
2 & 3
(1)
If continuity is not as specified, replace the switch.

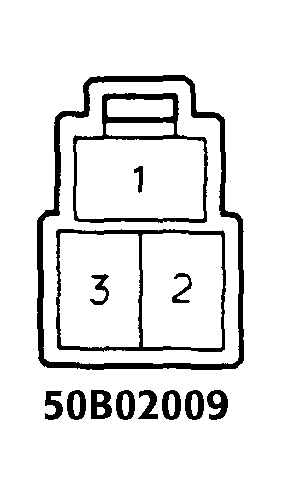

Fig 1: Cover Top Switch Terminals
