Rear Wiper Retraction Detection Switch: Inspection

Check that there is continuity when the switch is free (wiper operating). Check that there is no continuity when the switch is pushed (wiper retracted). If continuity is not as specified, replace the switch.

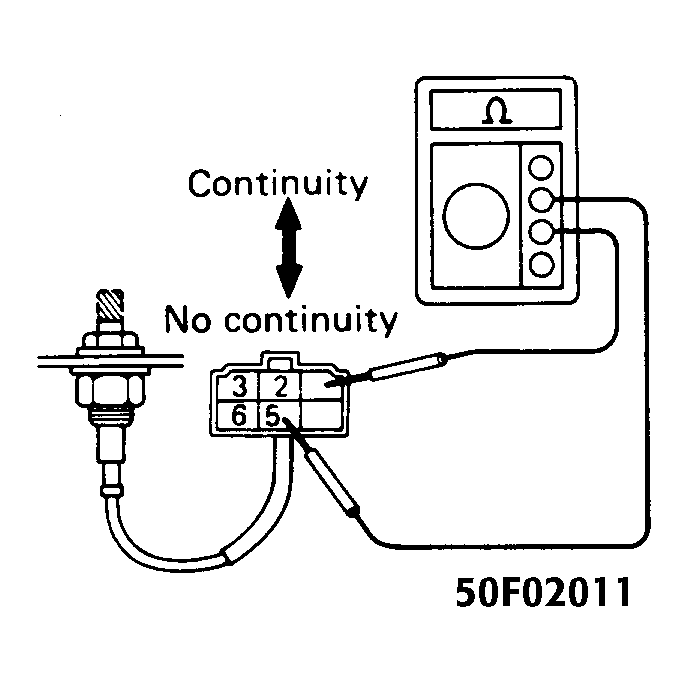

Fig 1: Retraction Detection Switch (Switch Continuity)
G50F02011Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
