Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location | |
|---|---|---|
| Circuit Breakers | ||

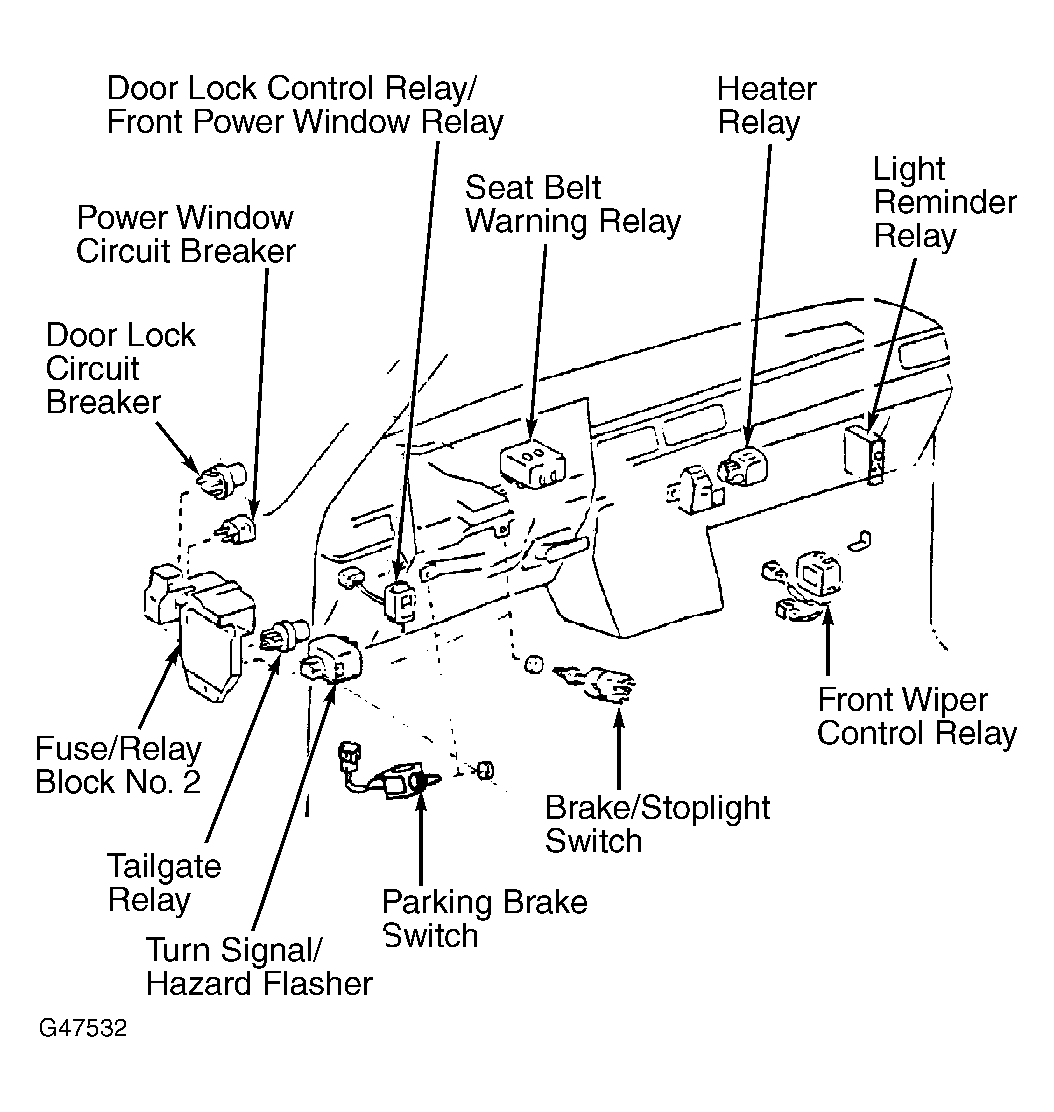

| Door Lock | In Fuse/Relay Block No. 1. See Figure. | |
| Power Window | In Fuse/Relay Block No. 1. See Figure. | |
| EFI Fusible Links (30-amp) | On Fuse/Relay Block No. 2. | |
| Fuse/Relay Block No. 1 | Under Left Side Of Dash. See Figure. | |
| Fuse/Relay Block No. 2 | On Front Right Corner Of Engine Compartment. See Figure. | |
| Fuse/Relay Block No. 3 | Under Right Side Of Dash. | |
