Home >> Toyota >> 1987 >> 4Runner SR5, 22-RTE >> Repair and Diagnosis >> Engine Performance >> System >> TCCS System >> Trouble Shooting >> "Check Engine" Light "Off"

"Check Engine" Light "Off"

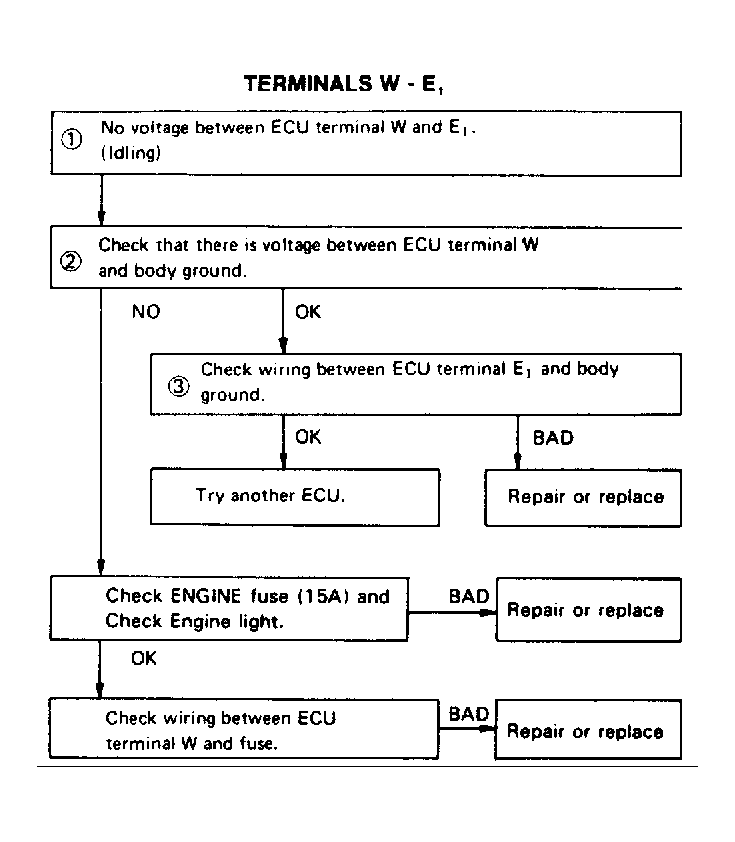

Fig 1: Terminals W - E(1) Part 1 of 3
G62018Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

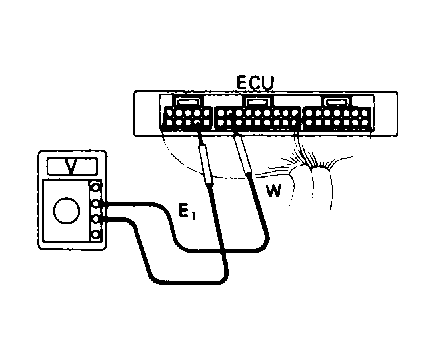

Fig 2: Wiring Diagram Part 2 of 3
G62019Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

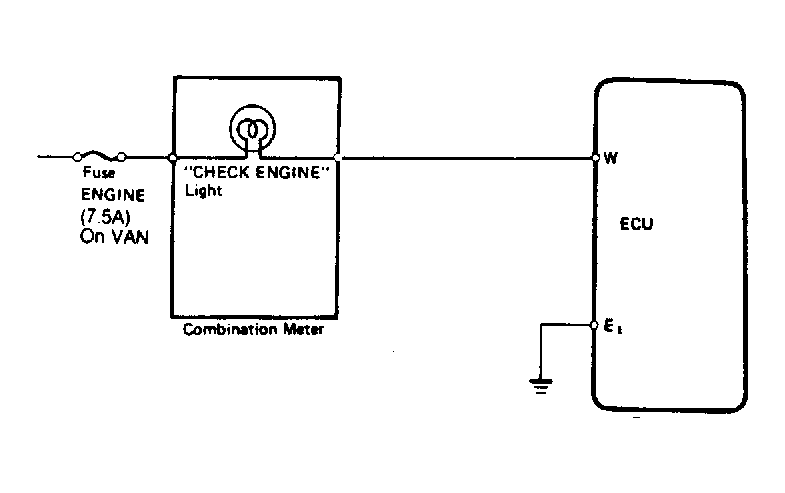

Fig 3: Wiring Diagram Part 3 of 3
G62020Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
