Injector Circuit Check

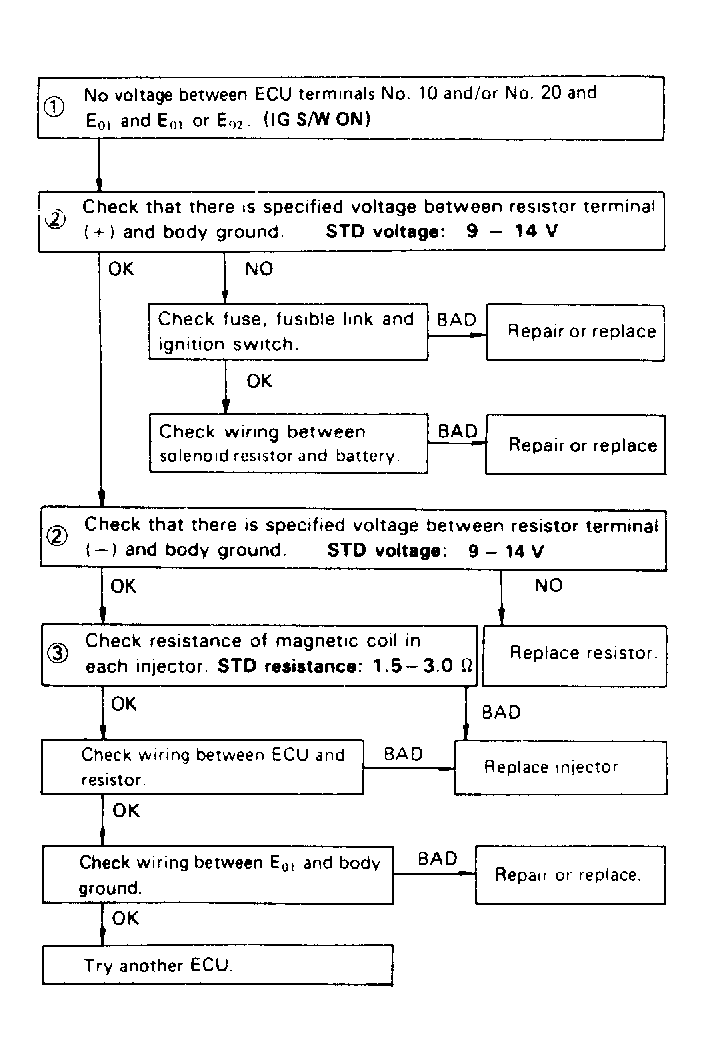

Fig 1: Terminals No. 10 & 20 - E(01) & E(02) Part 1 of 4
G62000Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

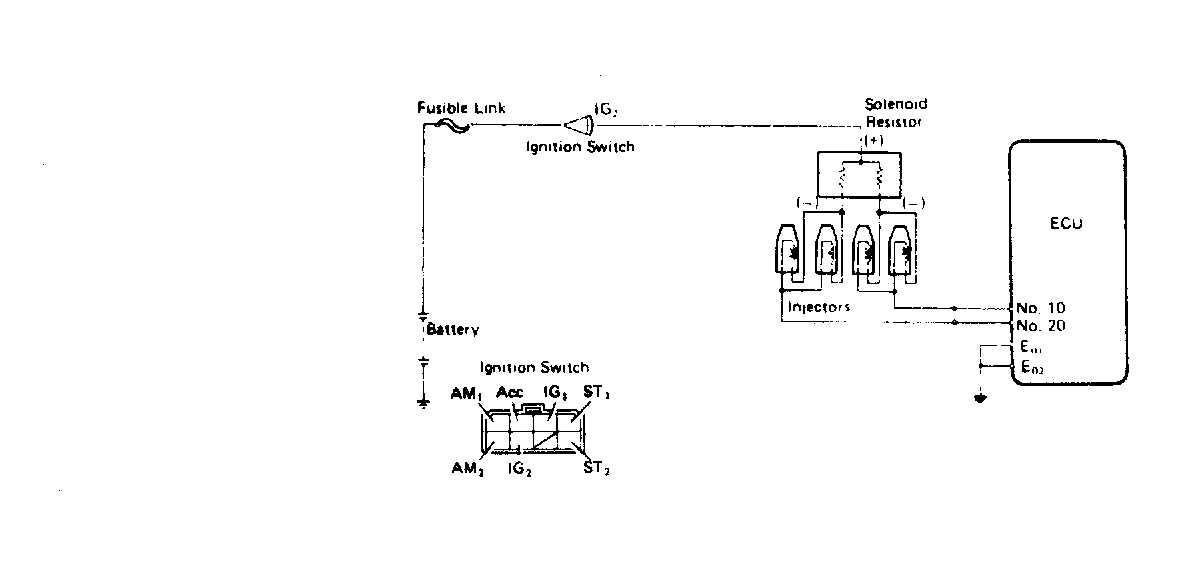

Fig 2: Wiring Diagram Part 2 of 4
G61999Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

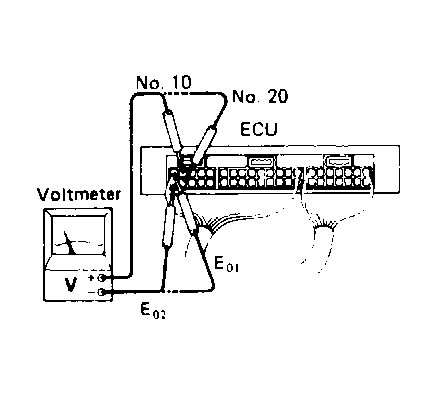

Fig 3: Wiring Diagram Part 3 of 4
G61998Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Wiring Diagram Part 4 of 4
G61997Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
