Home >> Toyota >> 1987 >> 4Runner SR5, 22-RTE >> Repair and Diagnosis >> Engine Performance >> System >> TCCS System >> Wiring Diagrams

Wiring Diagrams

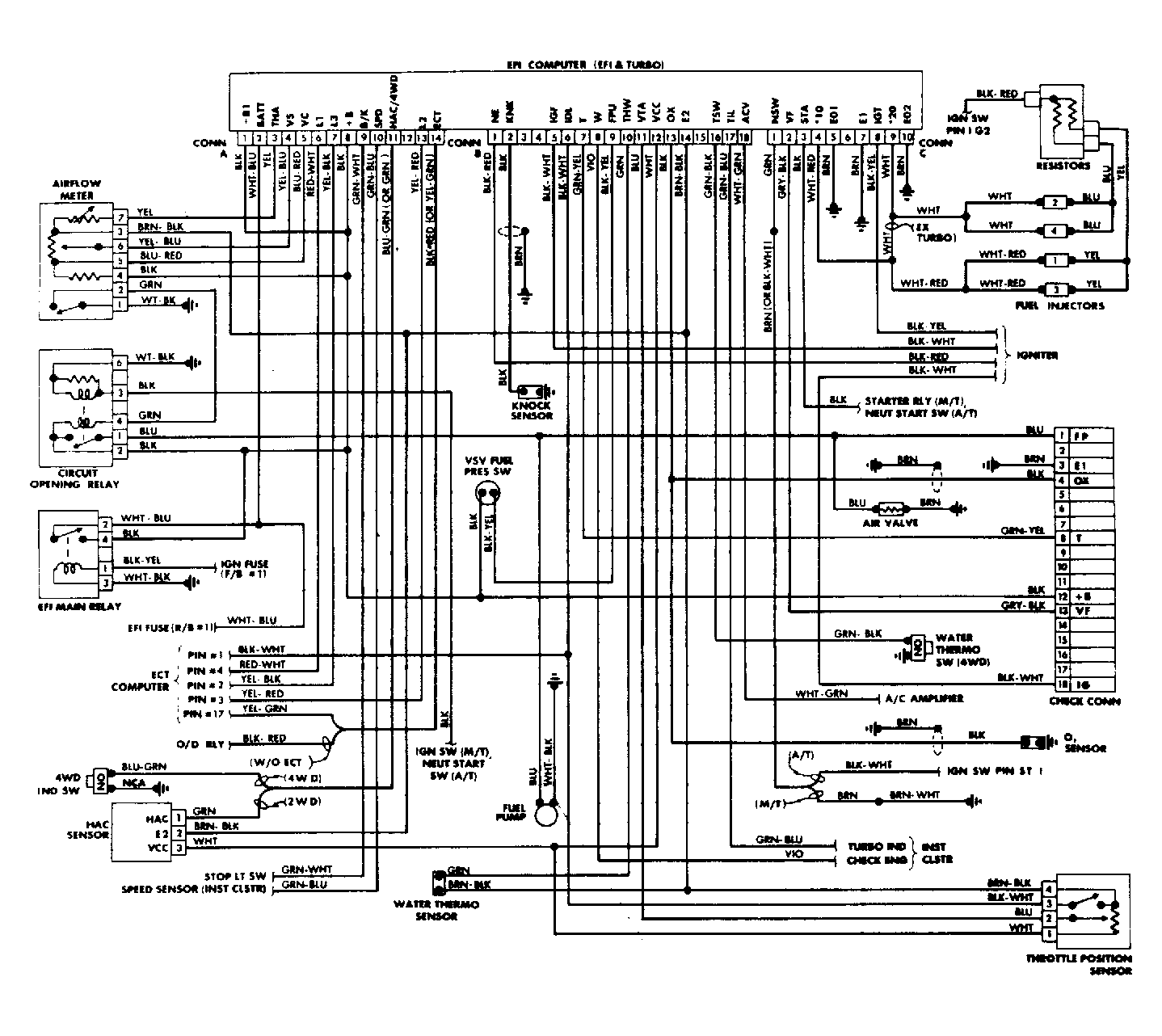

Fig 1: Pickup & 4-Runner TCCS Wiring Diagram
G62161Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
