TCCS System
>>
Diagnostic Charts
>>
Code 22 Coolant Temperature Sensor
Code 22 Coolant Temperature Sensor

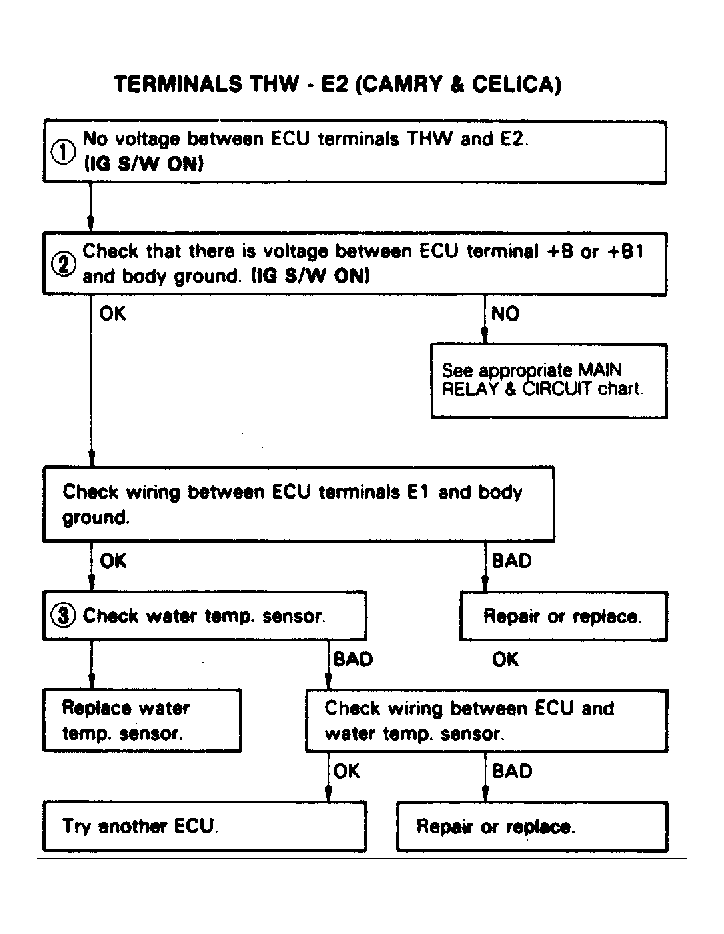

Fig 1: Terminals THW - E2 (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

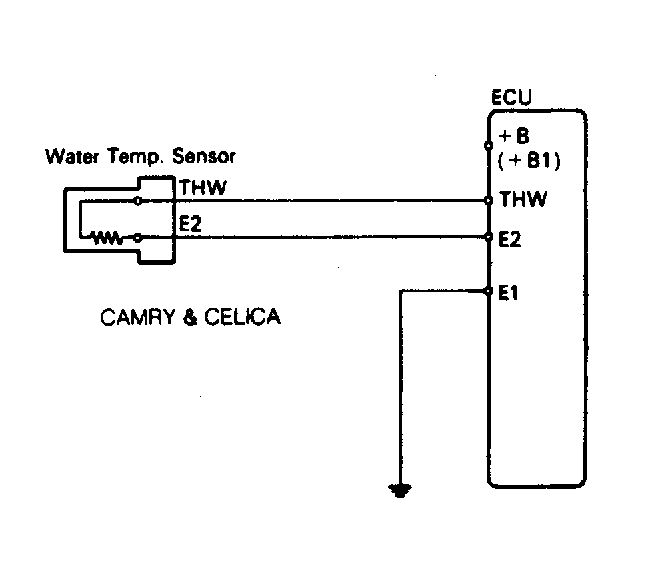

Fig 2: Terminals THW - E2 (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
