Code 5 Oxygen Sensor

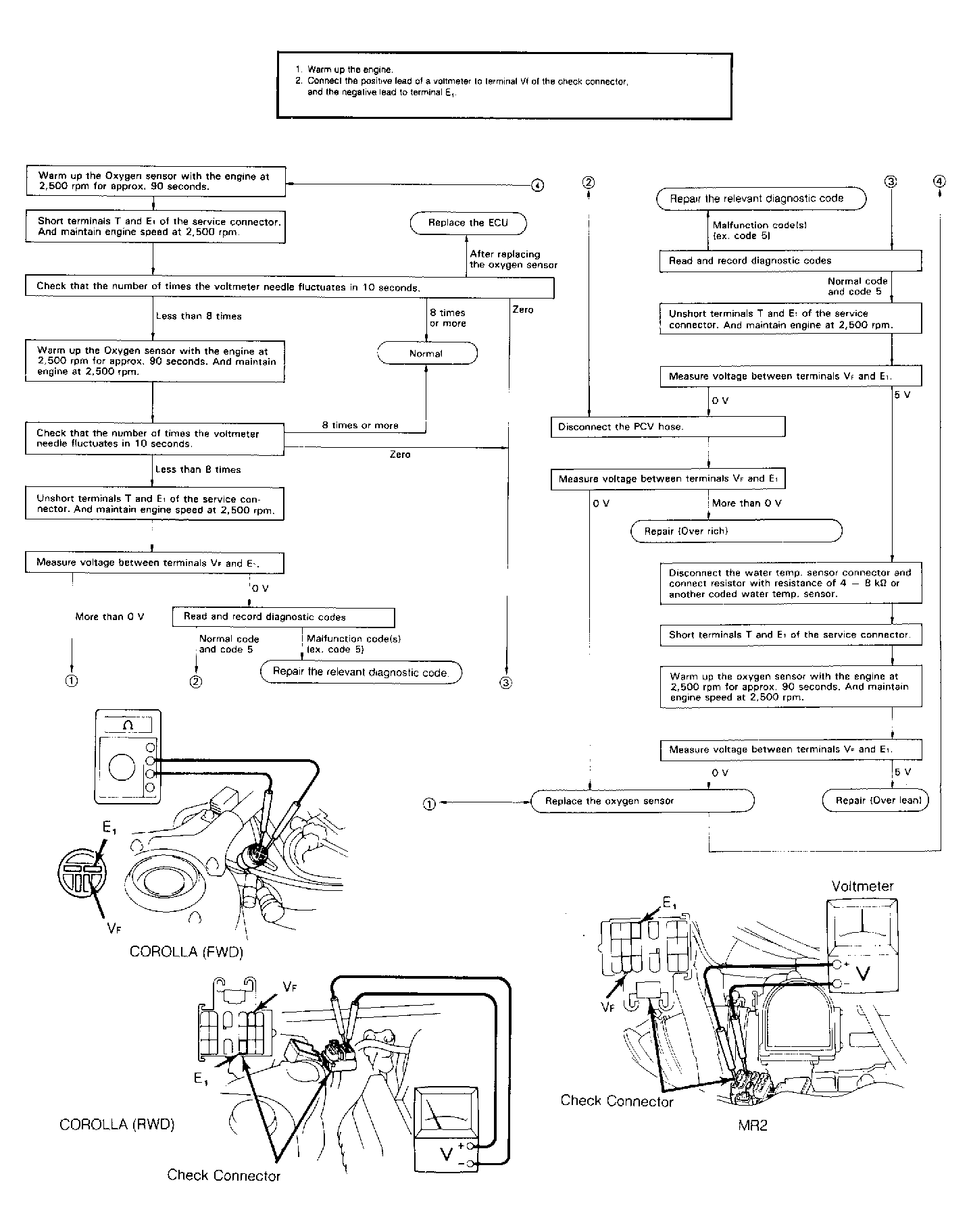

Fig 1: Trouble Code 5 Oxygen Sensor (1 of 4)
G62052Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Trouble Code 5 Oxygen Sensor (2 of 4)
G62053Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Wiring Diagram (FWD) (3 of 4)
G62051Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

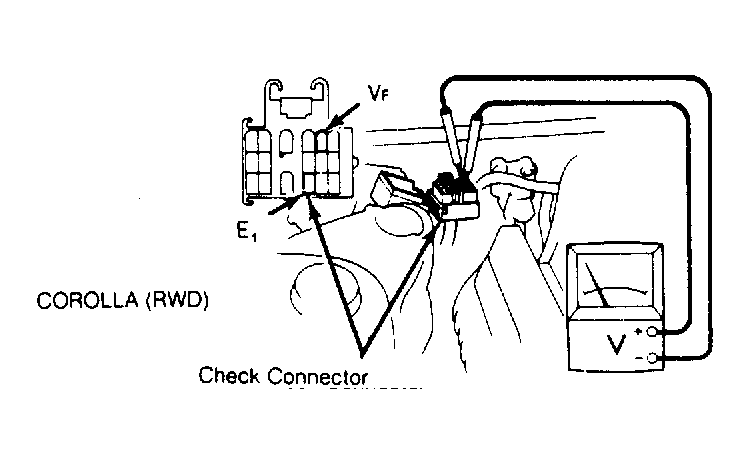

Fig 4: Wiring Diagram (RWD) (4 of 4)
G62050Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
