1987
>>
Corolla LE, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
TCCS System
>>
Diagnosis & Testing
>>
Injector Circuits Check
Injector Circuits Check

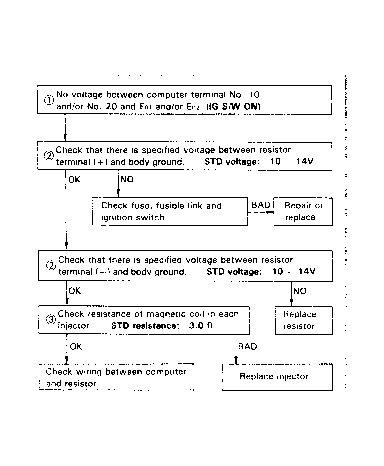

Fig 1: Injector Circuits Check (1 of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

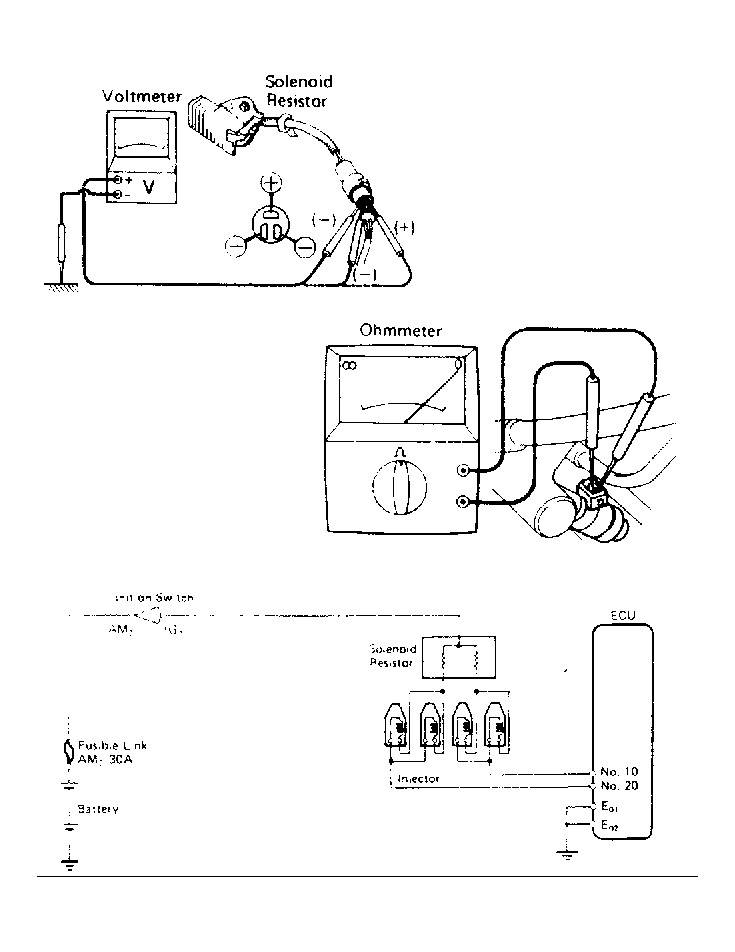

Fig 2: Injector Circuits Check (2 of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
