Control Units

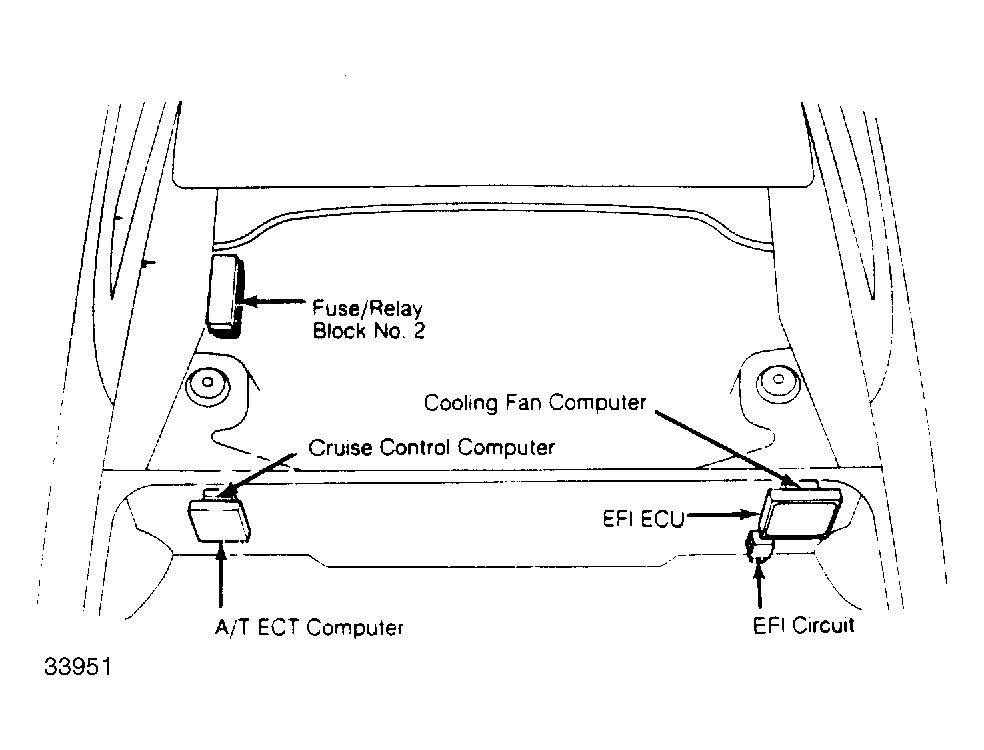

CONTROL UNITS LOCATION

Component Location
Cooling Fan Computer On front right corner of rear luggage compartment, behind ECU. See Figure.
Cruise Control Computer In rear luggage compartment, behind ECT computer. See Figure & Figure .
Electronic Control Unit (ECU) In front of rear luggage compartment. See Figure.
Electronic Controlled Transaxle (ECT) Computer On left front corner of rear luggage compartment. See Figure.
