Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|

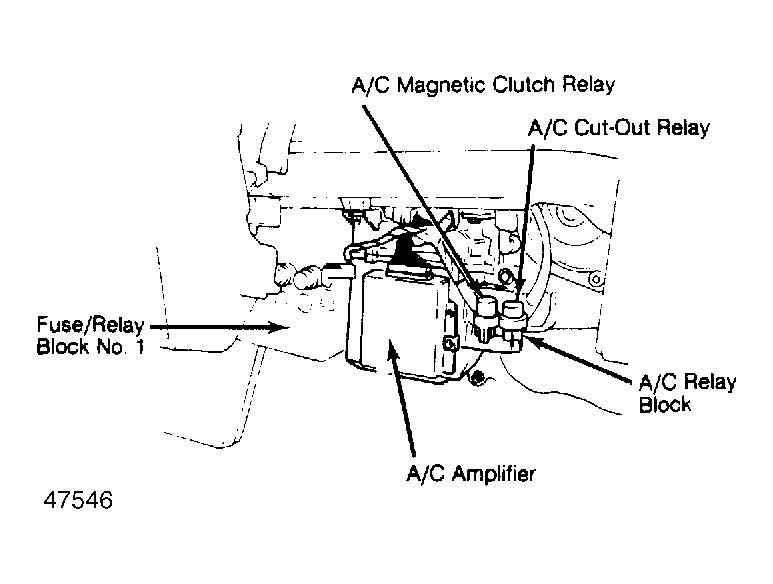

| Fuse/Relay Block No. 1 | Under center of dash. See Figure & Figure . |
| Fusible Link Box No. 1 | On center of vehicle, above transmission housing. |
| Fusible Link Box No. 2 | Attached to battery. |
| Heater Circuit Breaker (Front) | On fuse/relay block No. 1. See Figure. |
| Heater Circuit Breaker (Rear) | Under center of dash, on right side of fuse/relay No. 1. See Figure. |
| Power Window Circuit Breaker | Under center of dash, on right side of fuse/relay No. 1. See Figure. |
