Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location | |
|---|---|---|
| Circuit Breakers | ||
| Door Lock | In fuse/relay block No. 1. See Figure Or Figure . | |
| Power Window | In fuse/relay block No. 1. See Figure Or Figure . | |
| EFI Fusible Links (30 Amp) | On fuse/relay block No. 2. | |

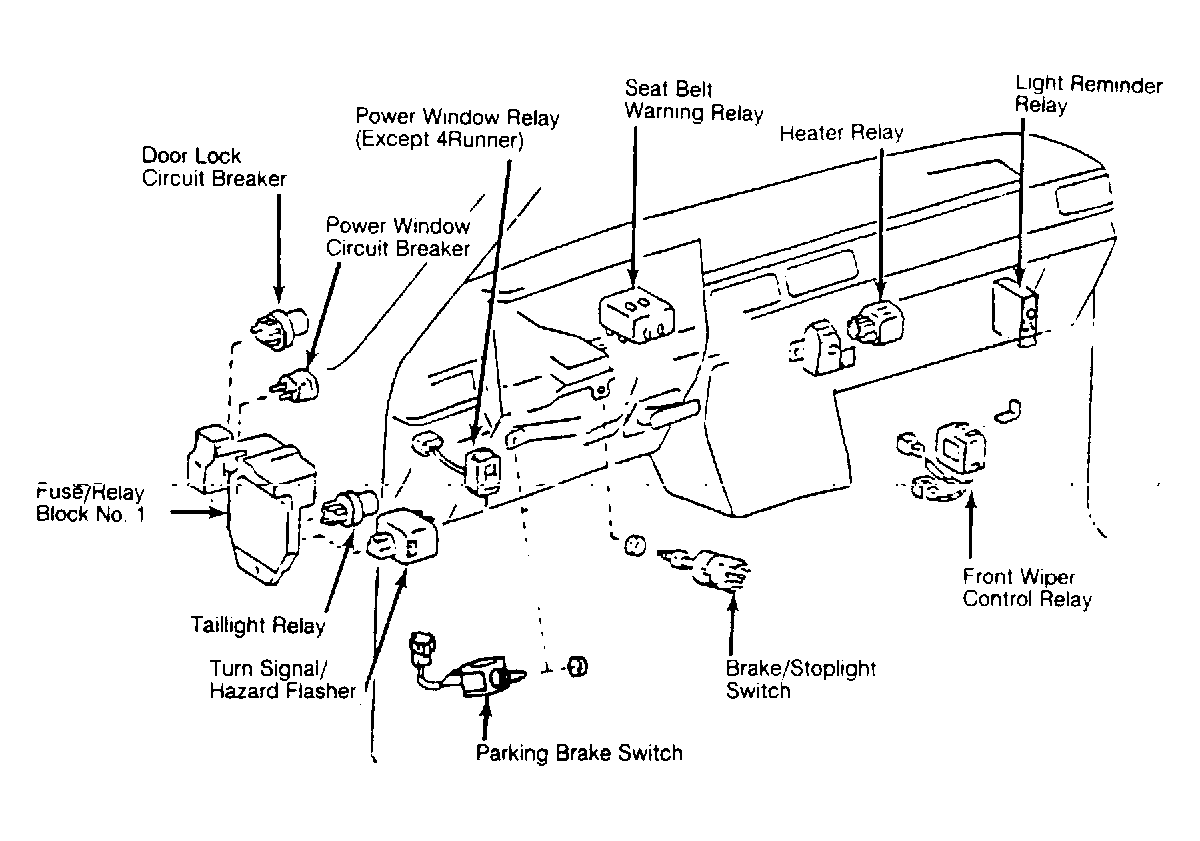

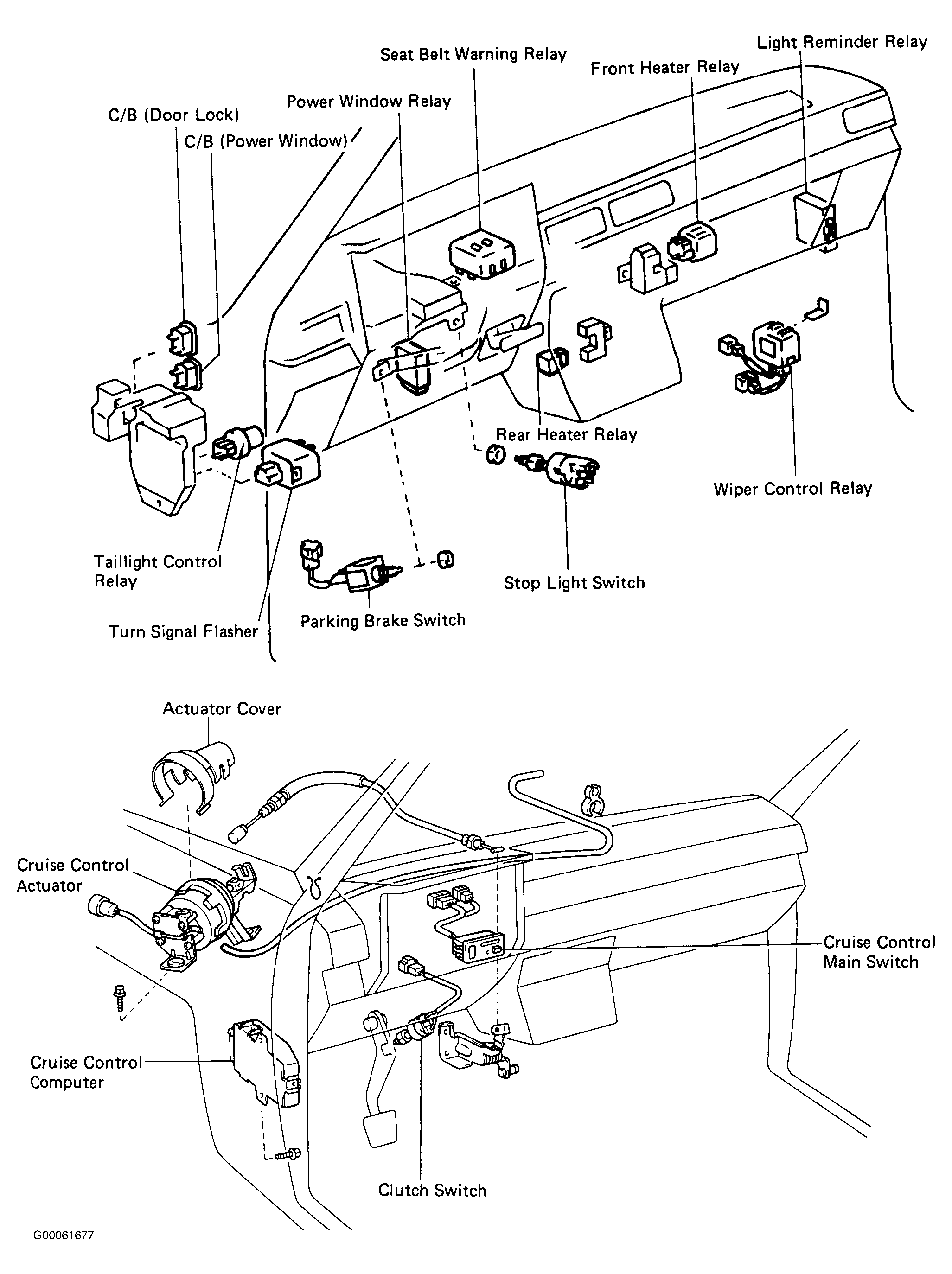

| Fuse/Relay Block No. 1 | Under left side of dash. See Figure Or Figure . | |
| Fuse/Relay Block No. 2 | On front right corner of engine compartment. | |
| Fuse Block No. 3 | Behind glove box. | |
