NO. 12 Test, Injector Circuit Test

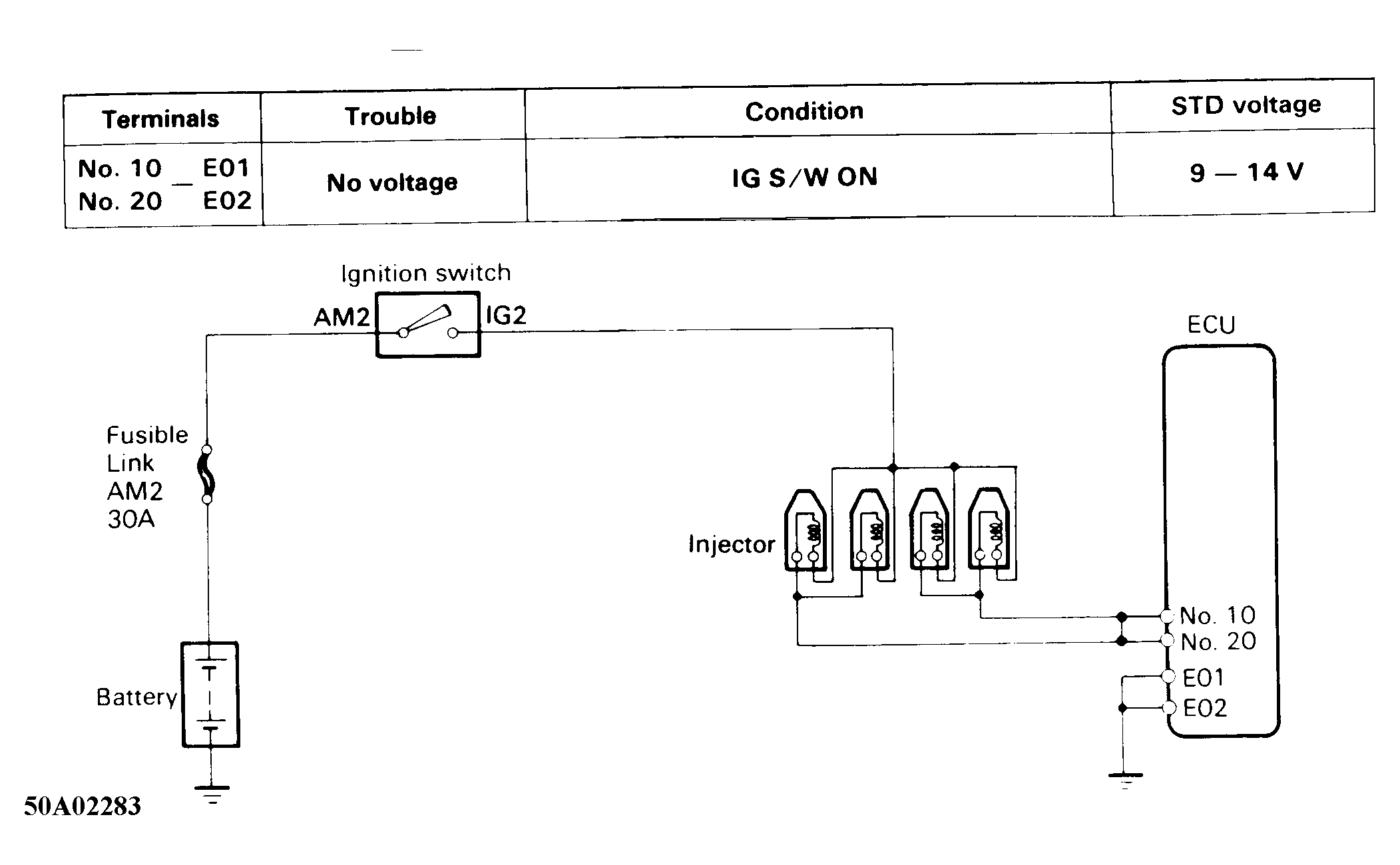

Fig 1: Test 12 Schematic, Injector Circuit Test (4-Cyl.)
G50A02283Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

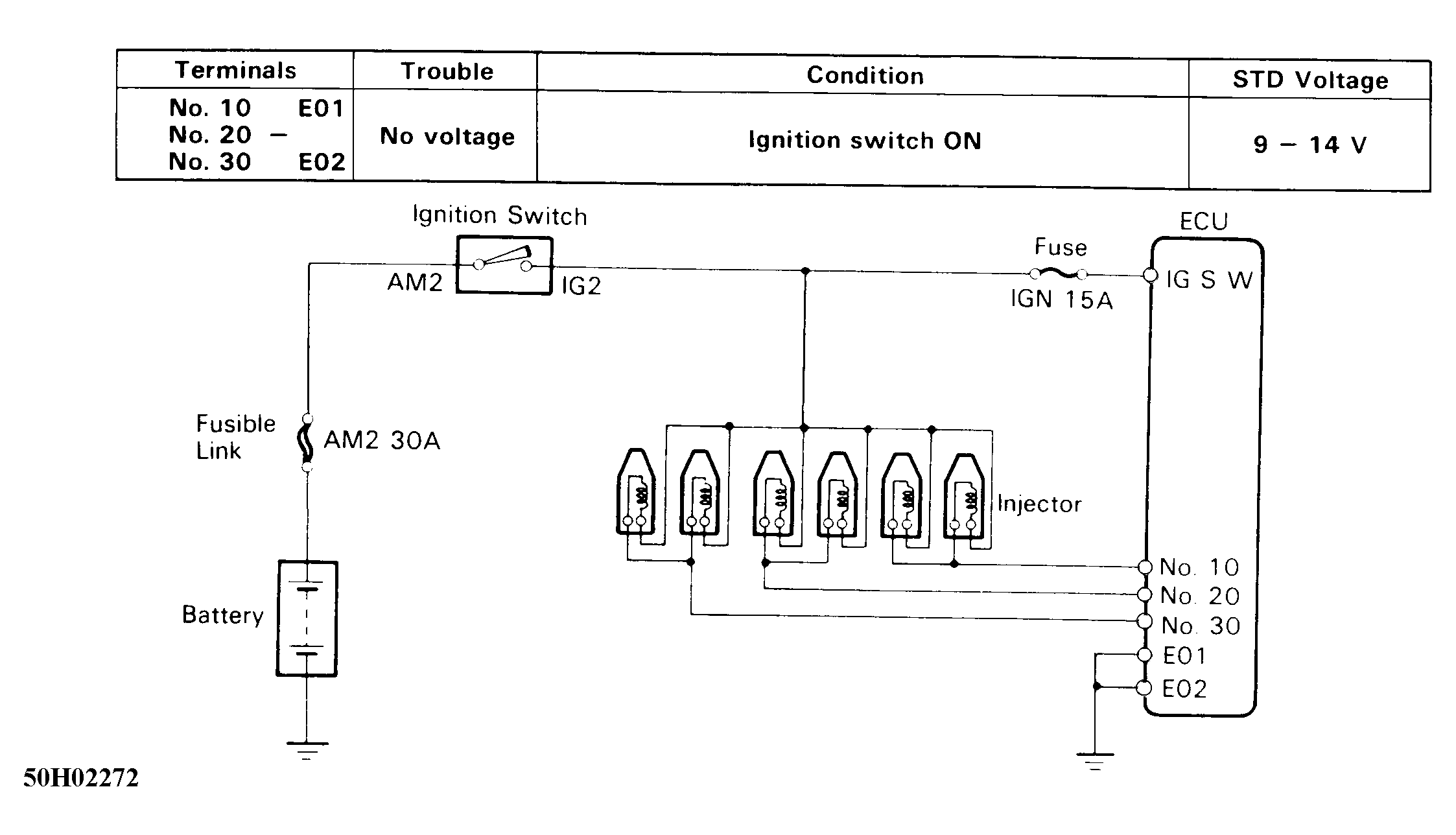

Fig 2: Test 12 Schematic, Injector Circuit Test (V6)
G50H02272Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

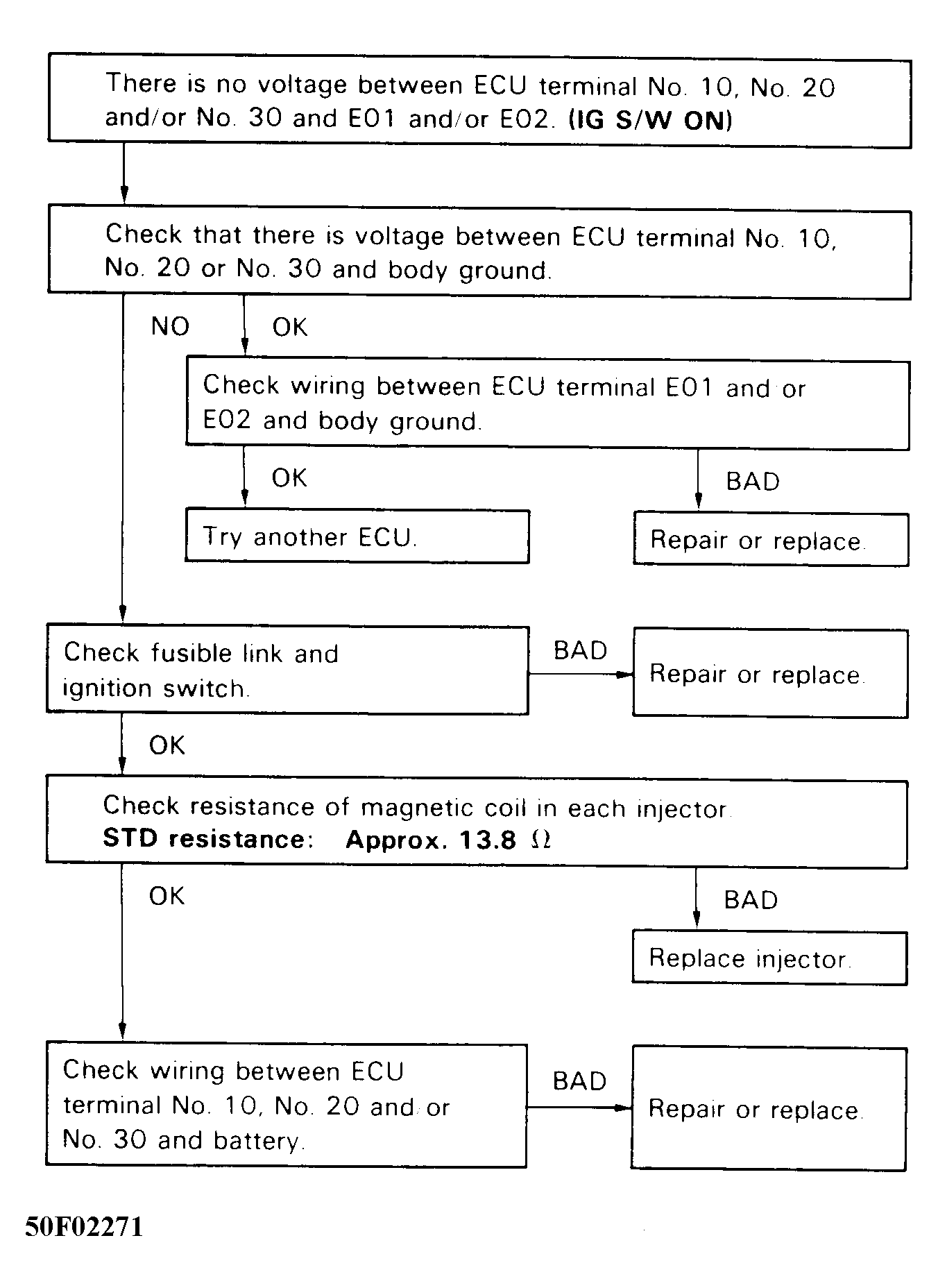

Fig 3: Test 12 Flow Chart, Injector Circuit Test
G50F02271Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
