No. 9 Test, Code 43, Starter Signal
No. 9 Test, Code 43, Starter Signal

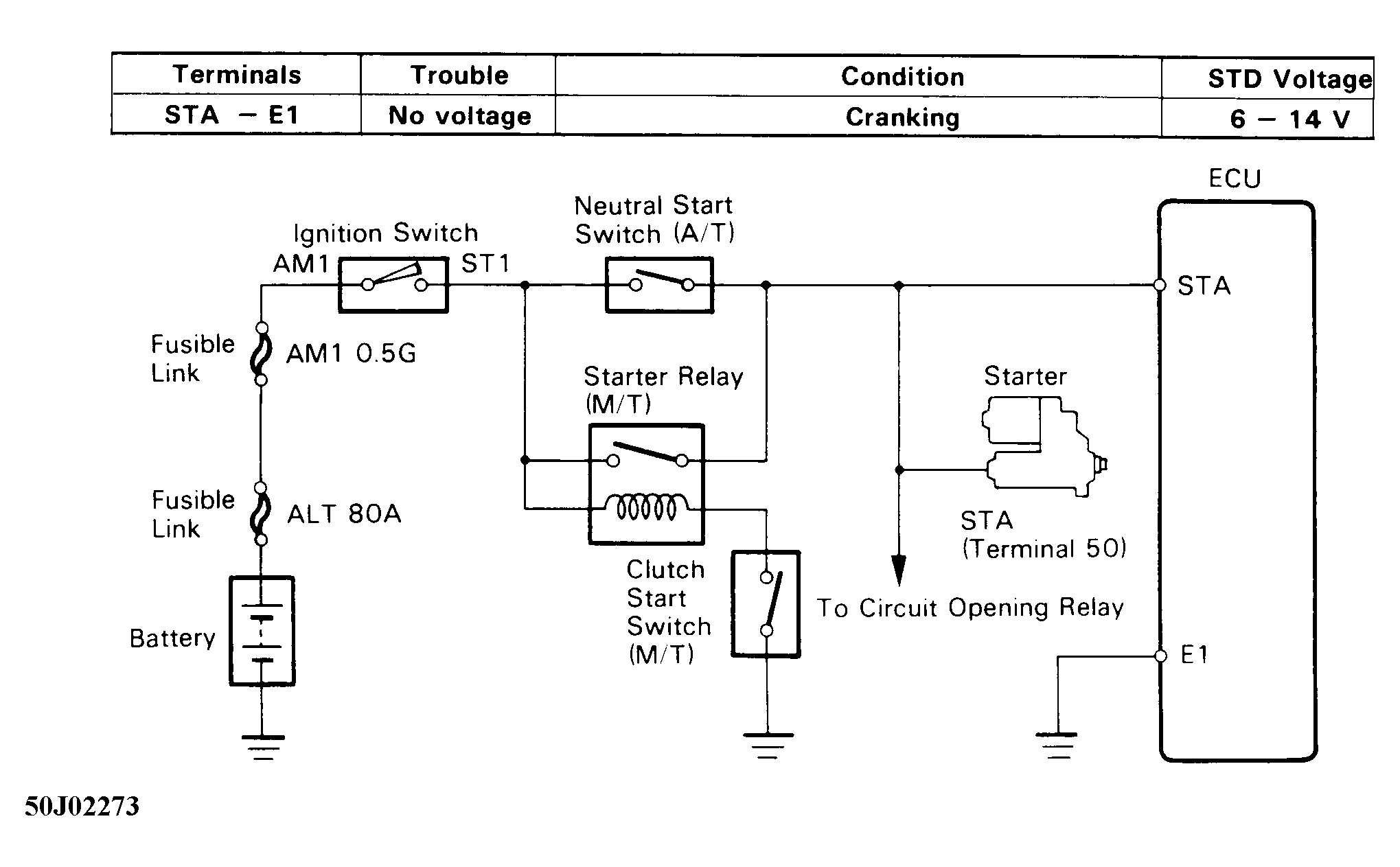

Fig 1: No. 9 Test, Code 43 Schematic, Starter Signal
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

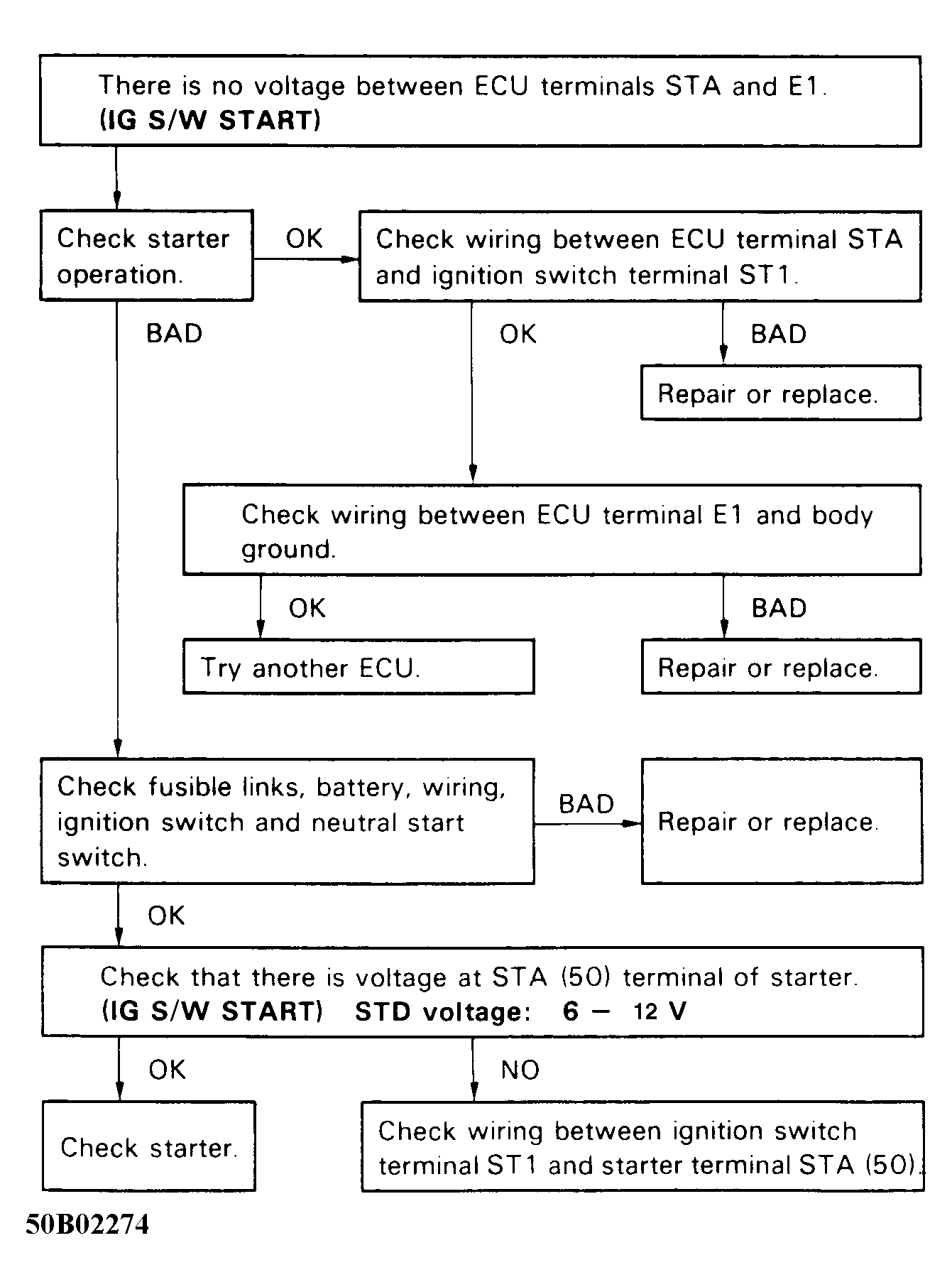

Fig 2: No. 9 Test, Code 43 Flow Chart, Starter Signal
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
