Diagnostic Circuit Check

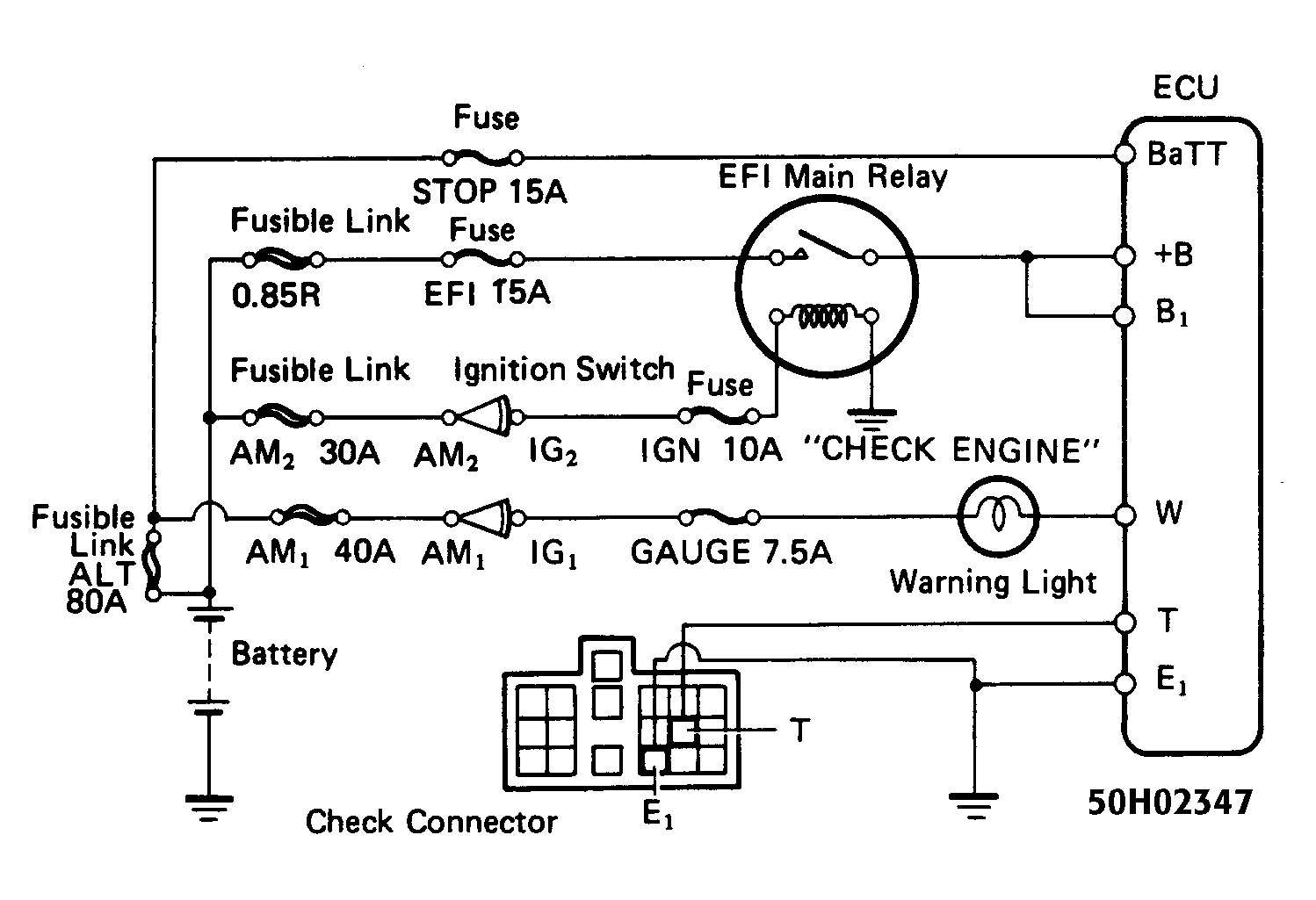

Fig 1: Diagnostic Circuit Check, Schematic (FX-16)
G50H02347Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

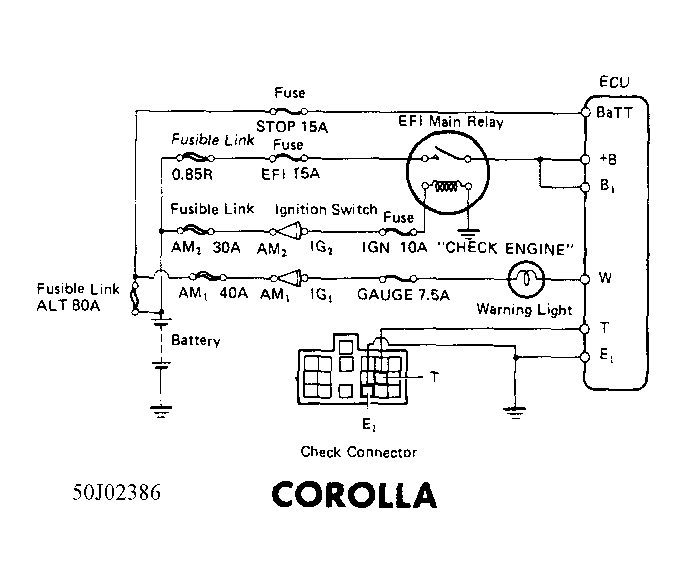

Fig 2: Diagnostic Circuit Check, Schematic (Exc. FX-16)
G50J02386Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

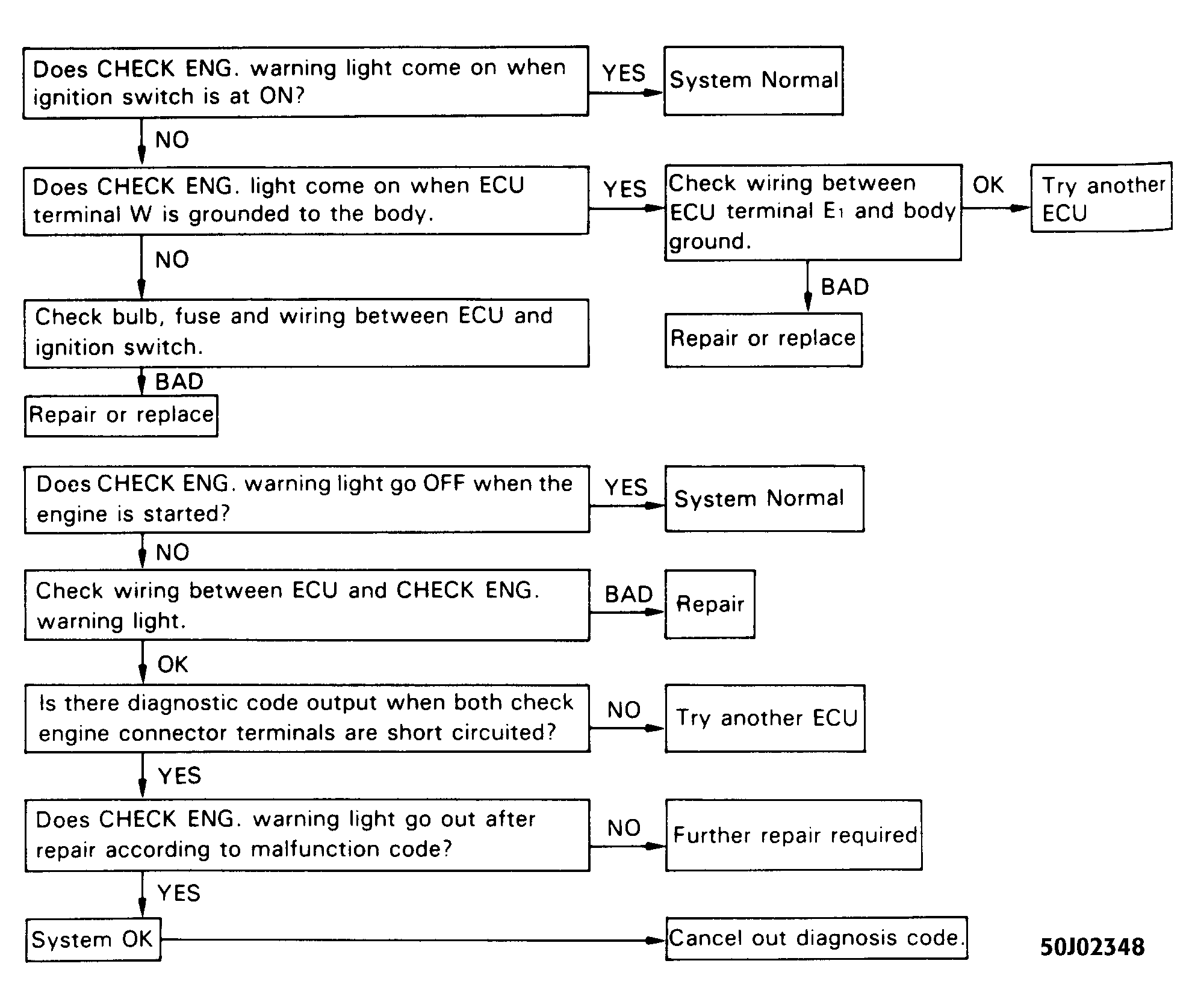

Fig 3: Diagnostic Circuit Check, Flow Chart
G50J02348Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
