No. 10 Test, Code 51, A/C Switch Signal

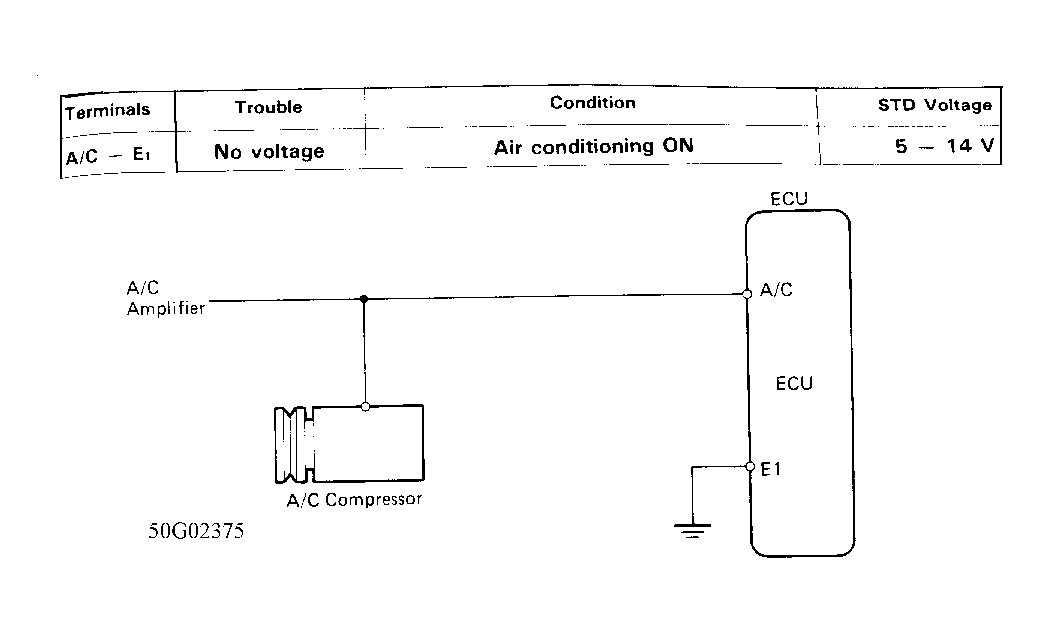

Fig 1: No. 10 Test, Code 51 Schematic, A/C Switch Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

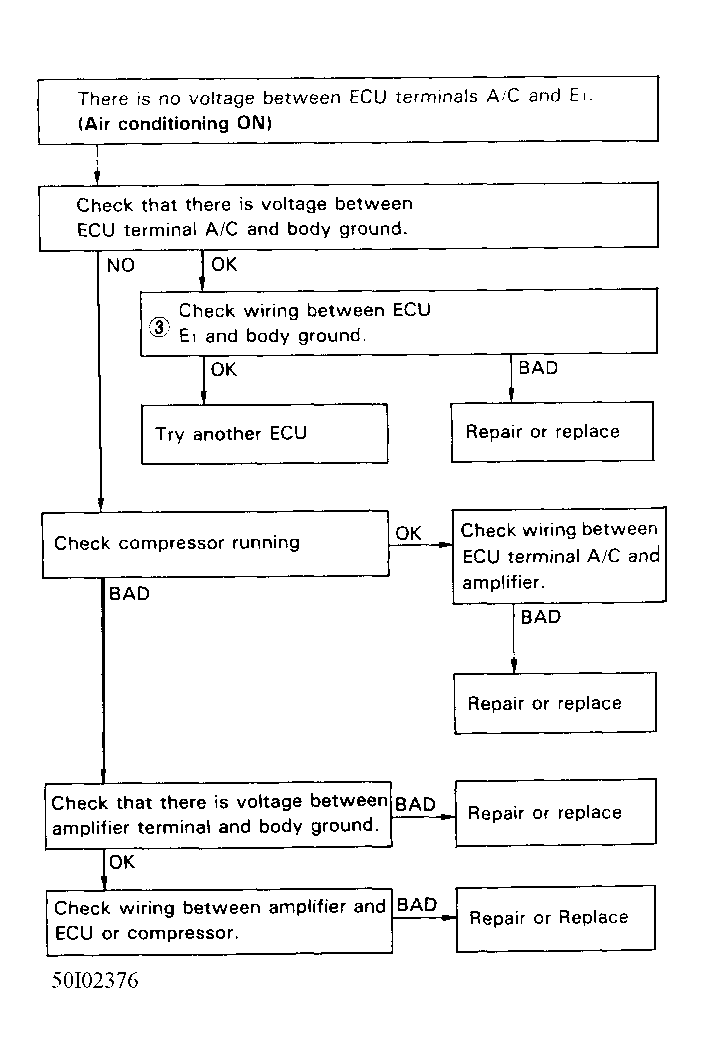

Fig 2: No. 10 Test, Code 51 Flow Chart, A/C Switch Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
