Toyota
>>
1988
>>
Corolla LE, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Computer Control System
>>
Diagnostic Charts
>>
No. 12 Test, Injector Circuit Test
No. 12 Test, Injector Circuit Test

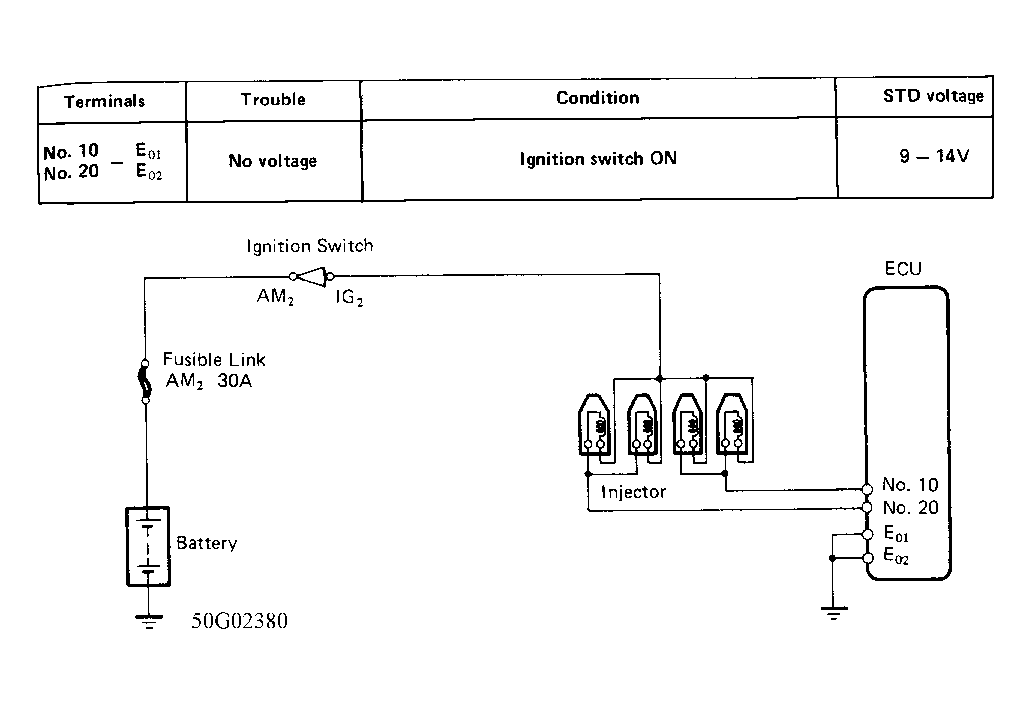

Fig 1: No. 12 Test, Injector Circuit Test, Schematic
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

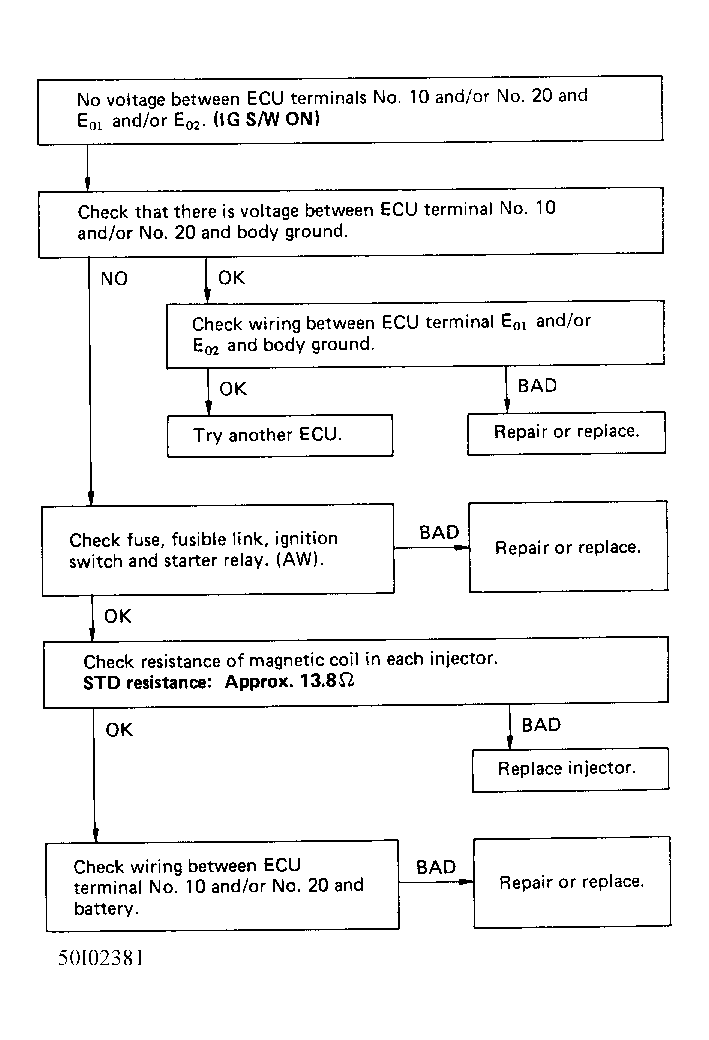

Fig 2: No. 12 Test, Injector Circuit Test, Flow Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

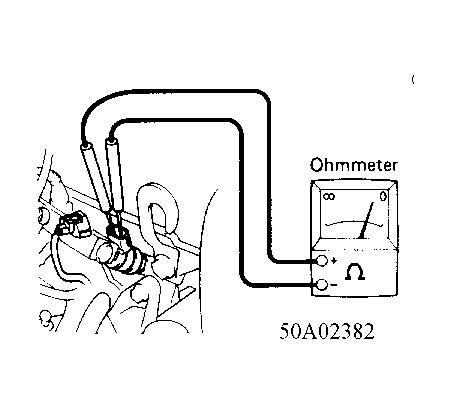

Fig 3: No. 12 Test, Magnetic Coil Test
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
