No. 2 Test, Ecu Power Source

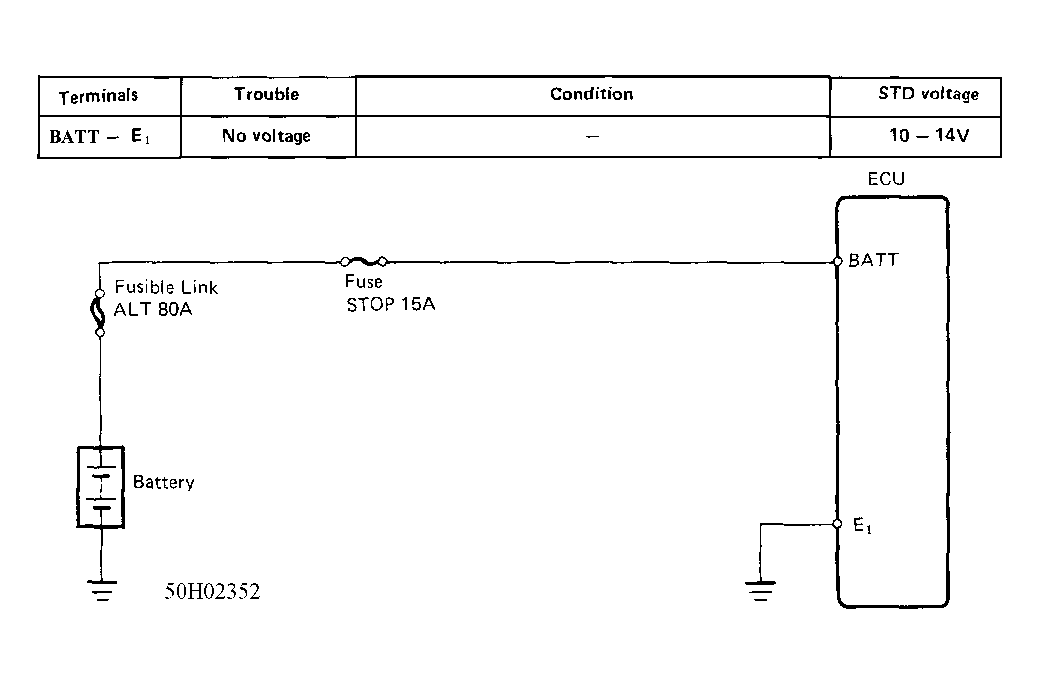

Fig 1: No. 2 Test, ECU Power Source, Schematic
G50H02352Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

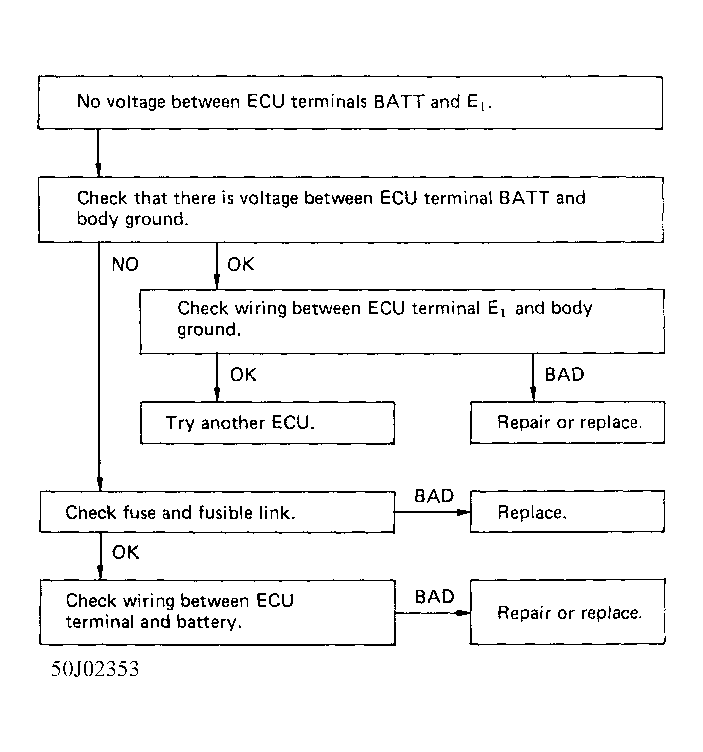

Fig 2: No. 2 Test, ECU Power Source, Flow Chart
G50J02353Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
