No. 8 Test, Code 41, TPS Signal
No. 8 Test, Code 41, TPS Signal

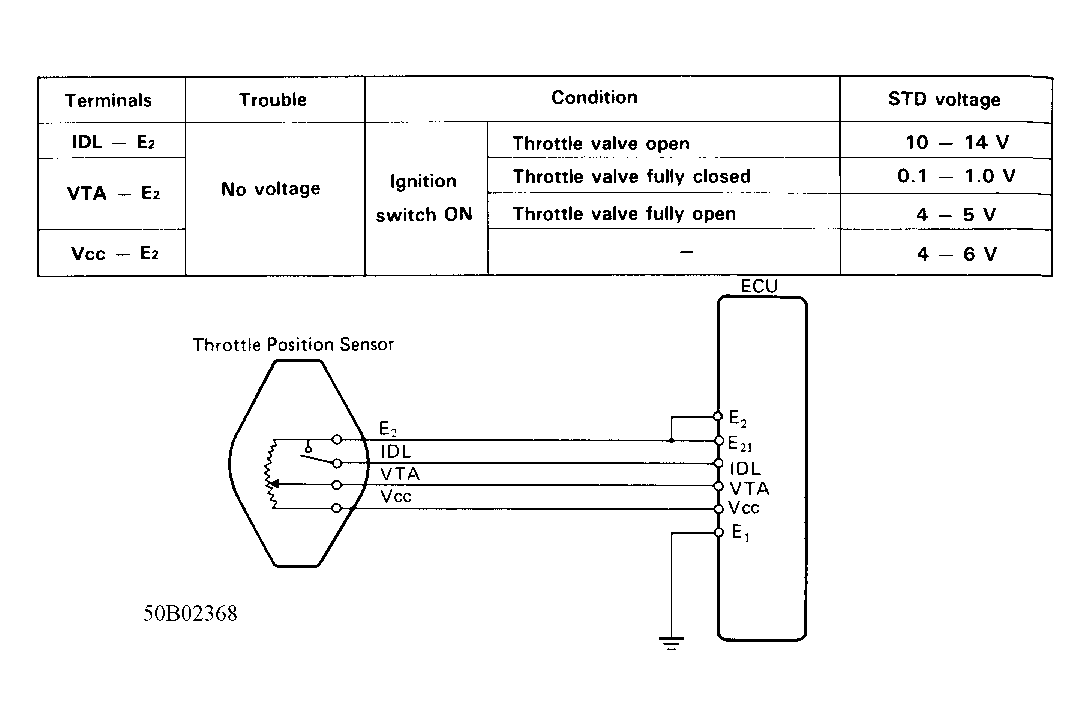

Fig 1: No. 8 Test, Code 41 Schematic, TPS Signal
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

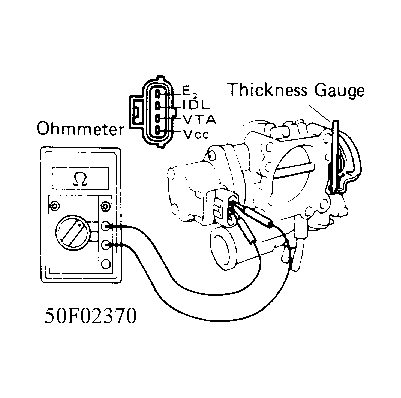

Fig 2: No. 8 Test, Code 41, TPS Sens. Check
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

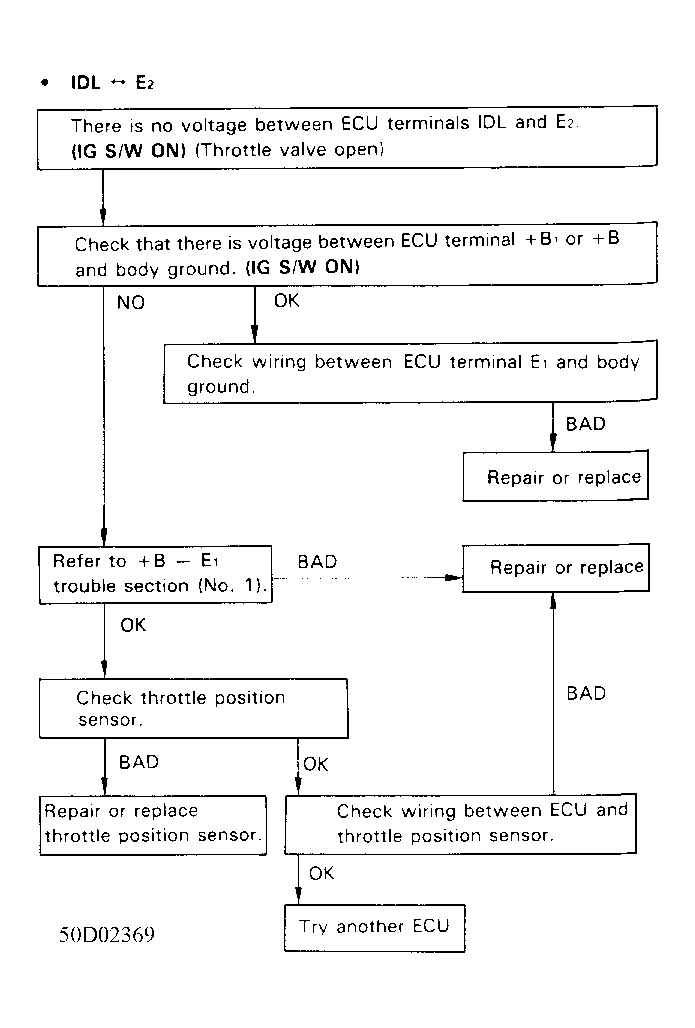

Fig 3: No. 8 Test, Code 41, TPS Signal, Flow Chart (1 of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

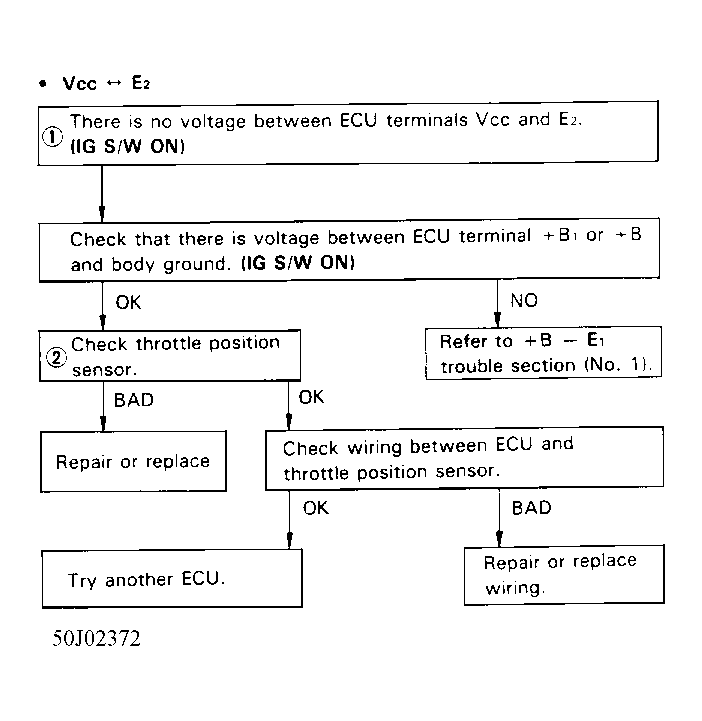

Fig 4: No. 8 Test, Code 41, TPS Signal, Flow Chart (2 of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

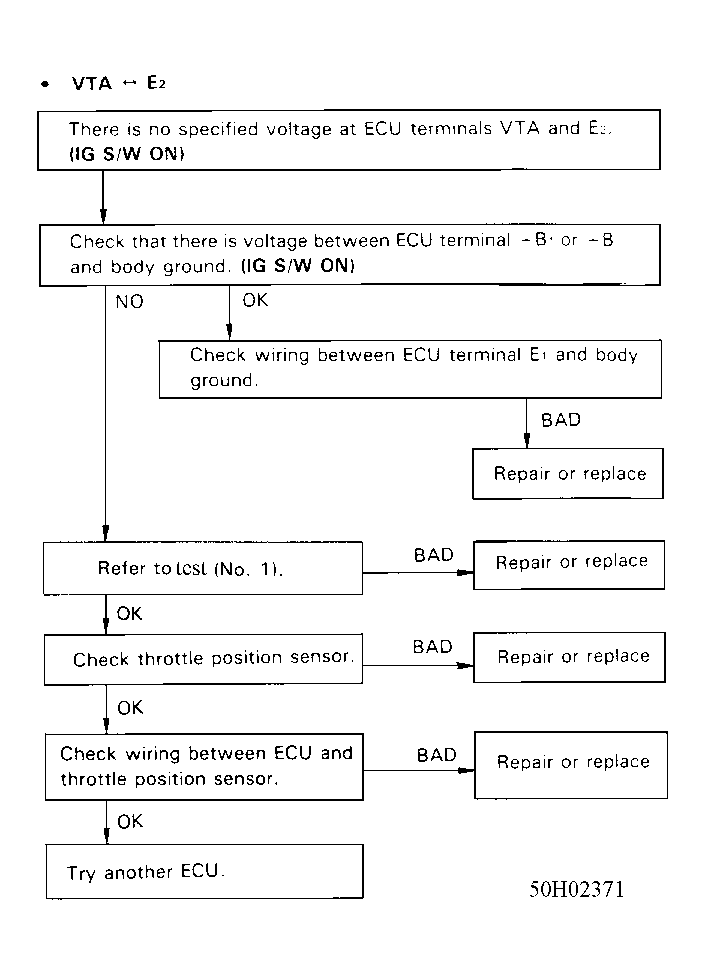

Fig 5: No. 8 Test, Code 41, TPS Signal, Flow Chart (3 of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
