Pick-Up Coil Resistance Test

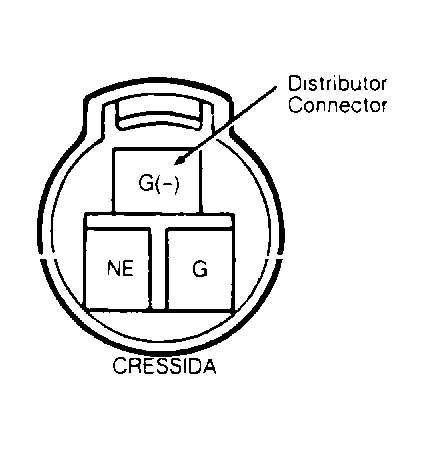

- On Cressida, measure pick-up coil resistance between terminals "G" and "G(-)", and between "NE" and "G(-)". See Fig 1.
- If resistance is incorrect, remove ignition coil (if equipped) and replace distributor assembly.
TOYOTA PICK-UP COIL RESISTANCE
| Application | Ohms |
|---|---|
| Cressida | 140-180 |
