No. 6 Test, Coolant Temp. Sensor Signal

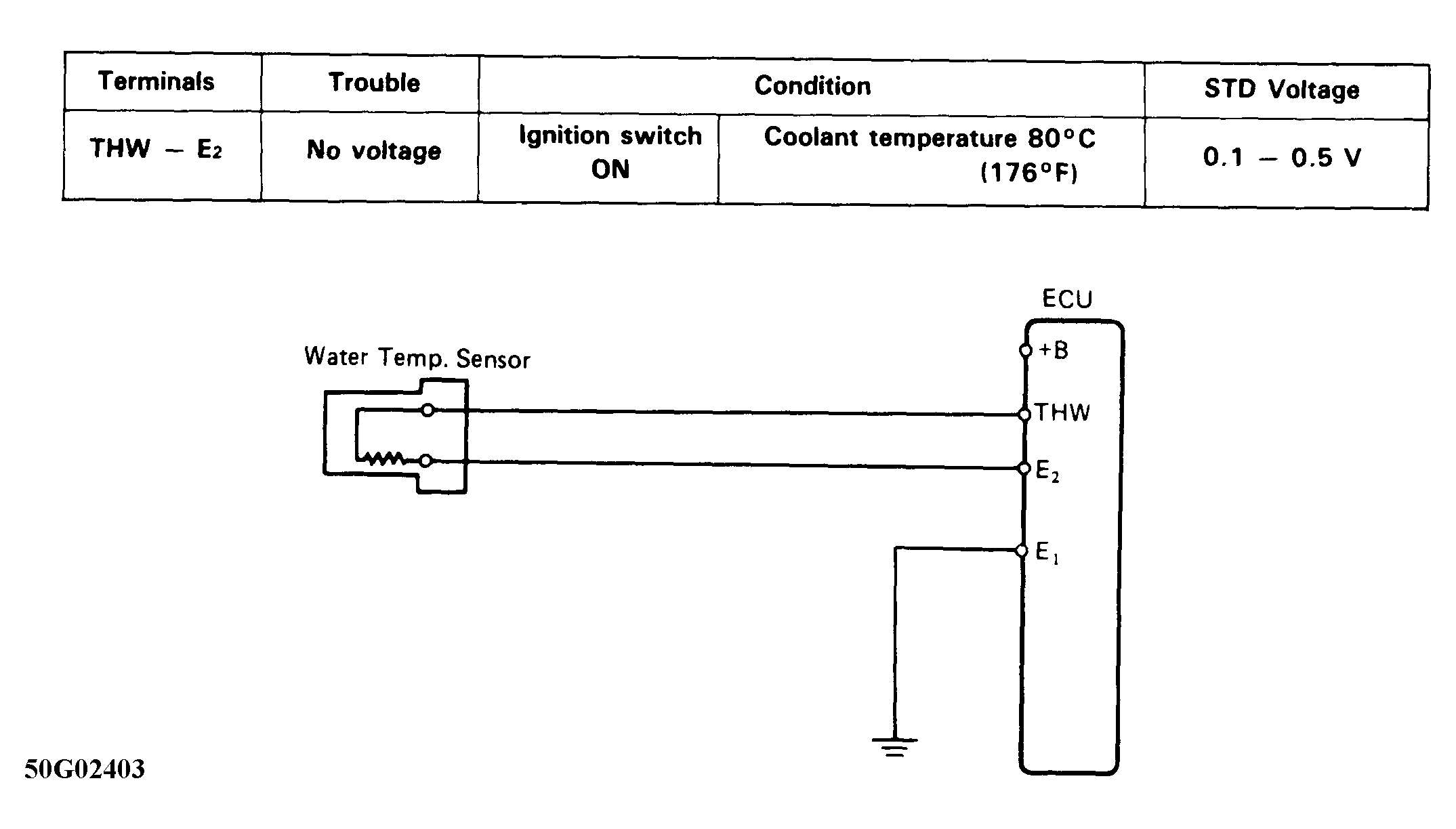

Fig 1: No. 6 Test, Coolant Temp. Sensor Signal, Schematic

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

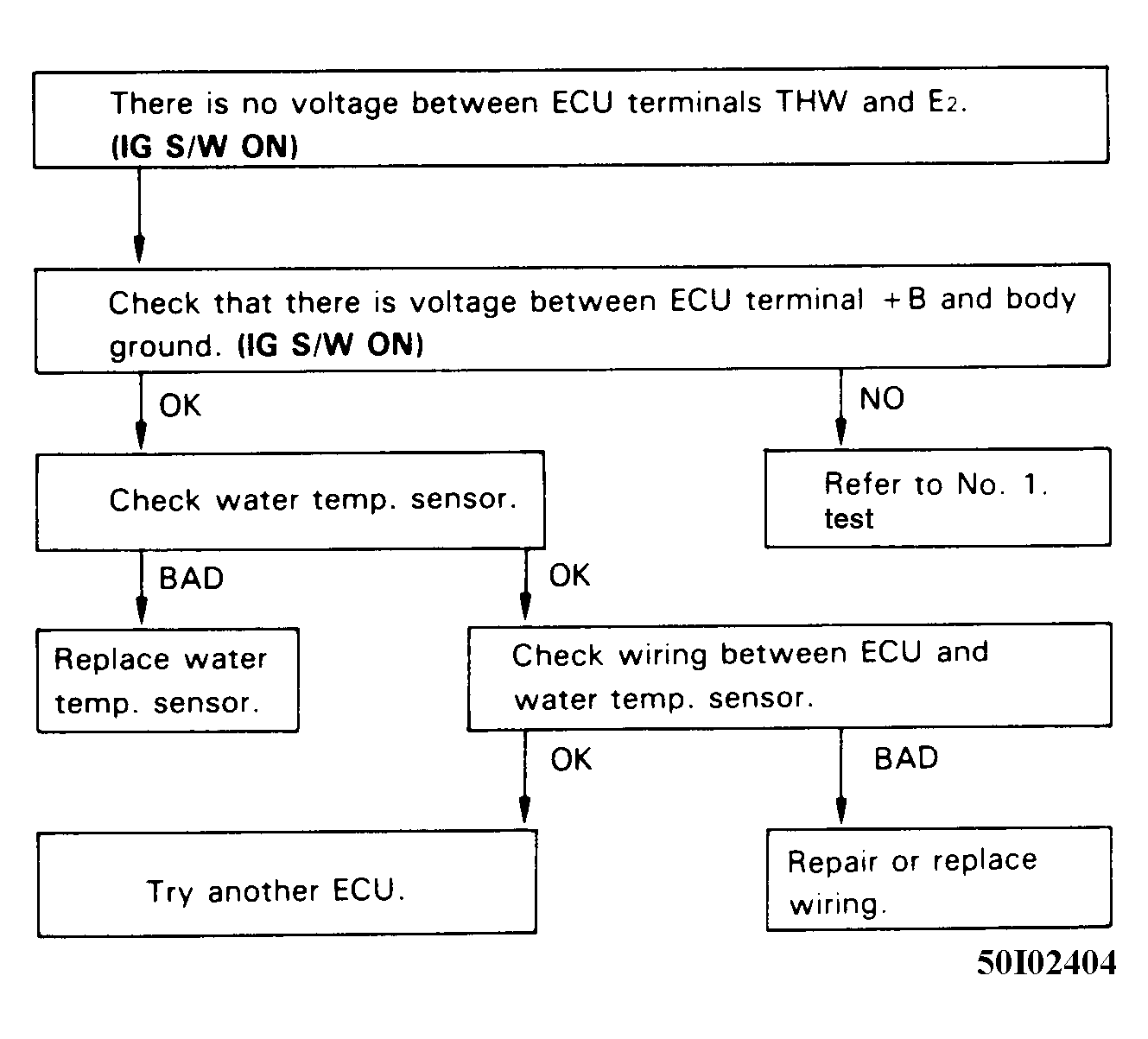

Fig 2: No. 6 Test, Coolant Temp. Sensor Signal, Flow Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
