Home >> Toyota >> 1988 >> Cressida >> Repair and Diagnosis >> Engine Performance >> System >> Computer Control System >> Ecu Connector I.D.

Ecu Connector I.D.

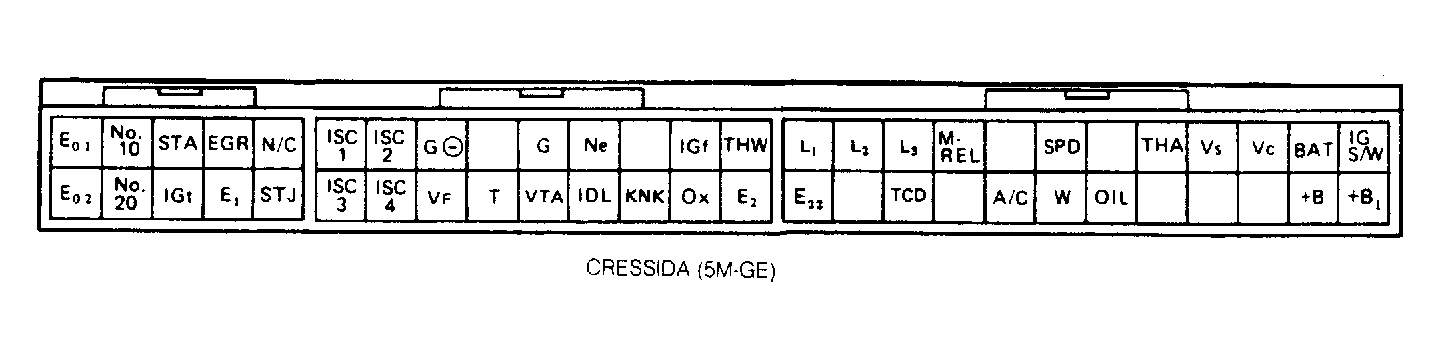

Fig 1: 5M-GE ECU Connector Pin Identification

G95240

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
