No. 16 Test, ISC Valve Circuit Test
No. 16 Test, ISC Valve Circuit Test

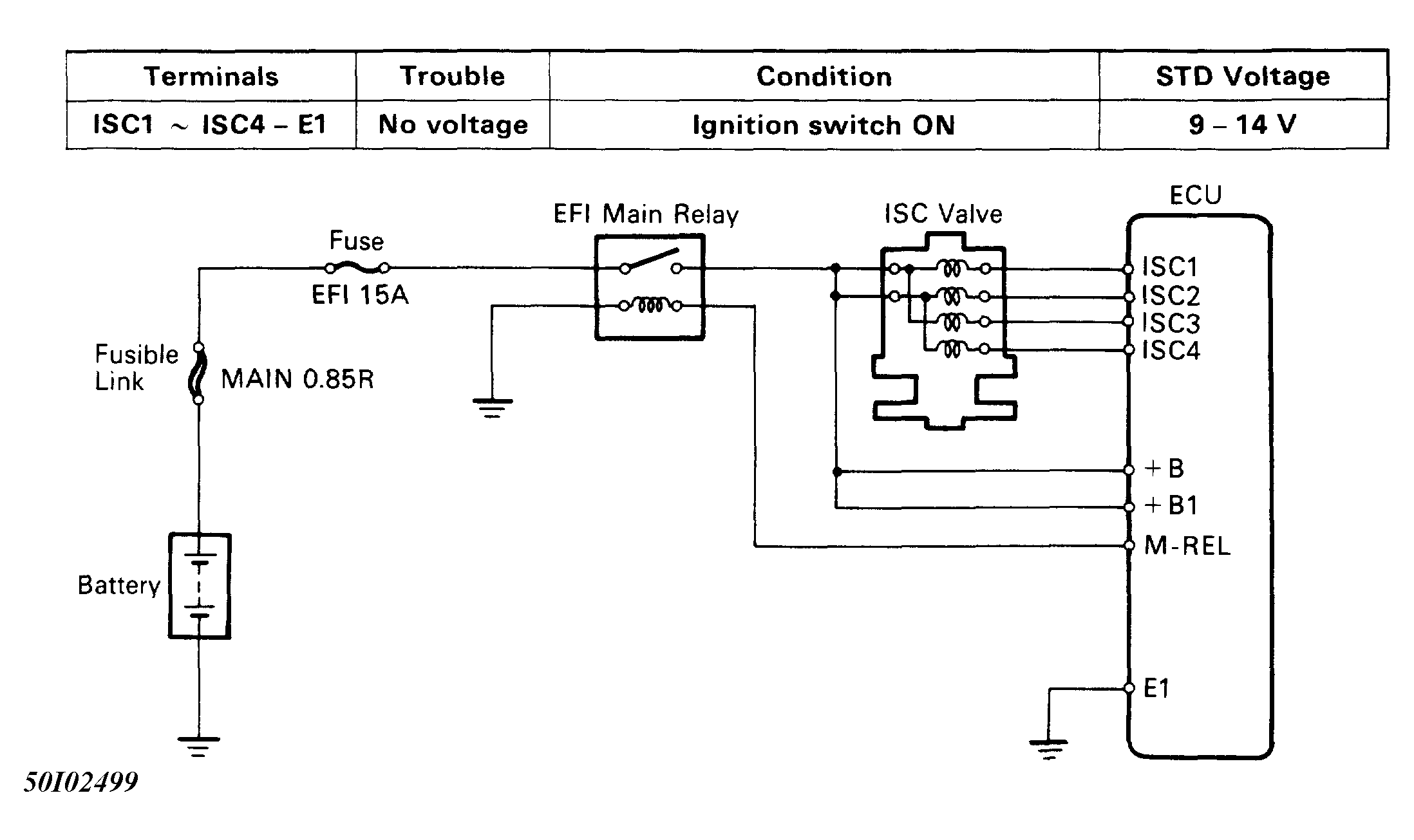

Fig 1: No. 16 Test, ISC Valve Circuit Test, Schematic
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

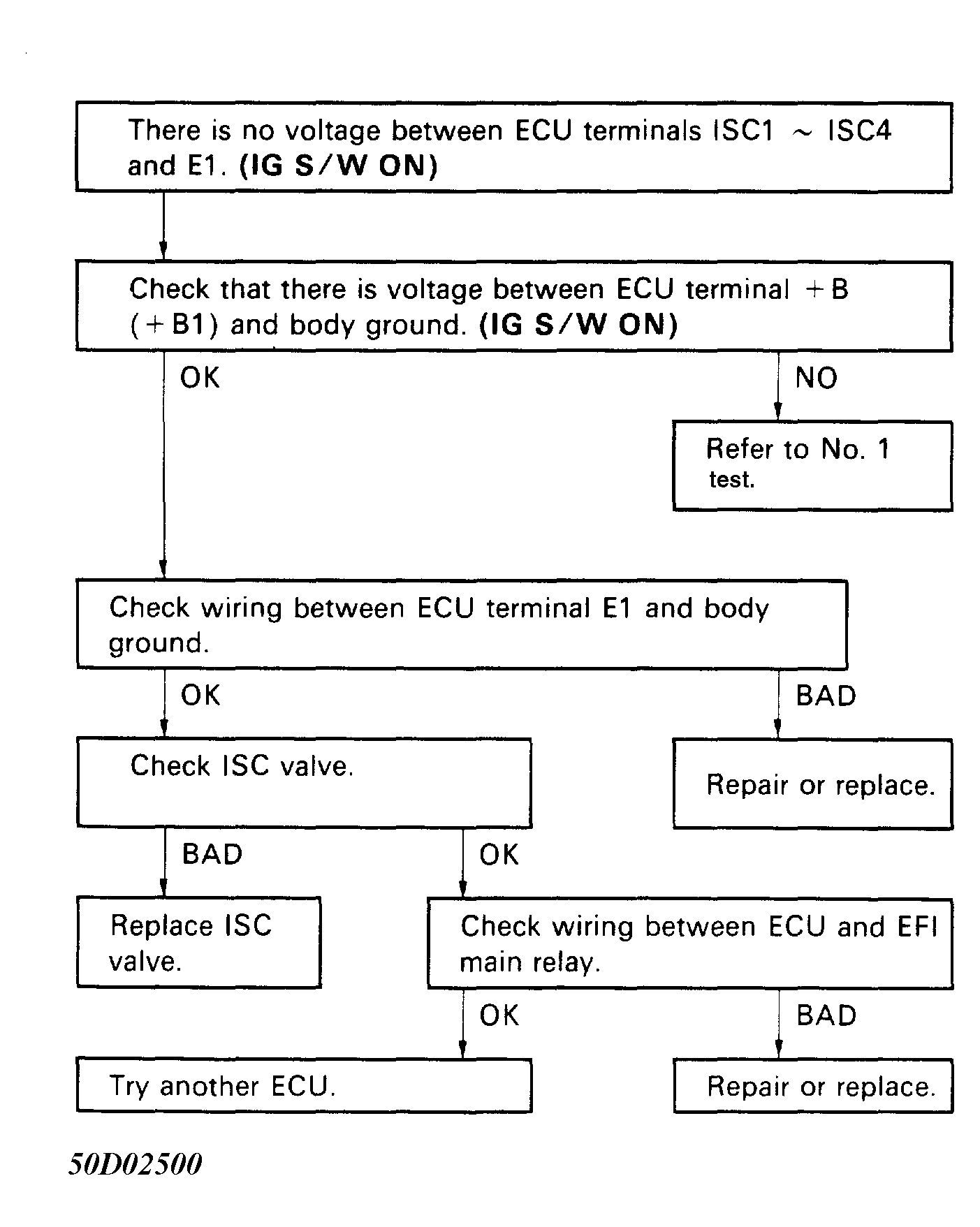

Fig 2: No. 16 Test, ISC Valve Circuit Test, Flow Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
