No. 8 Test, Code 41 (Code 7 On Turbo), TPS Sensor Signal

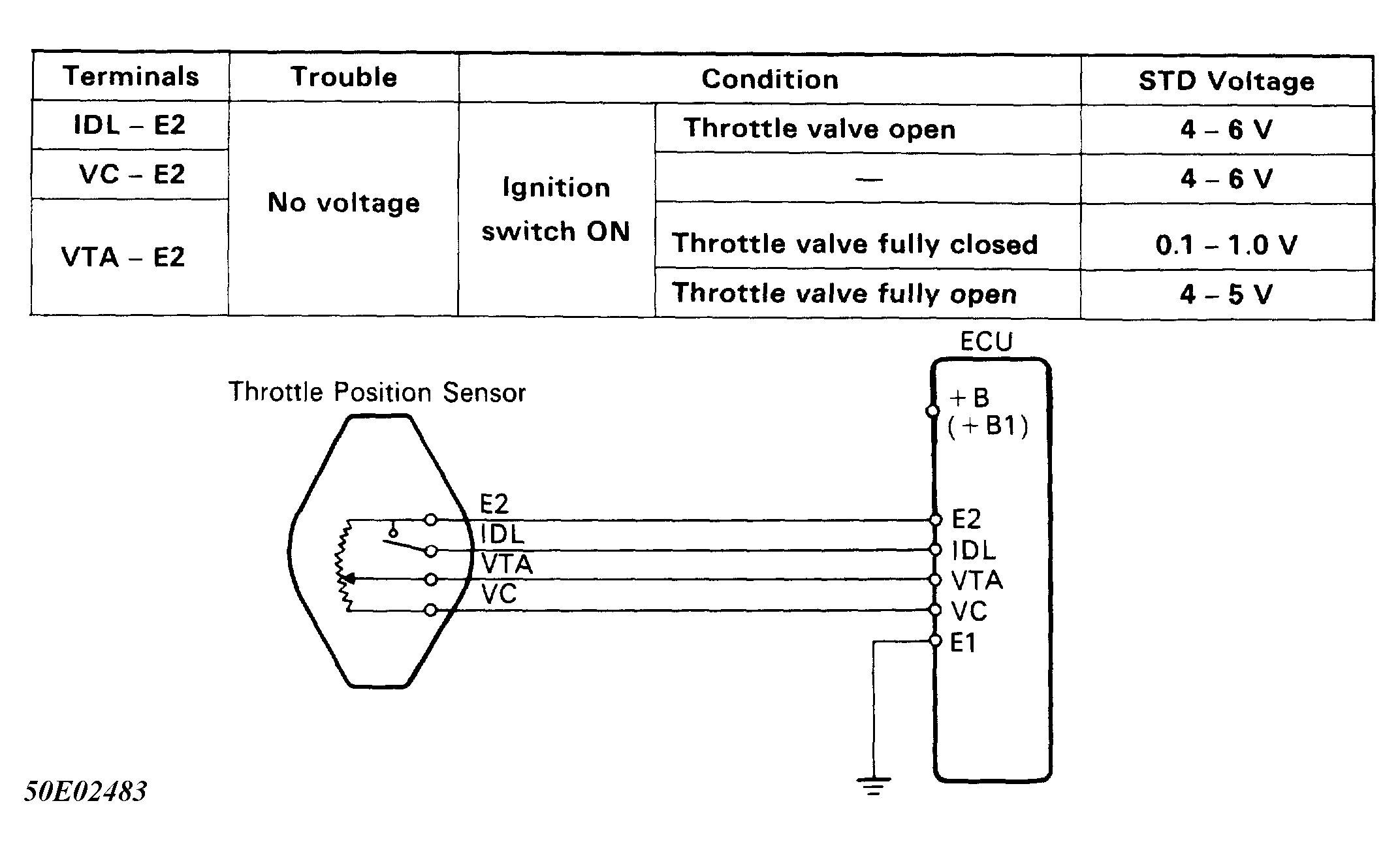

Fig 1: No. 8 Test, Code 41 (Code 7 on Turbo) Schematic, TPS Sensor Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

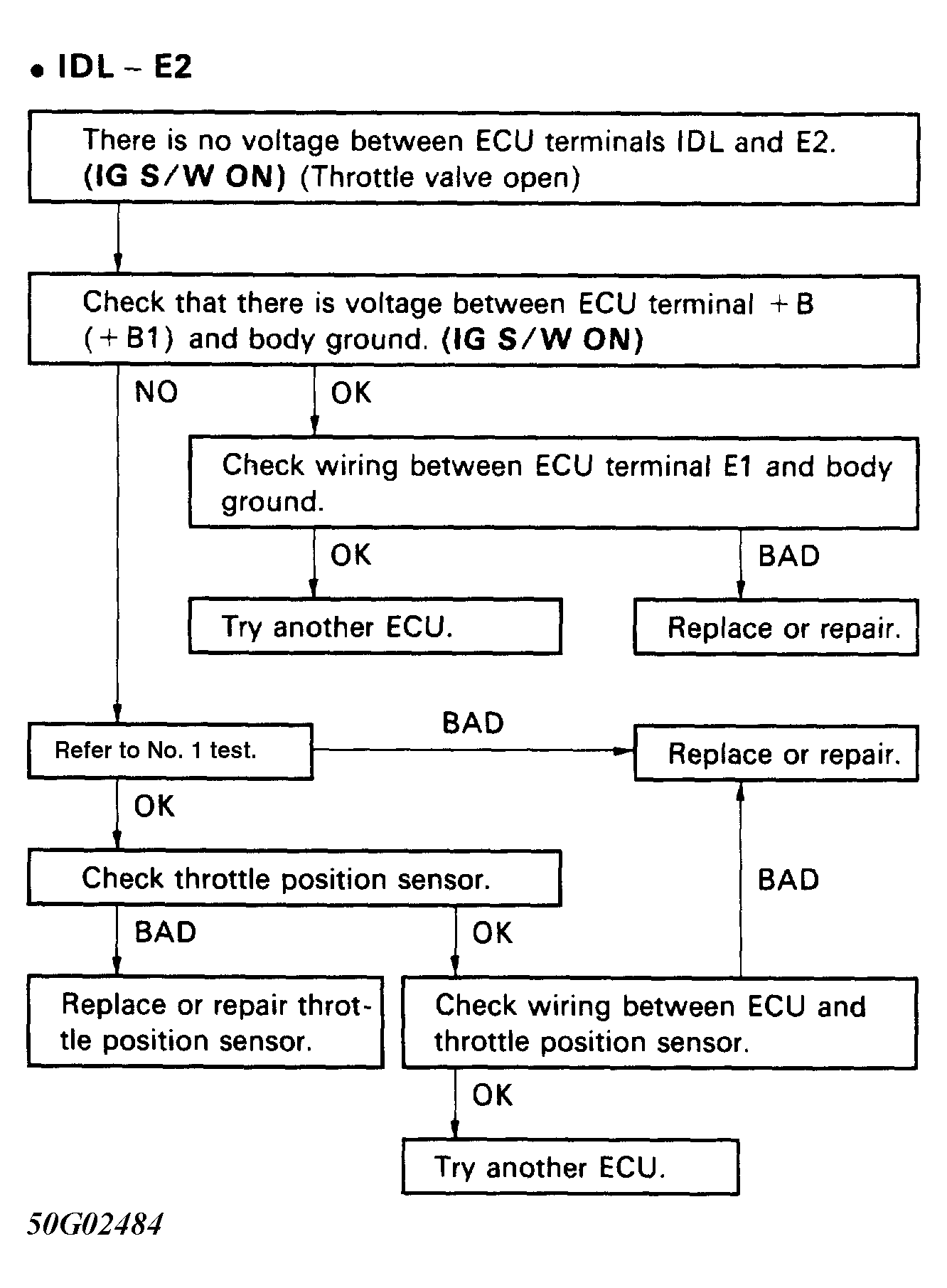

Fig 2: No. 8 Test, Code 41 (Code 7 on Turbo) Flow Chart (1 of 3), TPS Sensor Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

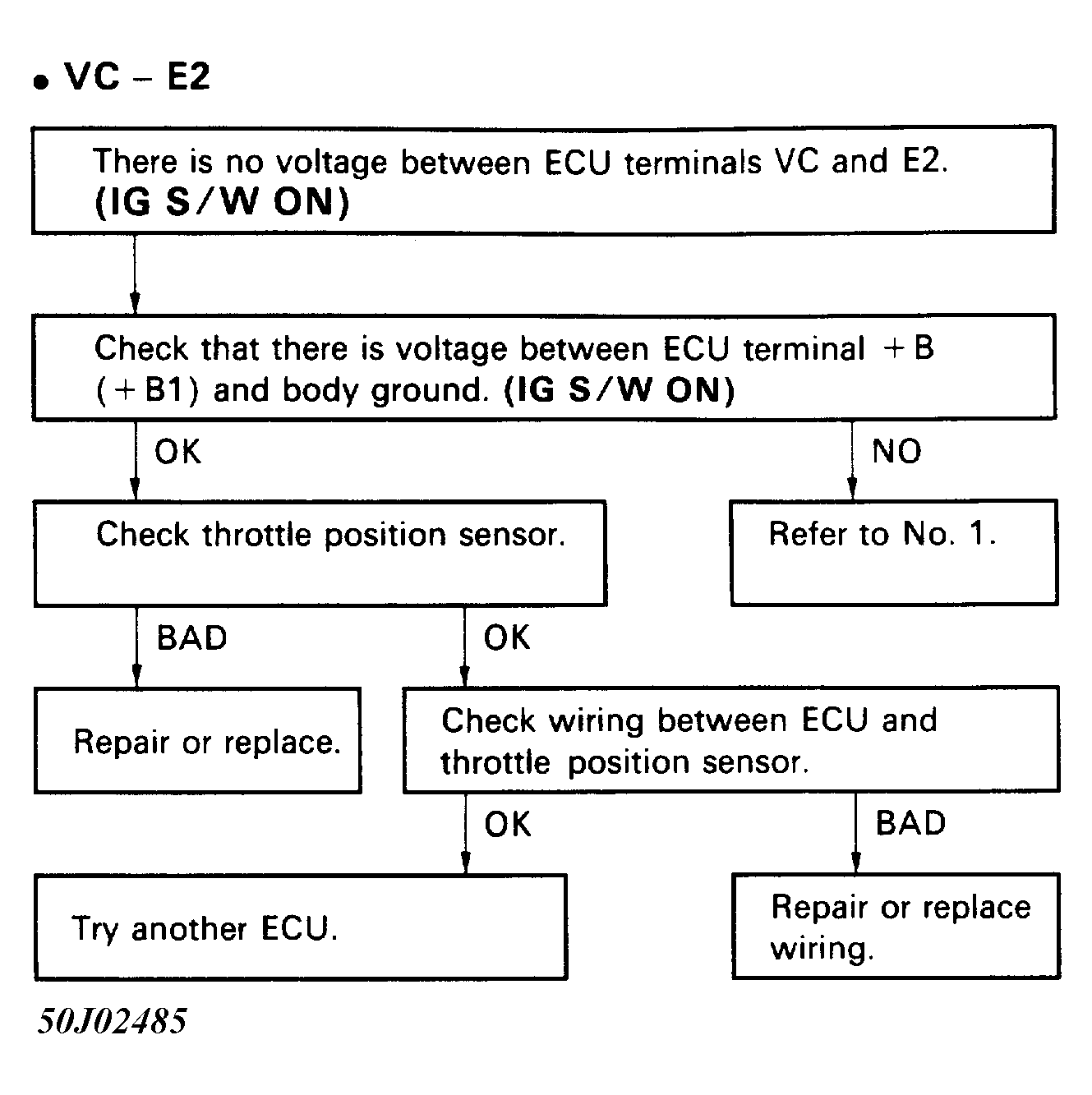

Fig 3: No. 8 Test, Code 41 (Code 7 on Turbo) Flow Chart (2 of 3), TPS Sensor Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

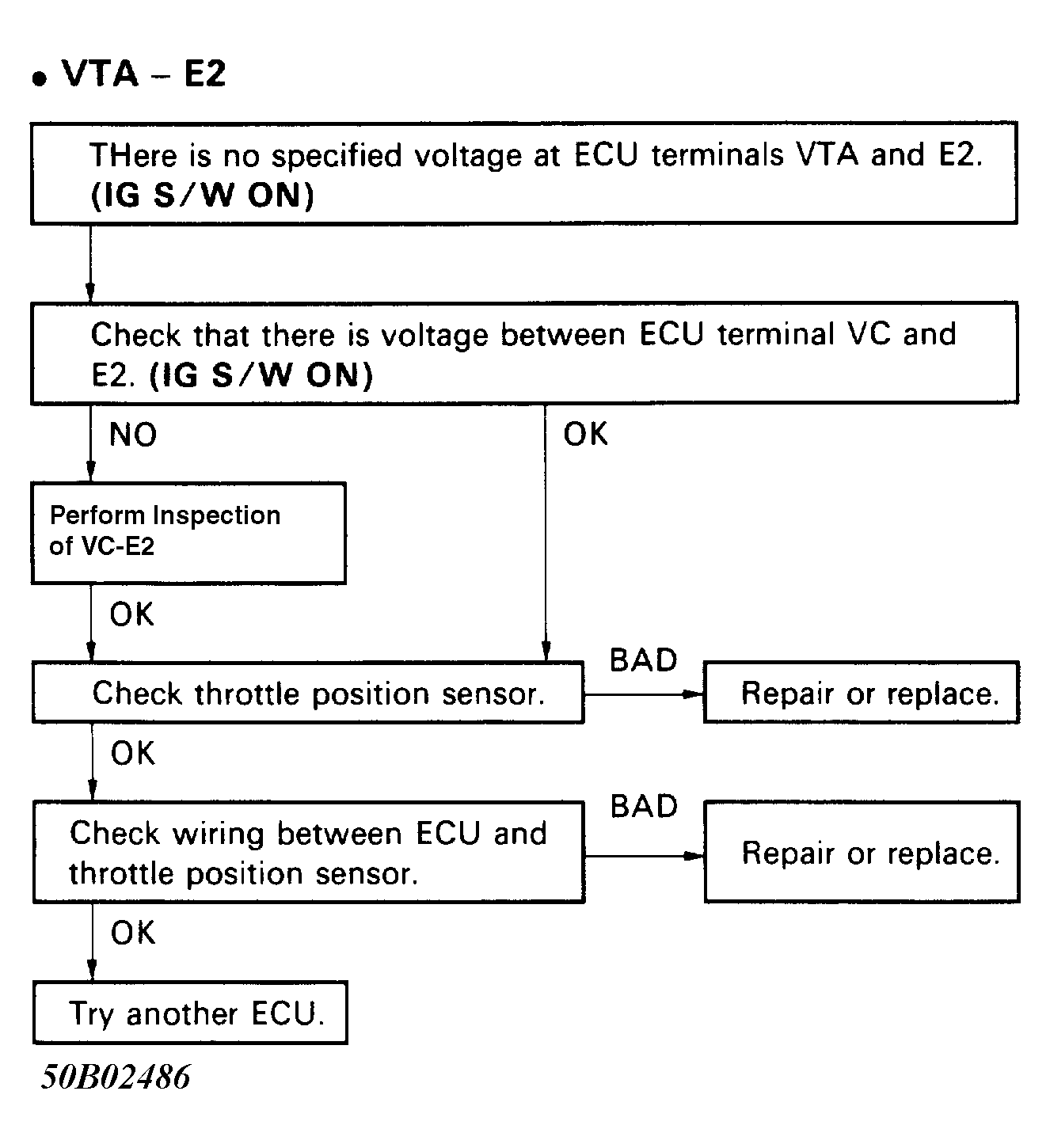

Fig 4: No. 8 Test, Code 41 (Code 7 on Turbo) Flow Chart (3 of 3), TPS Sensor Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

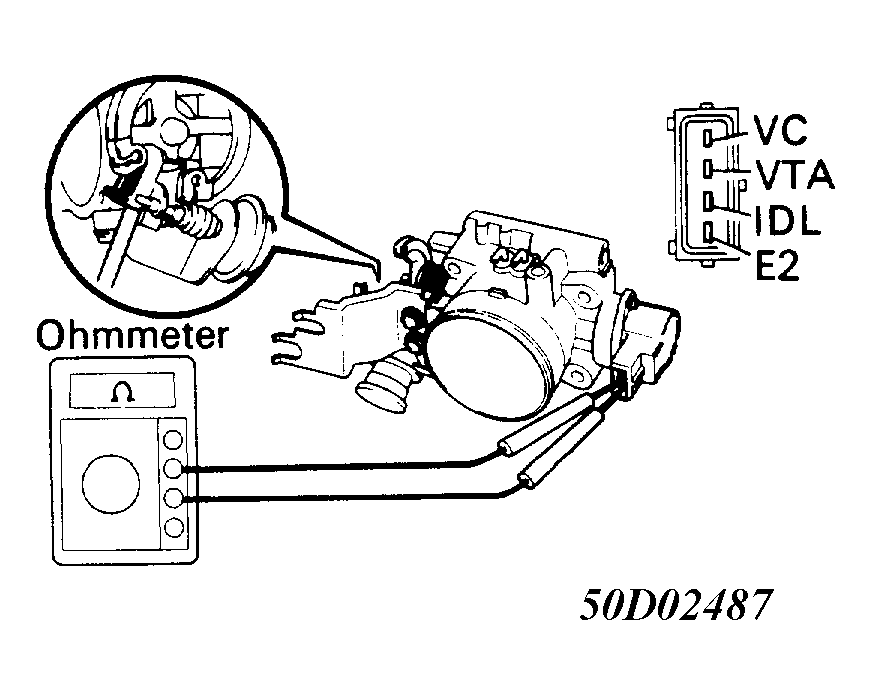

Fig 5: No. 8 Test, Code 41 (Code 7 on Turbo) TPS Sensor Check

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
