Diagnostic Circuit Check

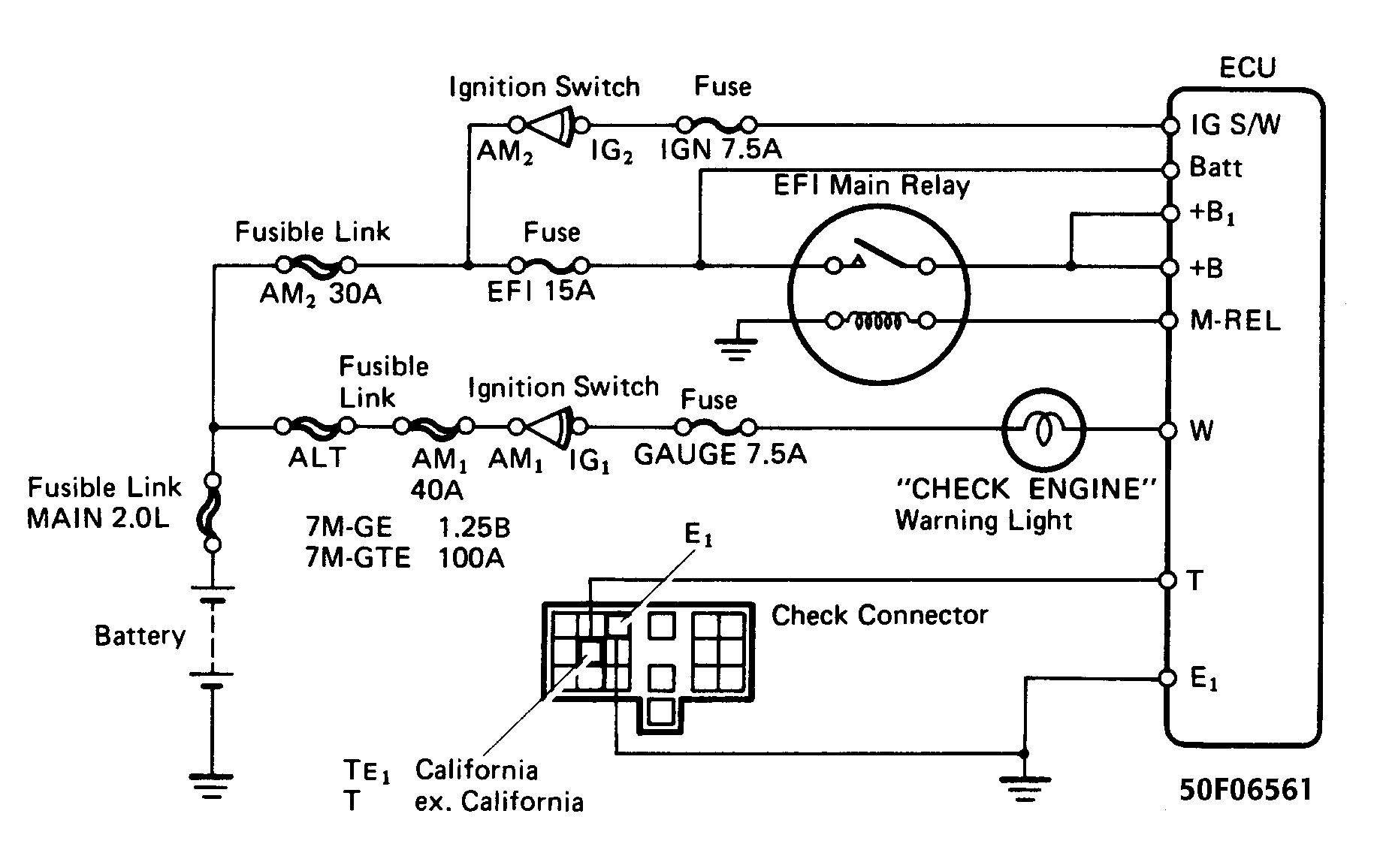

Fig 1: Diagnostic Circuit Check, Schematic
G50F06561Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

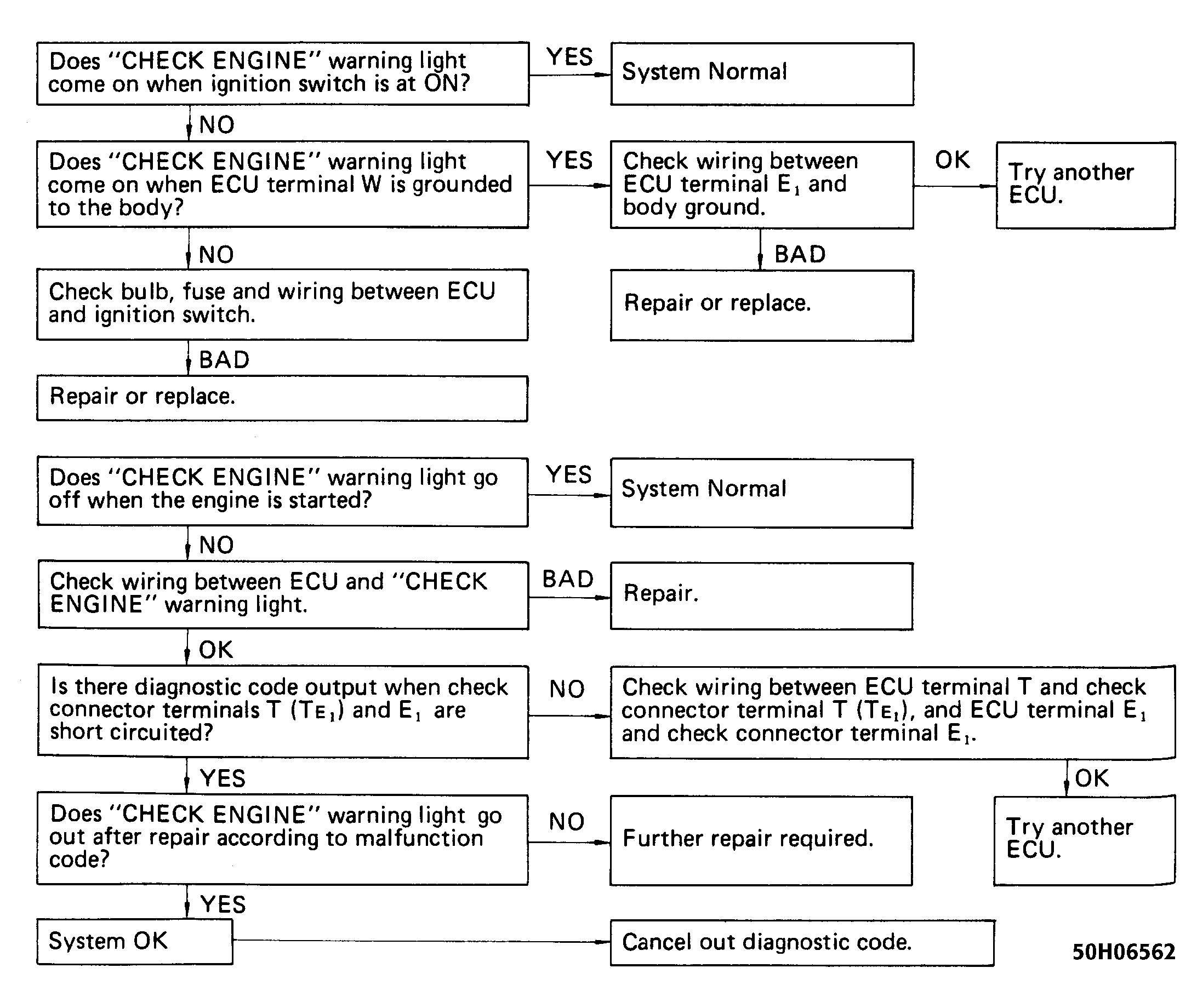

Fig 2: Diagnostic Circuit Check, Flow Chart
G50H06562Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
