No. 12 Test, ISC Valve Circuit

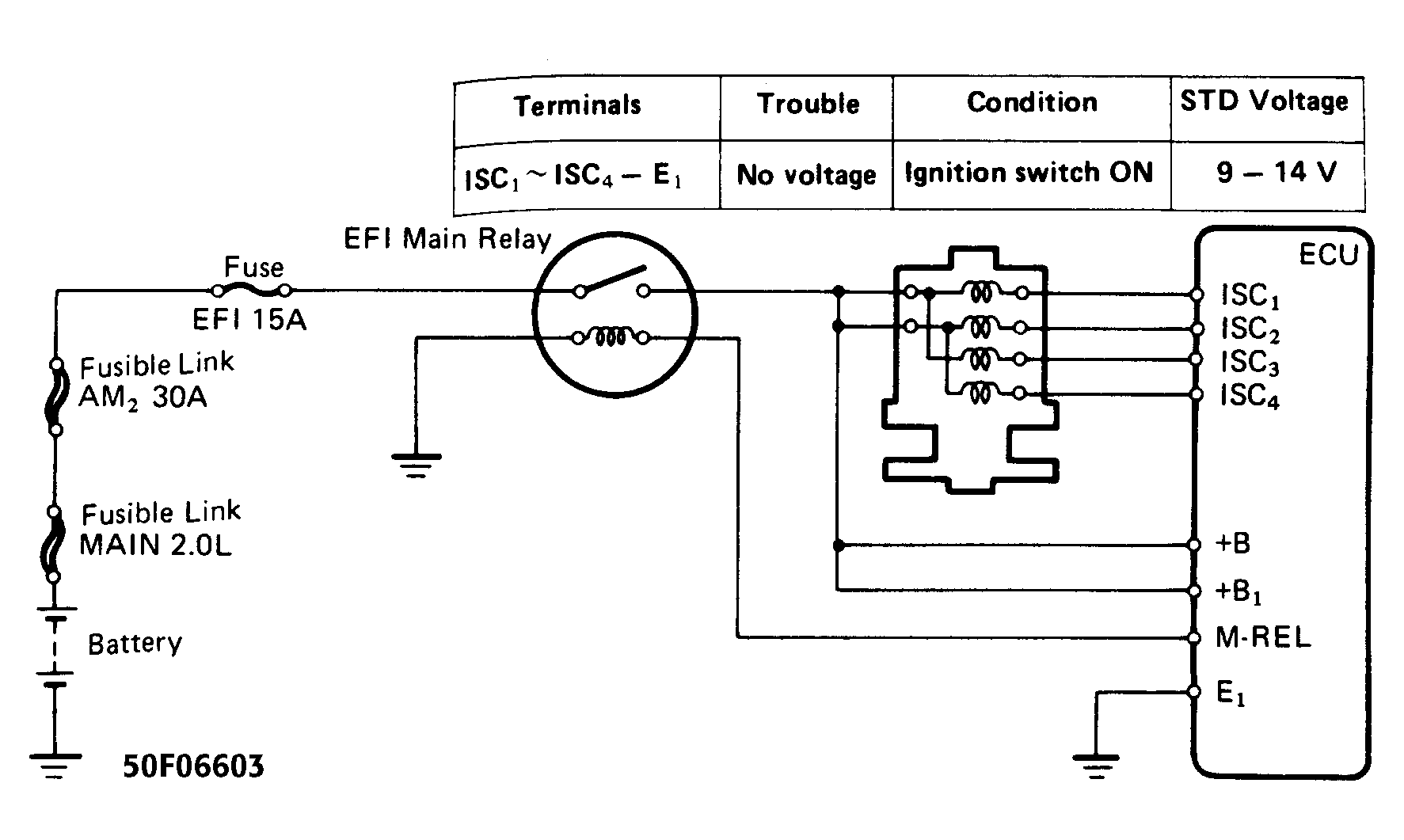

Fig 1: No. 12 Test Schematic, ISC Valve Circuit
G50F06603Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

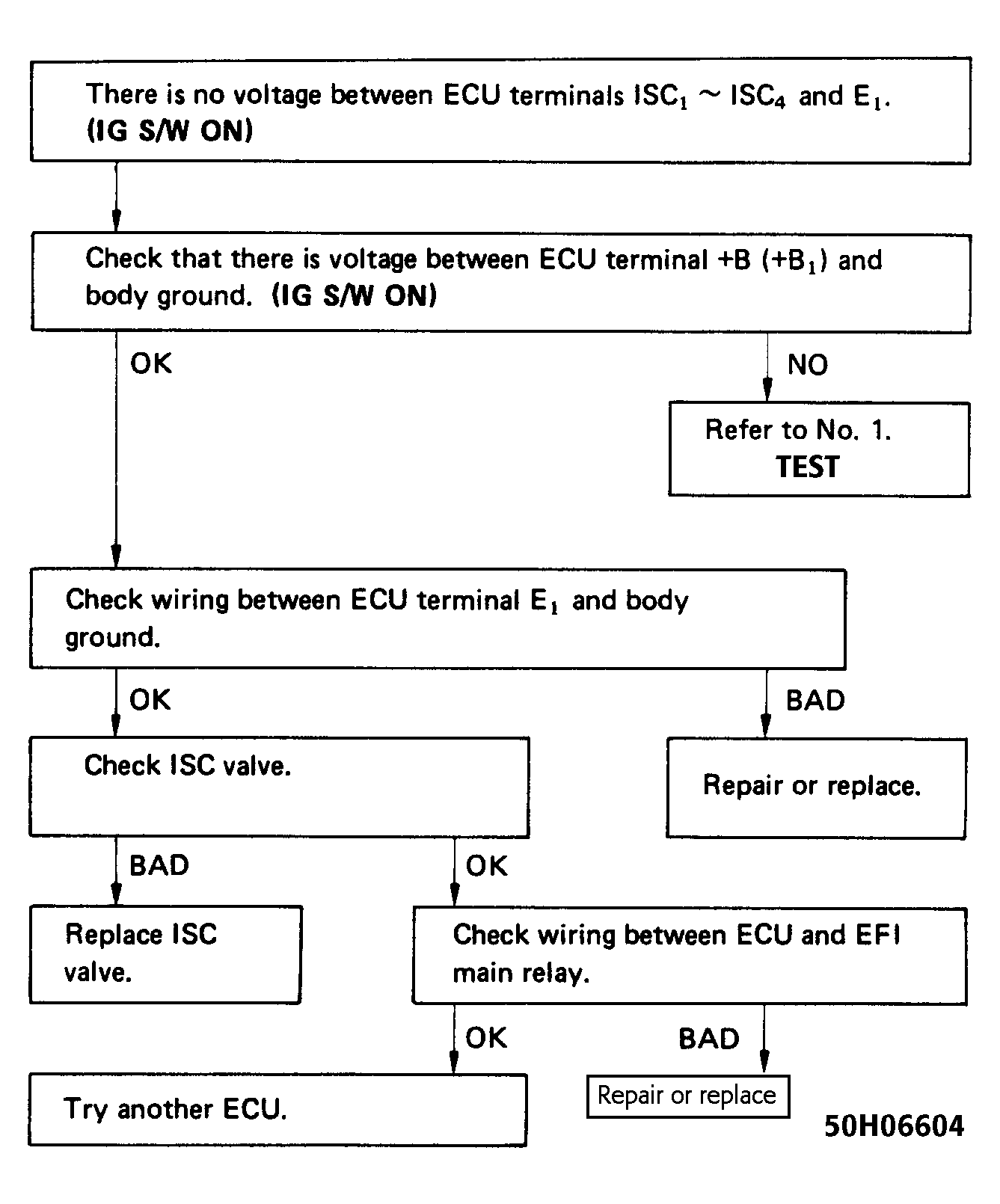

Fig 2: No. 12 Test Flow Chart, ISC Valve Circuit
G50H06604Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

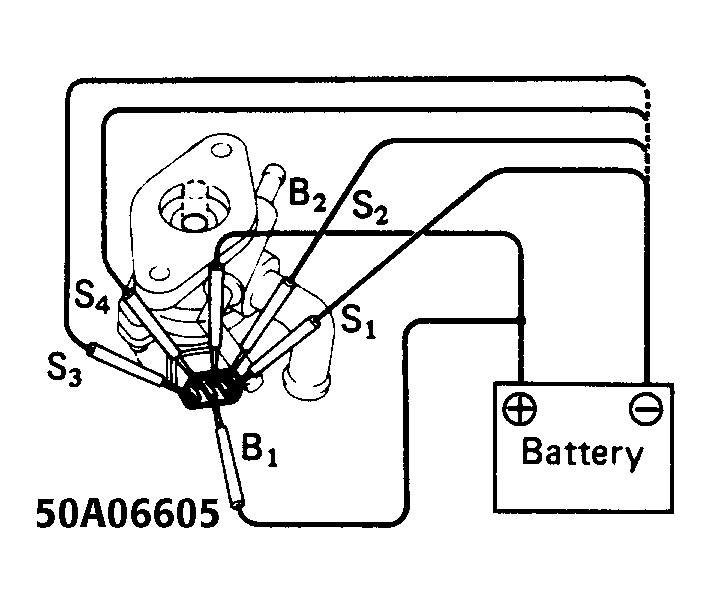

Fig 3: No. 12 Test, ISC Valve Check
G50A06605Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
