No. 15 Test, HAC Sensor

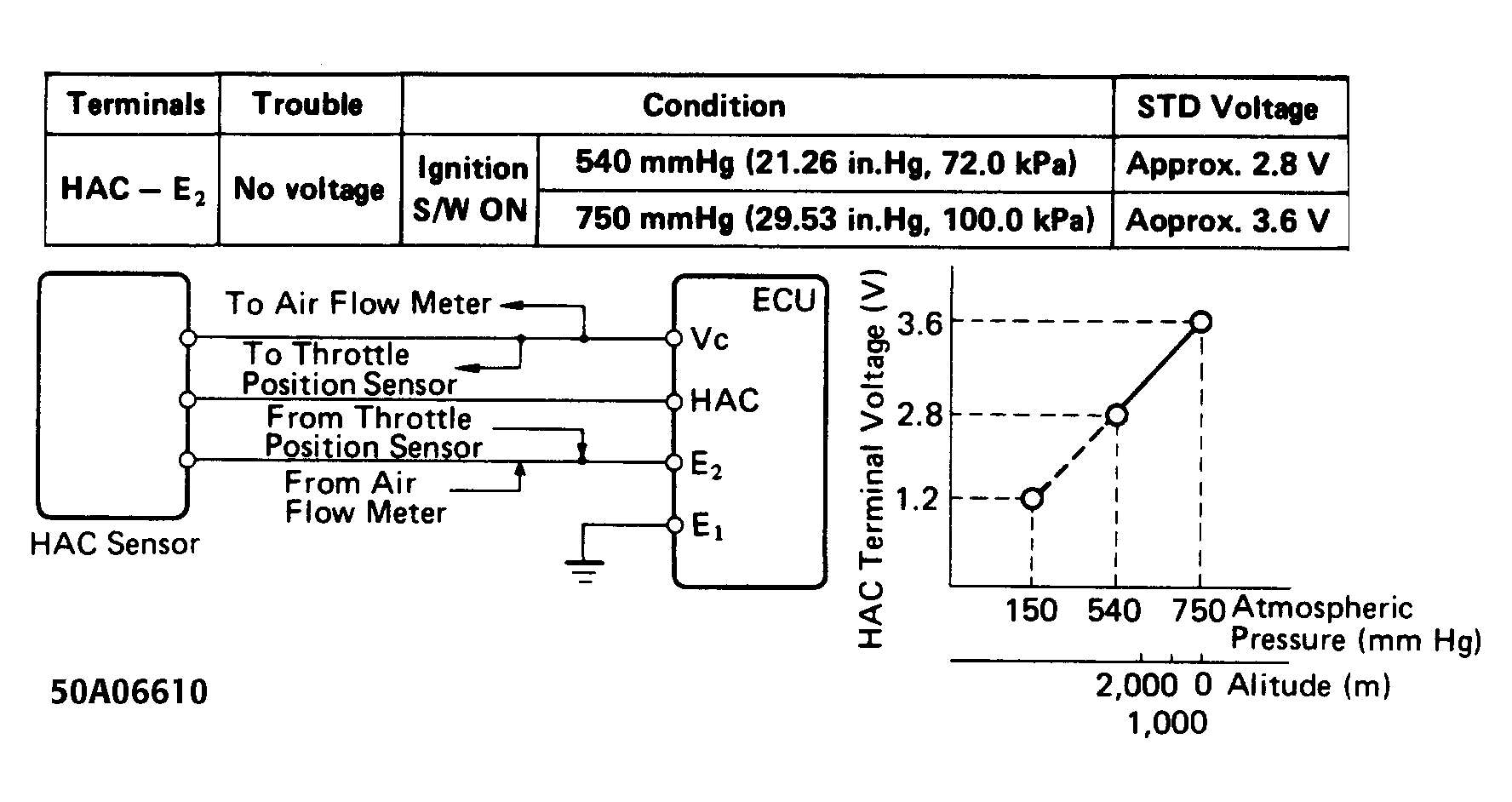

Fig 1: No. 15 Test Schematic, HAC Sensor (Turbo)
G50A06610Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

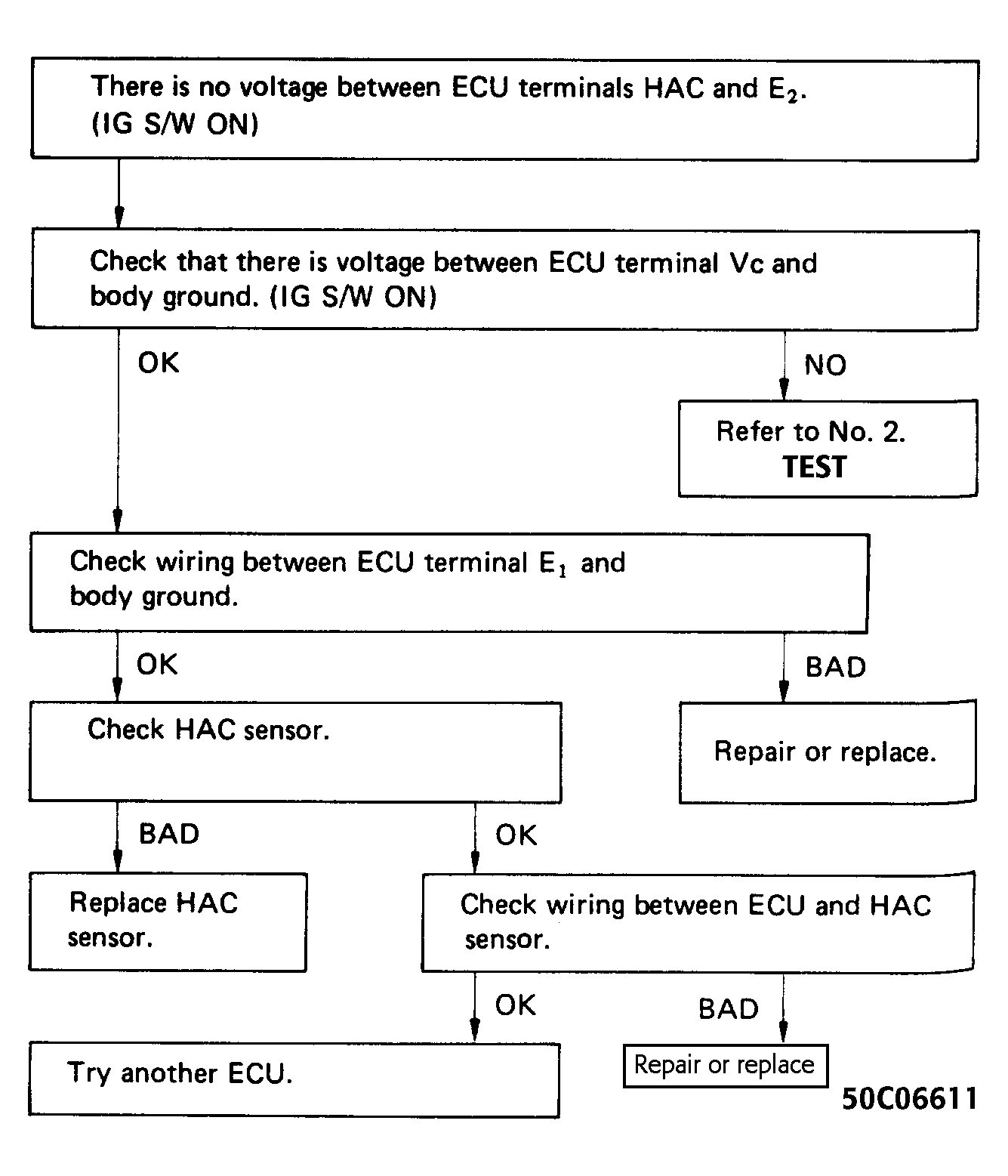

Fig 2: No. 15 Test Flow Chart, HAC Sensor (Turbo)
G50C06611Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

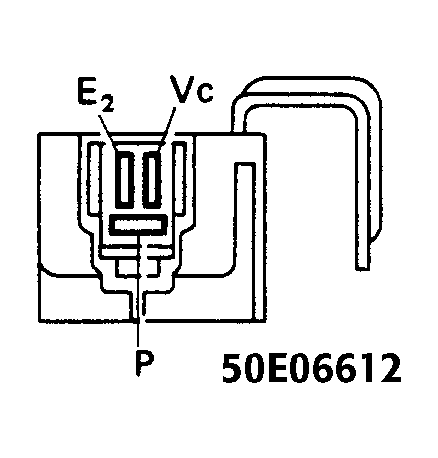

Fig 3: No. 15 Test, HAC Sensor Check (Turbo)
G50E06612Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
