No. 6 Test, Code 41, Throttle Position Sensor Signal

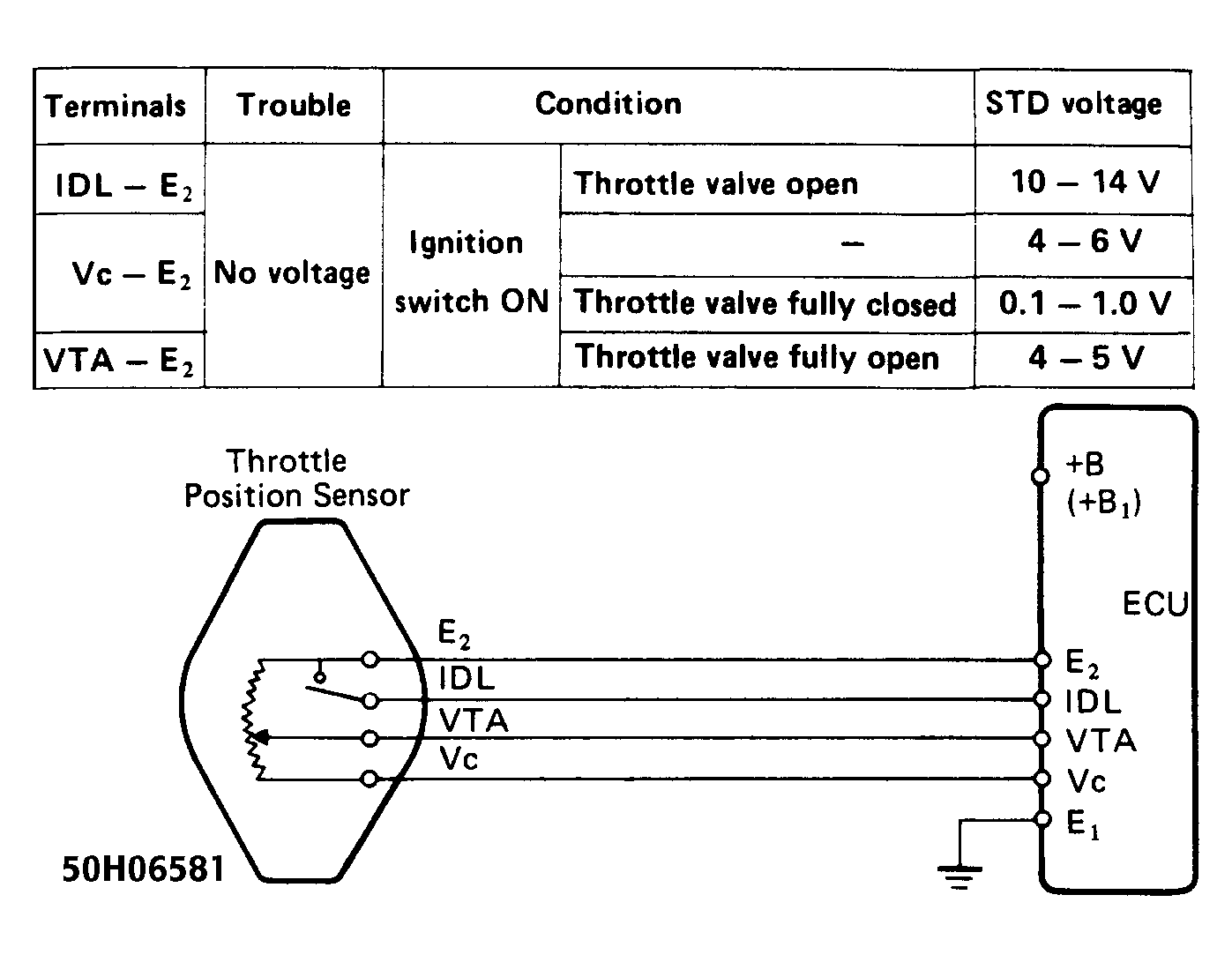

Fig 1: No. 6 Test, Code 41 Schematic, TP Sensor Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

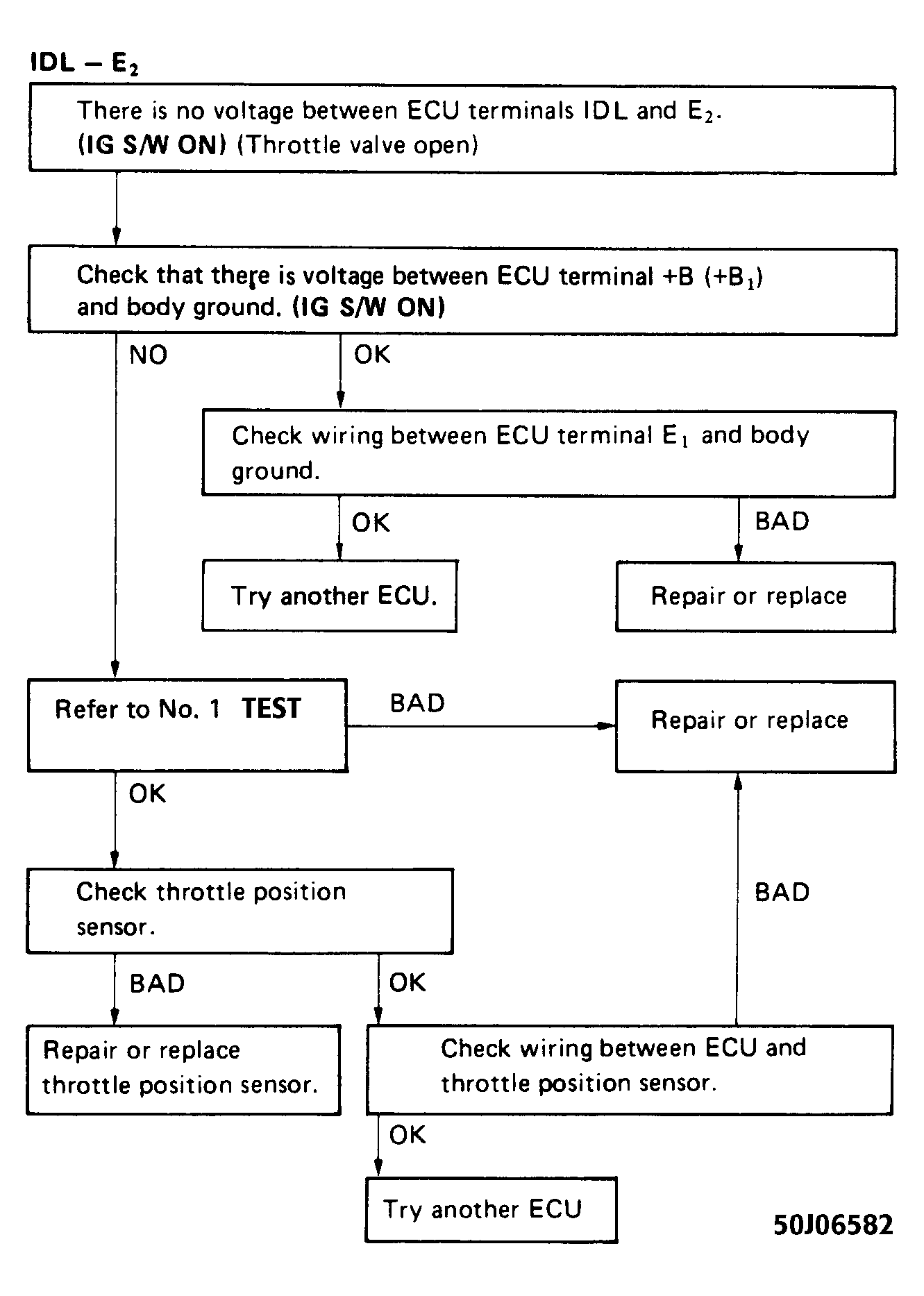

Fig 2: No. 6 Test, Code 41 Flow Chart (1 Of 3), TP Sensor Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

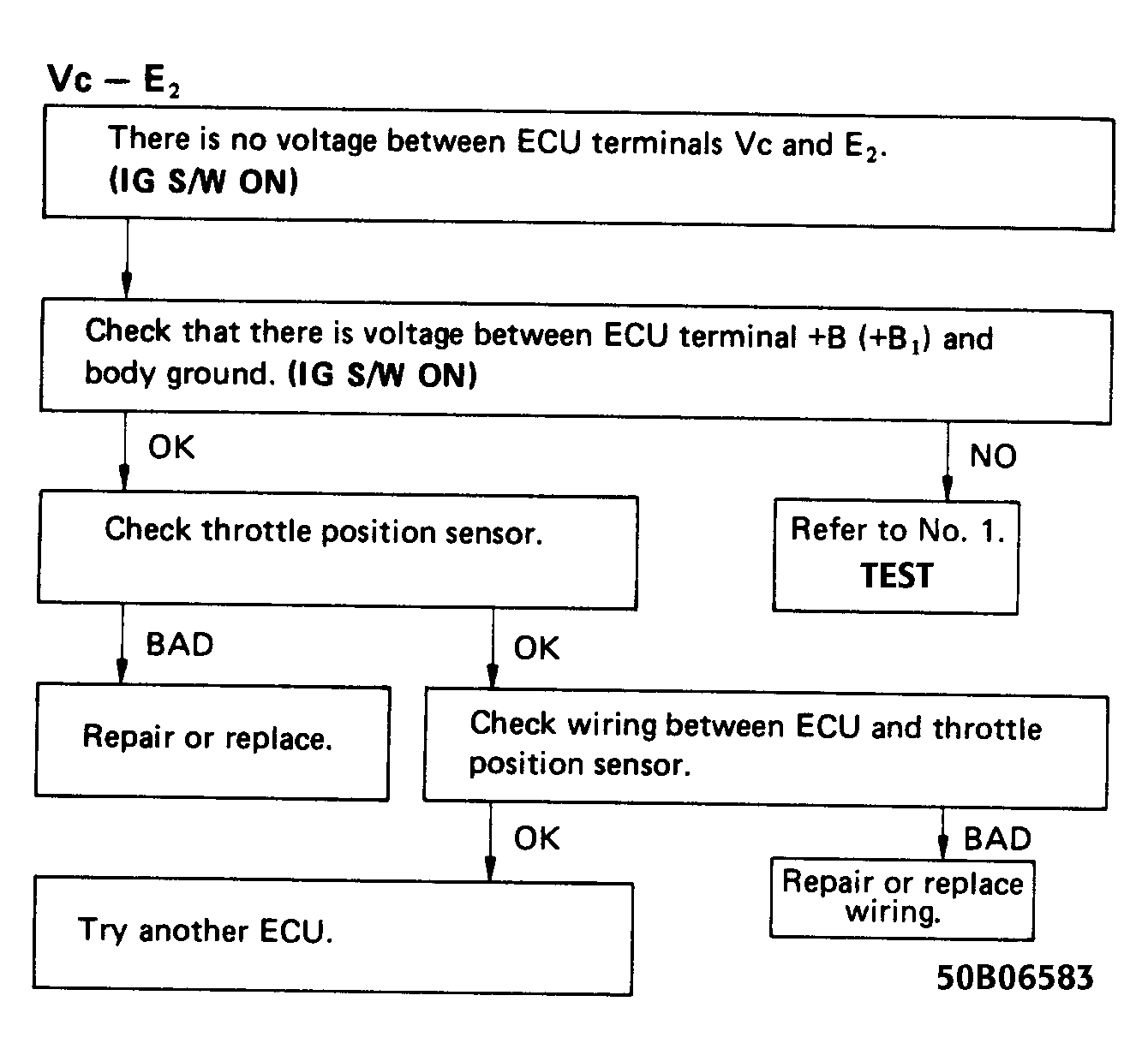

Fig 3: No. 6 Test, Code 41 Flow Chart (2 Of 3), TPS Sensor Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

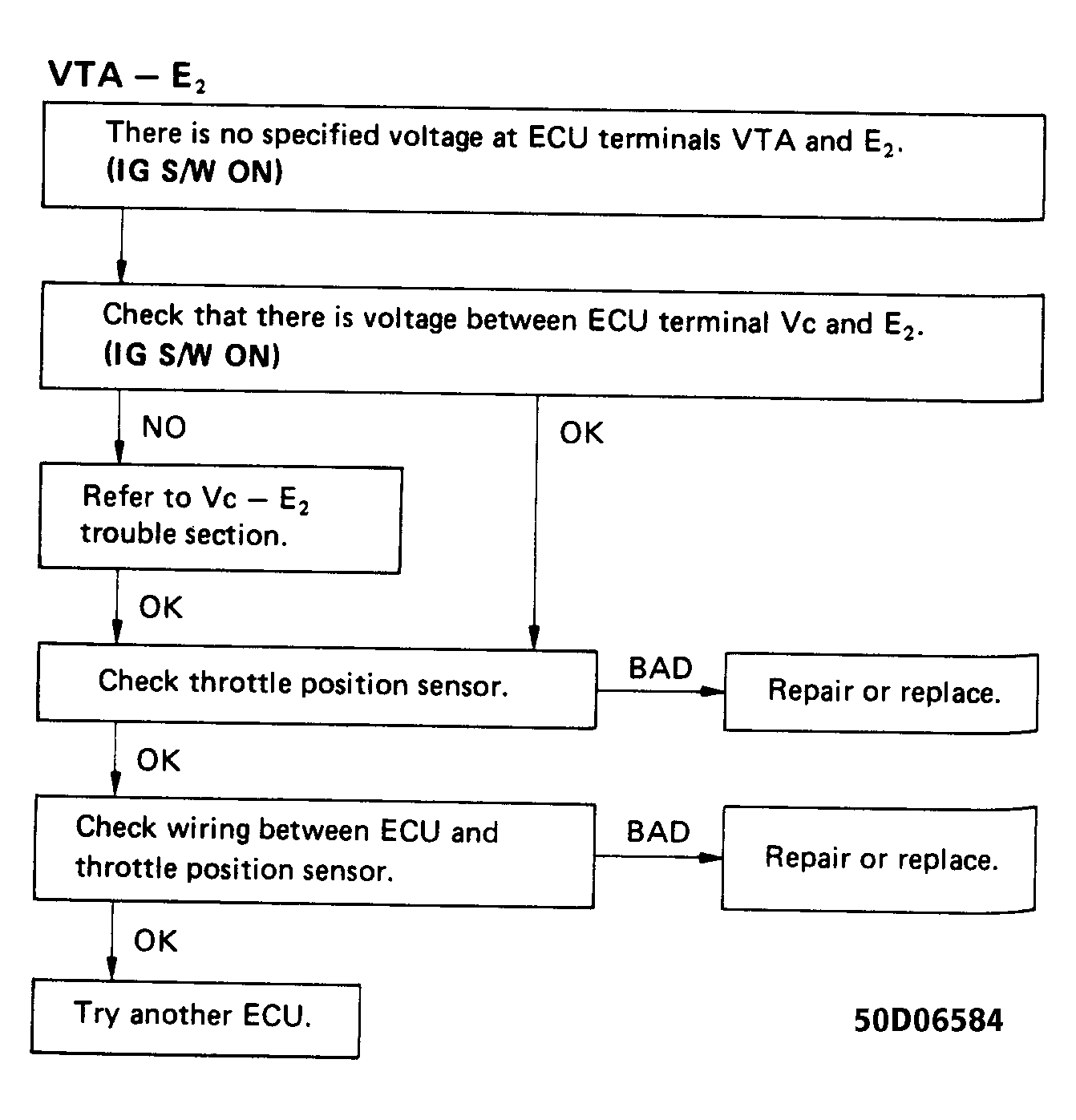

Fig 4: No. 6 Test, Code 41 Flow Chart (3 Of 3), TP Sensor Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

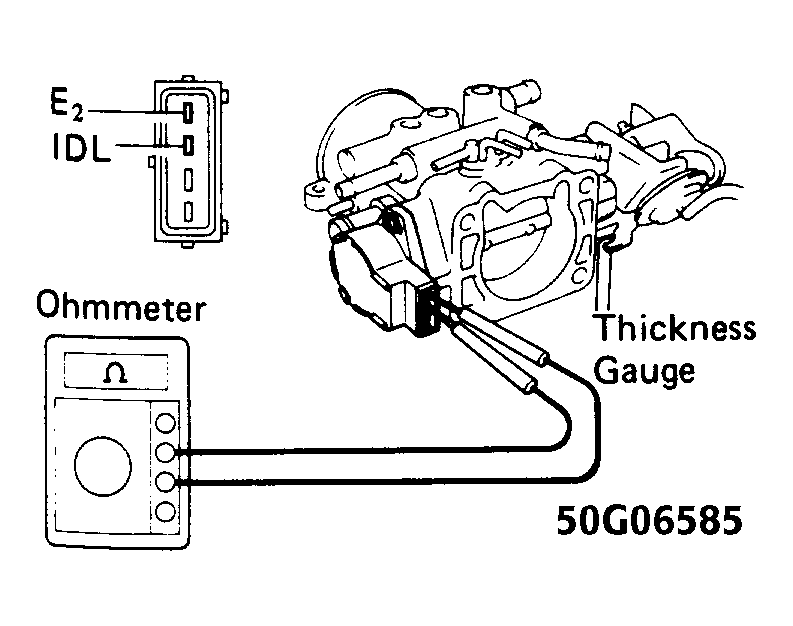

Fig 5: No. 6 Test, Code 41, TP Sensor Check - Terminals E2 & IDL

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

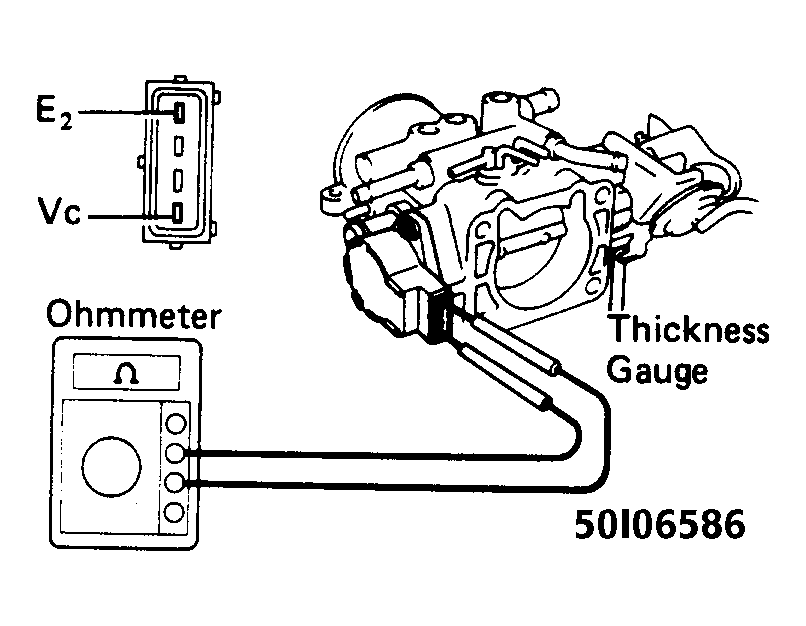

Fig 6: No. 6 Test, Code 41, TP Sensor Check - Terminals E2 & VC

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

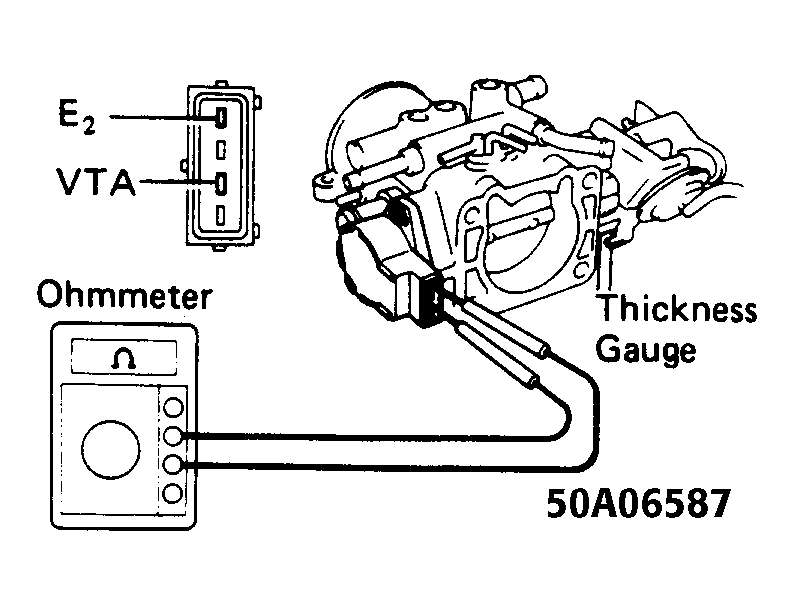

Fig 7: No. 6 Test, Code 41, TP Sensor Check - Terminals E2 & VTA

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
