Toyota
>>
1988
>>
Supra 7M-GE, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Computer Control System
>>
Ecu Connector Identification
Ecu Connector Identification

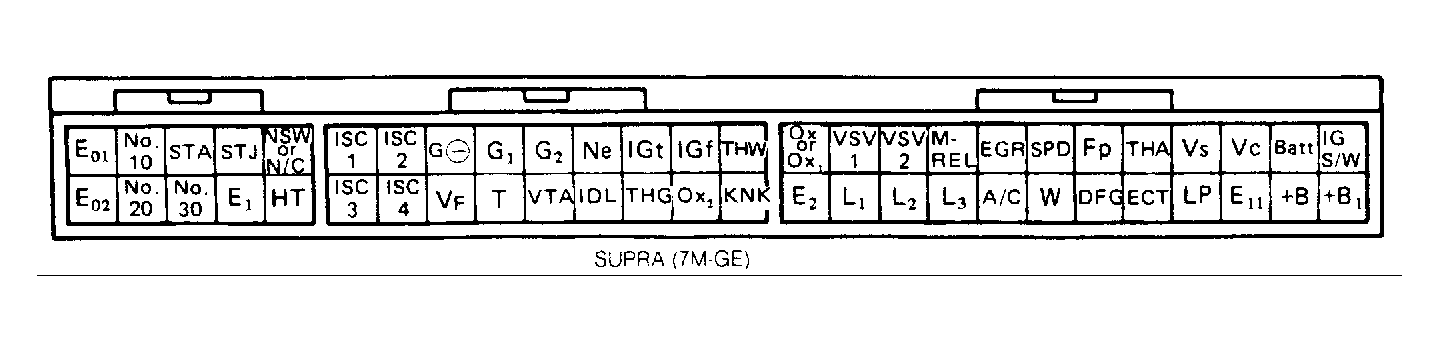

Fig 1: 7M-GE ECU Connector Pin Identification
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

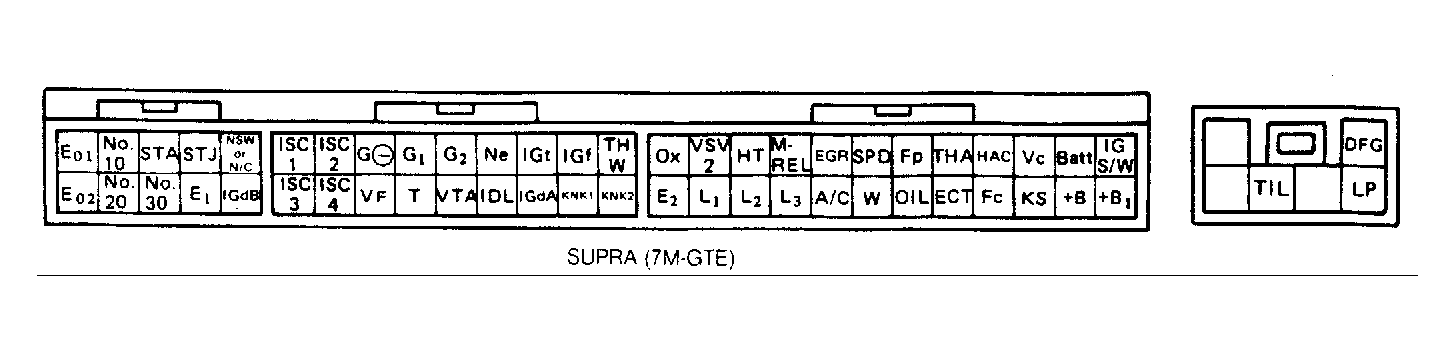

Fig 2: 7M-GTE ECU Connector Pin Identification
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
