Ecu Connector Identification
Ecu Connector Identification

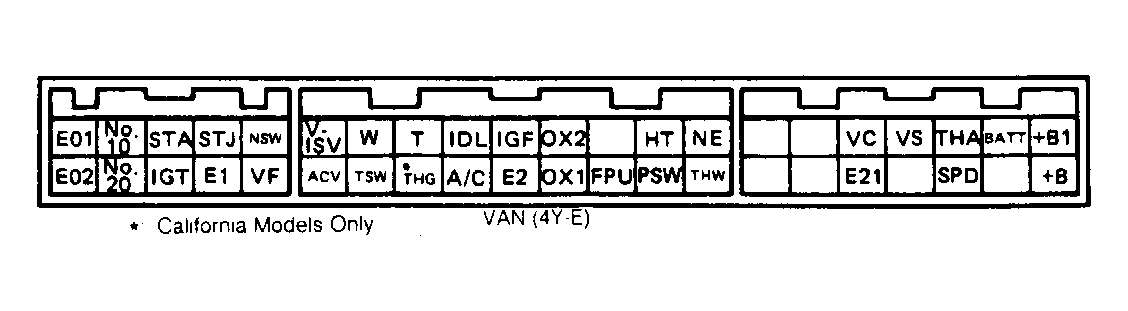

Fig 1: 4Y-E ECU Connector Pin Identification
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
