Home >> Toyota >> 1989 >> Pickup Base >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - System/Component Tests - 4-CYL CARBURETED >> Testing >> Fuel Control Information

Fuel Control Information

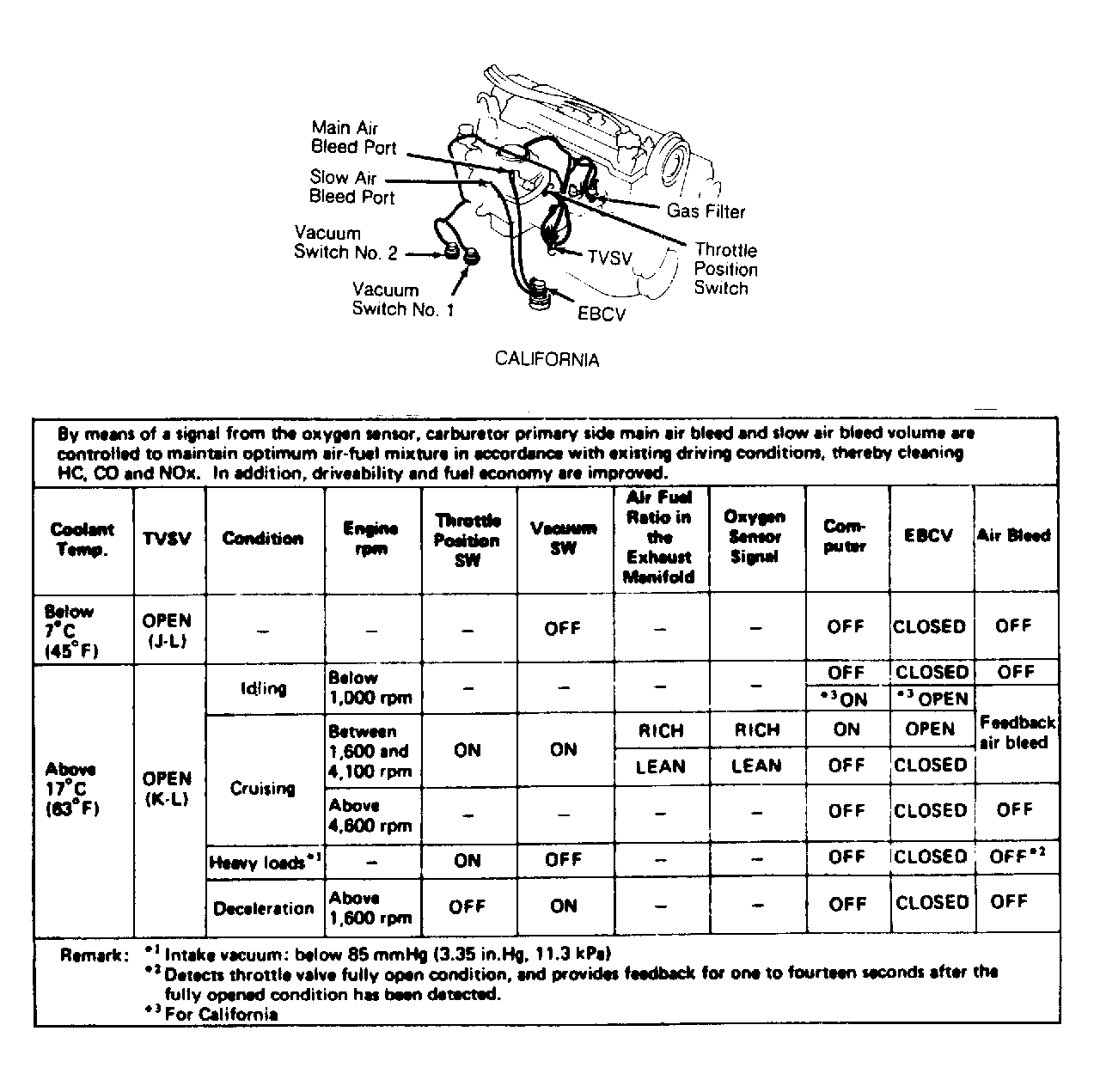

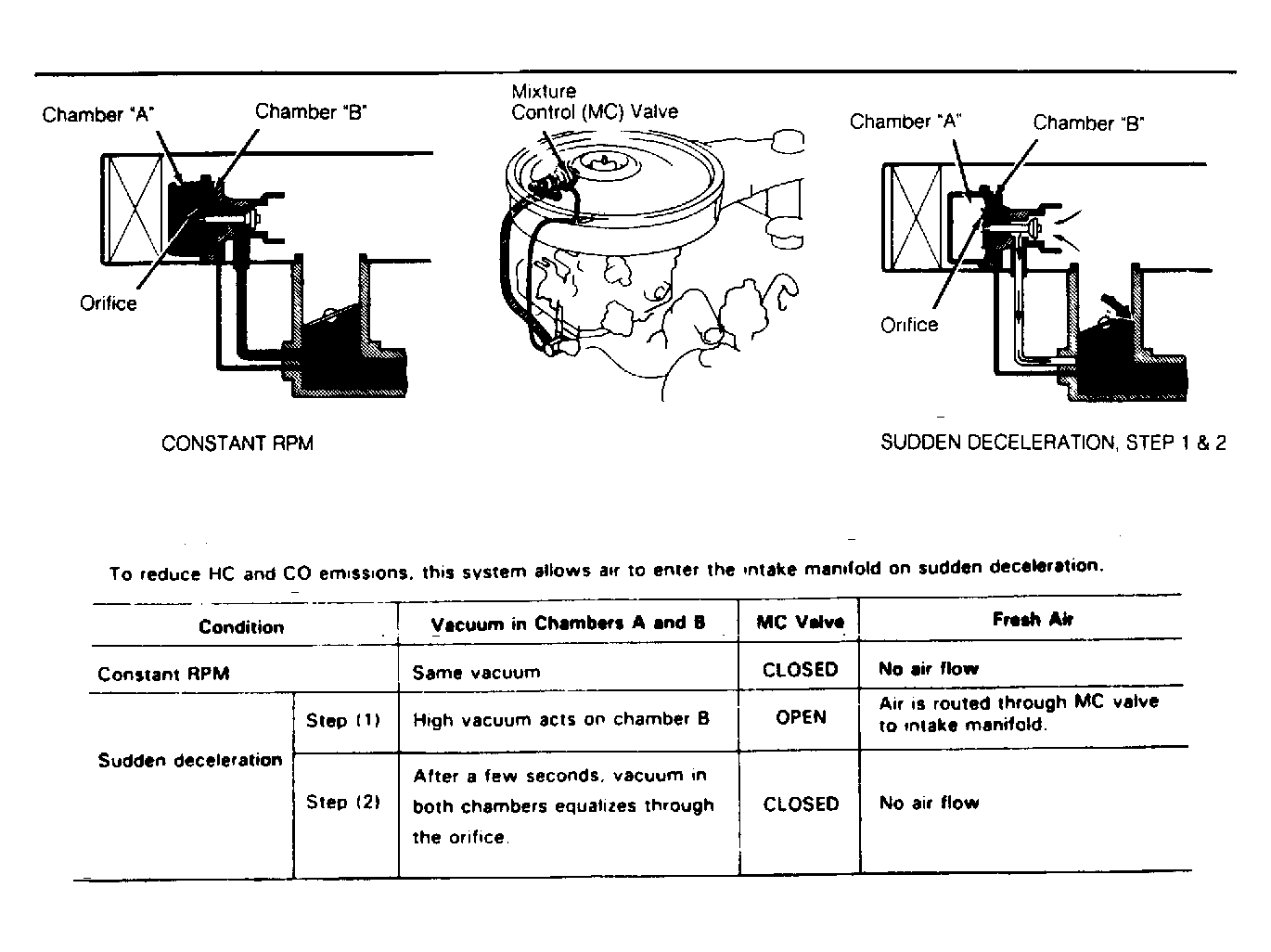

NOTE: Different carburetor feedback system components and operating parameters are used between models. Refer to appropriate system diagram and operating parameters when checking for proper system operation. See Figure thru Figure.
