Fuel Injector Resistor

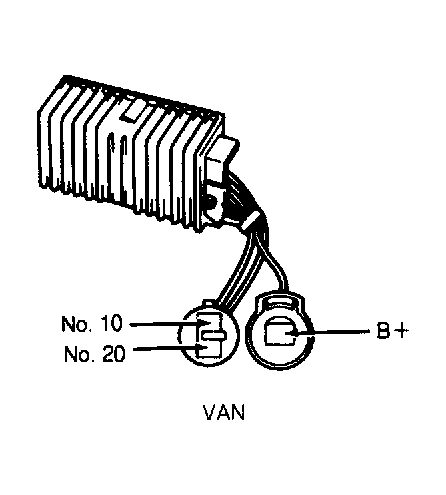

- Turn ignition off. Unplug injector solenoid resistor. Check resistance between terminal + B and other terminals. See Fig 1. See FUEL INJECTOR RESISTOR SPECIFICATIONS table.
- If resistance is not as specified, replace solenoid resistor. See FUEL INJECTOR SOLENOID RESISTOR LOCATION table. If resistance is good, check power feed to fuel injector resistor.
FUEL INJECTOR RESISTOR SPECIFICATIONS
| Model | Ohms |
|---|---|
| Van | 2-3 |
FUEL INJECTOR SOLENOID RESISTOR LOCATION
| Model | Location |
|---|---|
| Van | Left side of engine compartment |
