Remote Control Mirror

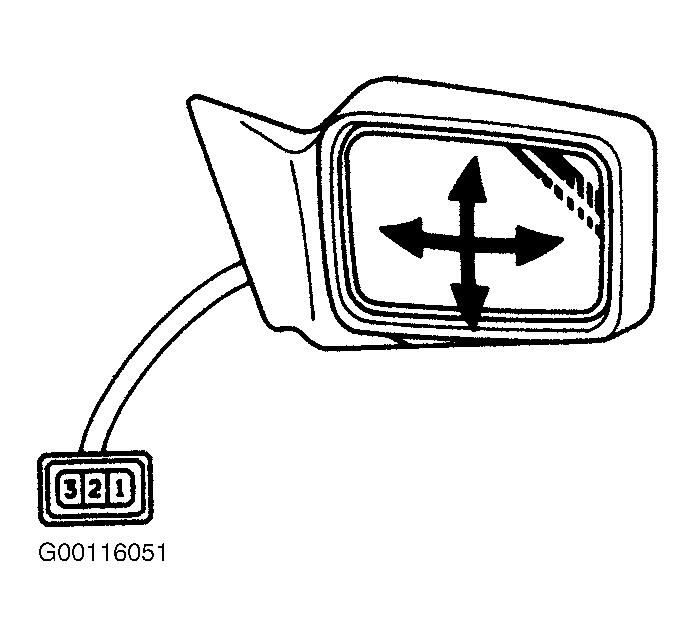

- Connect the positive (+) lead from the battery to terminal 1 and negative (-) lead to terminal 2, check that the mirror moves upward. See Fig 1. The reverse the polarity, check that the mirror operation is reversed.
- Connect the positive (+) lead from the battery to terminal 2 and negative (-) lead to terminal 3, check that the mirror moves to the right. Then reverse the polarity, check that the mirror operation is reversed.
- If there is no mirror operation, replace the mirror.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
