Component Locations

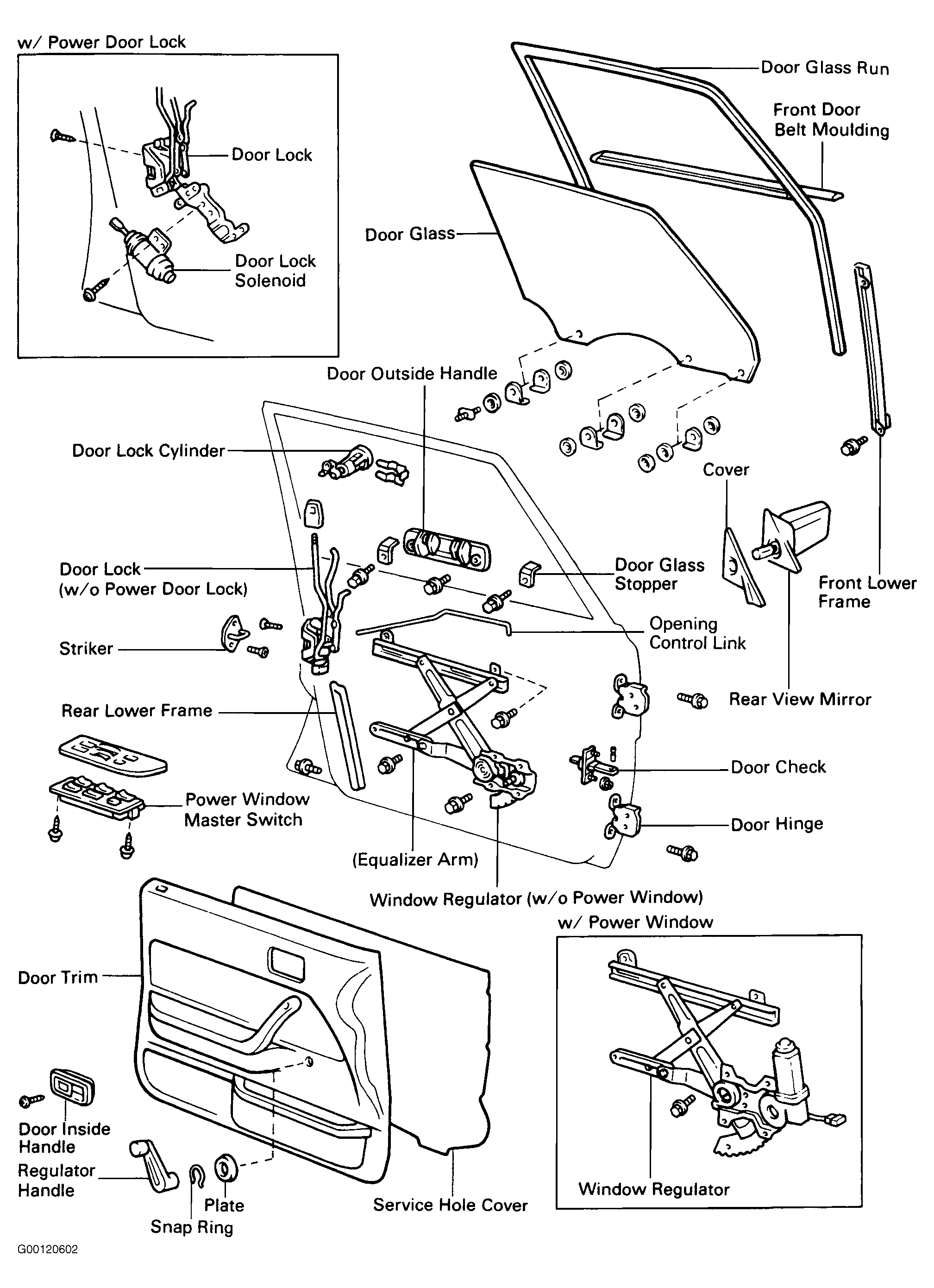

For component locations, refer to Fig 1. For fuse and circuit breaker identification, see FUSES & CIRCUIT BREAKERS article in ELECTRICAL.
COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Power Main Relay | R/B 1 (Fuse Panel) |
| Power Window Switch | On Respective Armrest |
| R/B 1 (Fuse Panel) | Drive's Side Kick Panel |
