Component Locations

For component locations, refer to illustrations. See Fig 1 and Fig 2 .

NOTE: For fuses and circuit breaker information, see 1988-92 TOYOTA FUSES & CIRCUIT BREAKERS article in ELECTRICAL section.

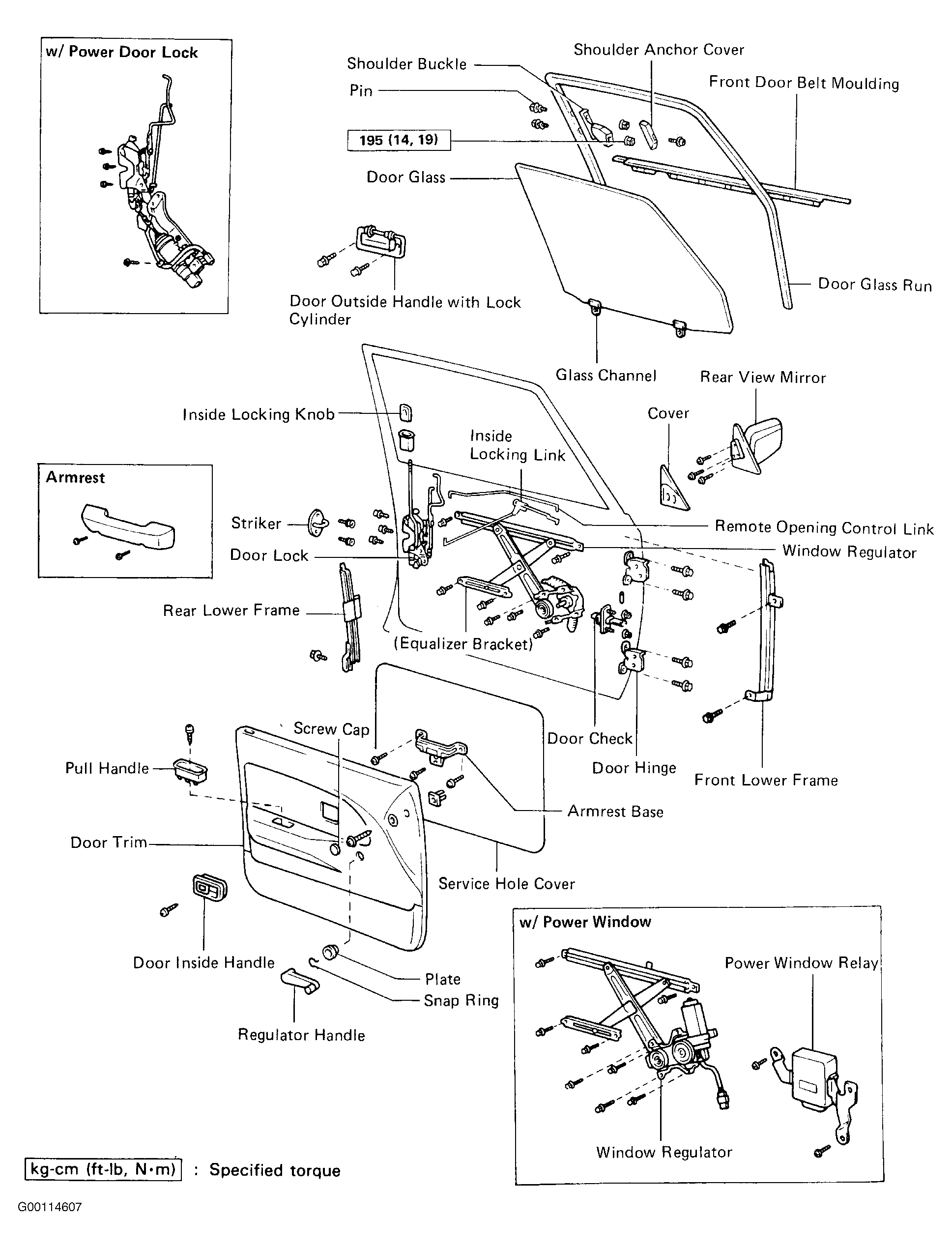

Fig 1: Exploded View Of Front Door Components (Except. Coupe)

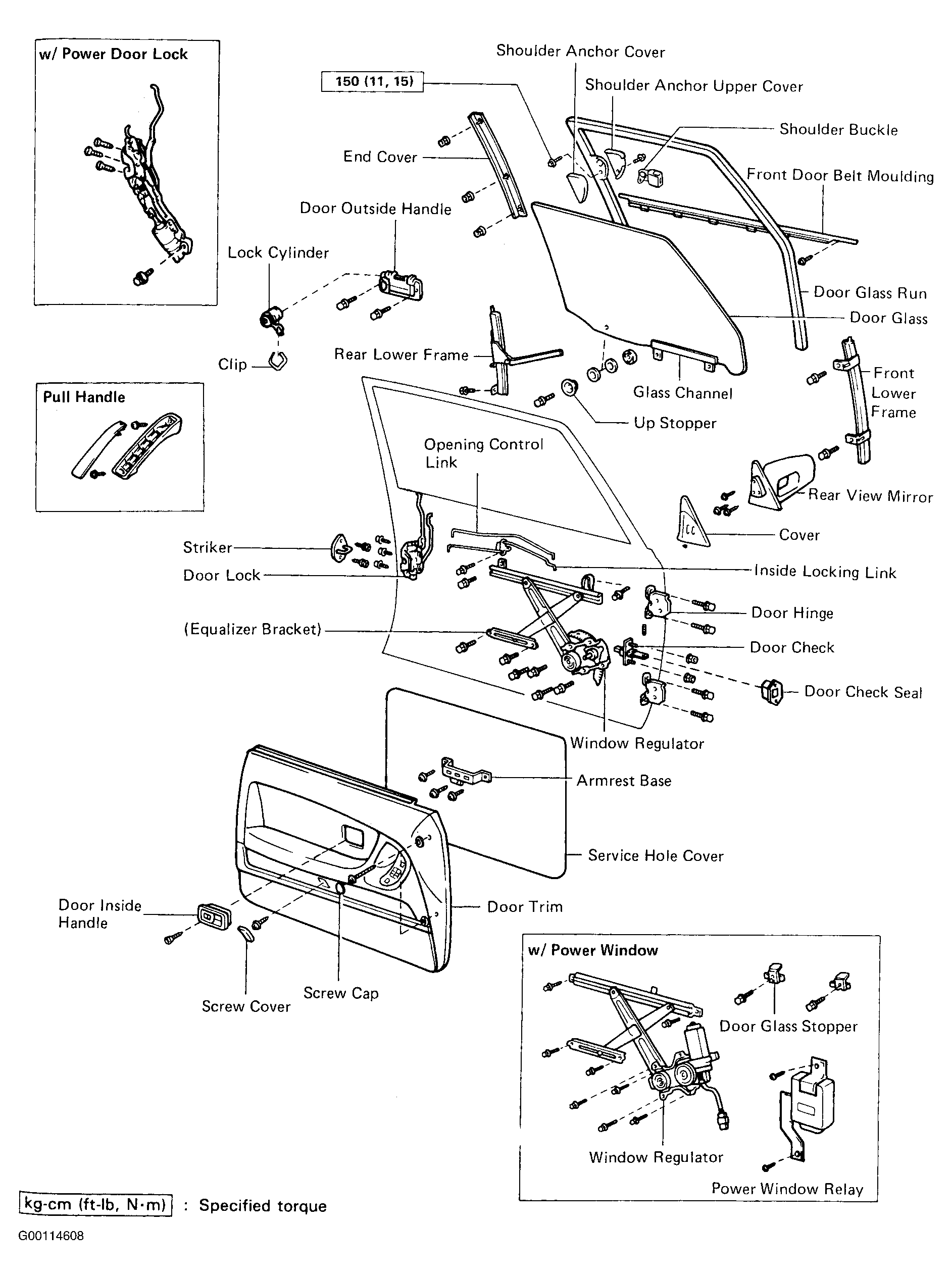

Fig 2: Exploded View Of Front Door Components (Coupe)
