Component Locations

For component locations, refer to illustrations. See Fig 1 and Fig 2 .

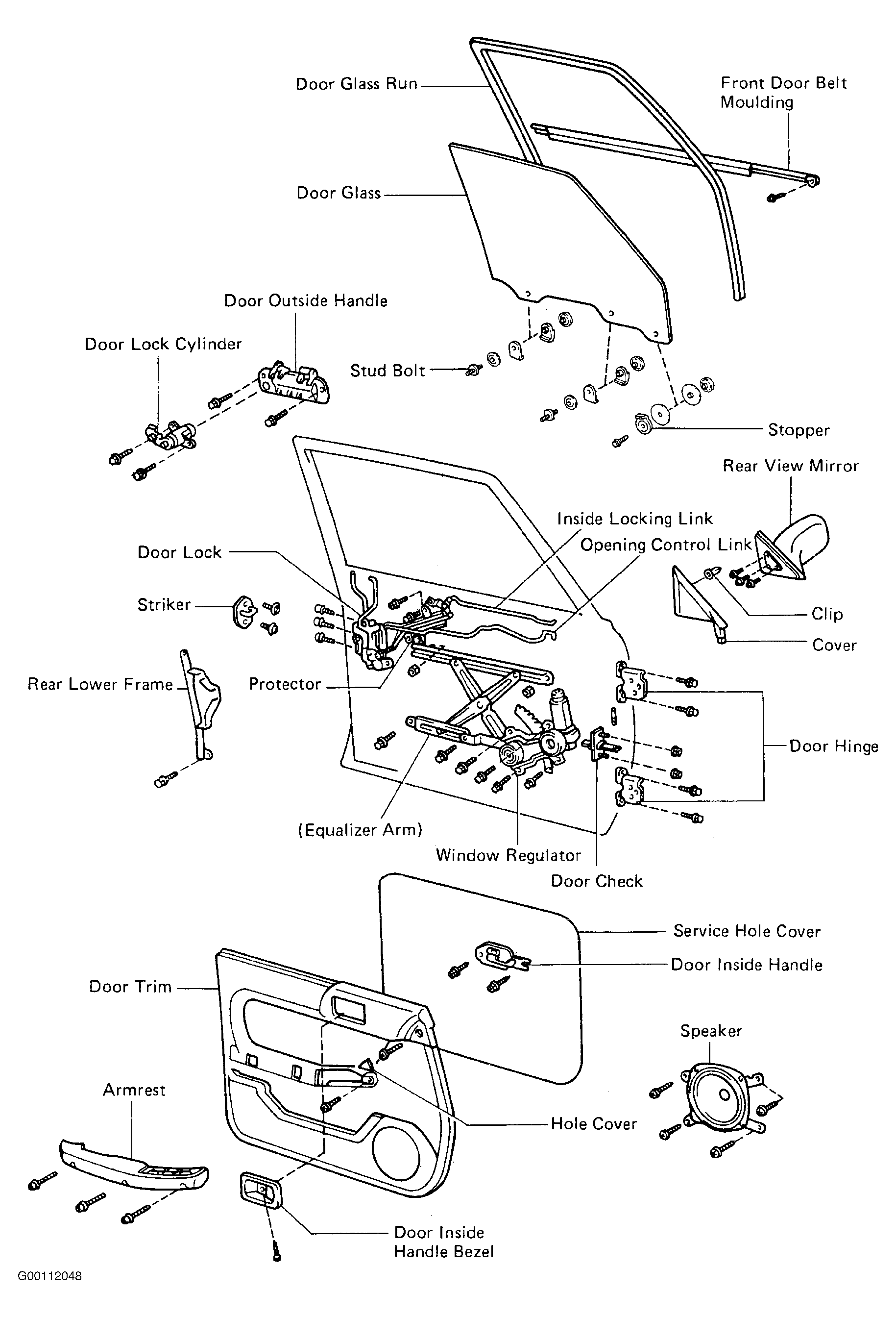

Fig 1: Exploded View Of Front Door

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

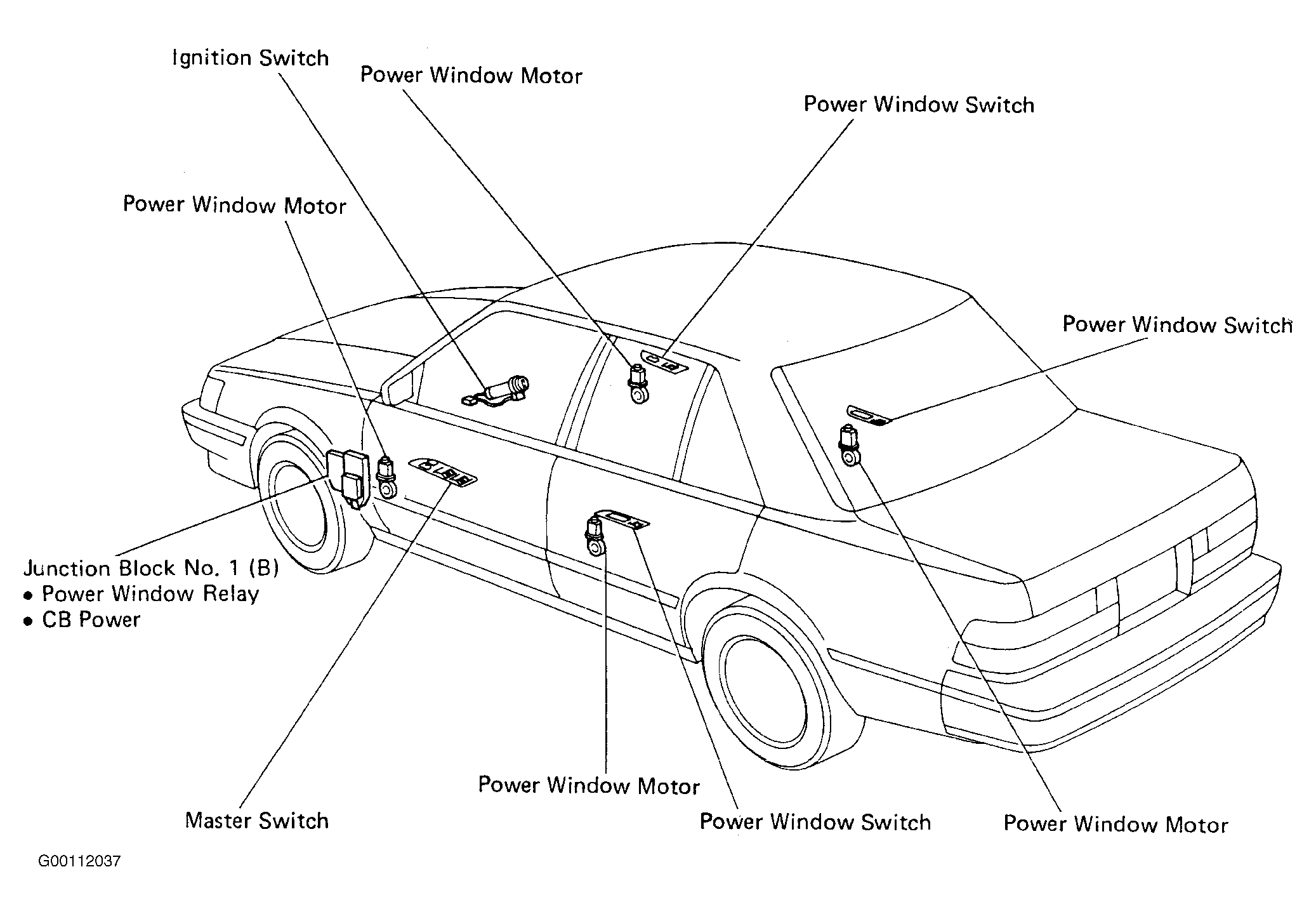

Fig 2: Locating Power Window Components
