Pump Motor Relay Continuity

NOTE: For location of relay, see Figure - Figure in this article.

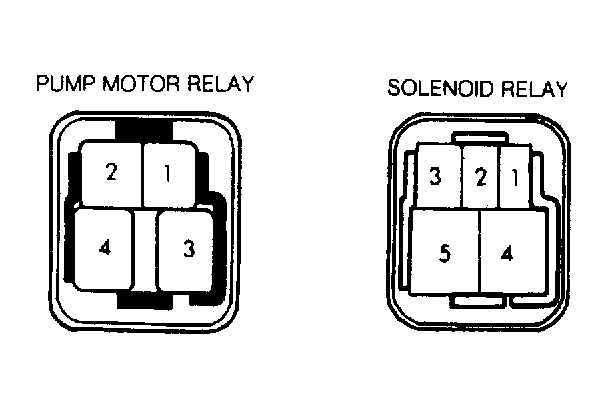

Using a DVOM, there should be continuity between terminals No. 1 and 2. See Figure. Check that there is no continuity between terminals No. 3 and 4, and terminals No. 1 and 4. See Figure. If readings are not as specified, replace relay.
