Power Window Relay

Disconnect the relay connector. Test the circuit for resistance and voltage on the wire harness side of the connector. Connect a lead from the positive terminal of the battery to harness connector terminal No. 1, and ground to terminal No. 4. See Fig 1. Ensure window closes. If circuit tests good, replace the relay.

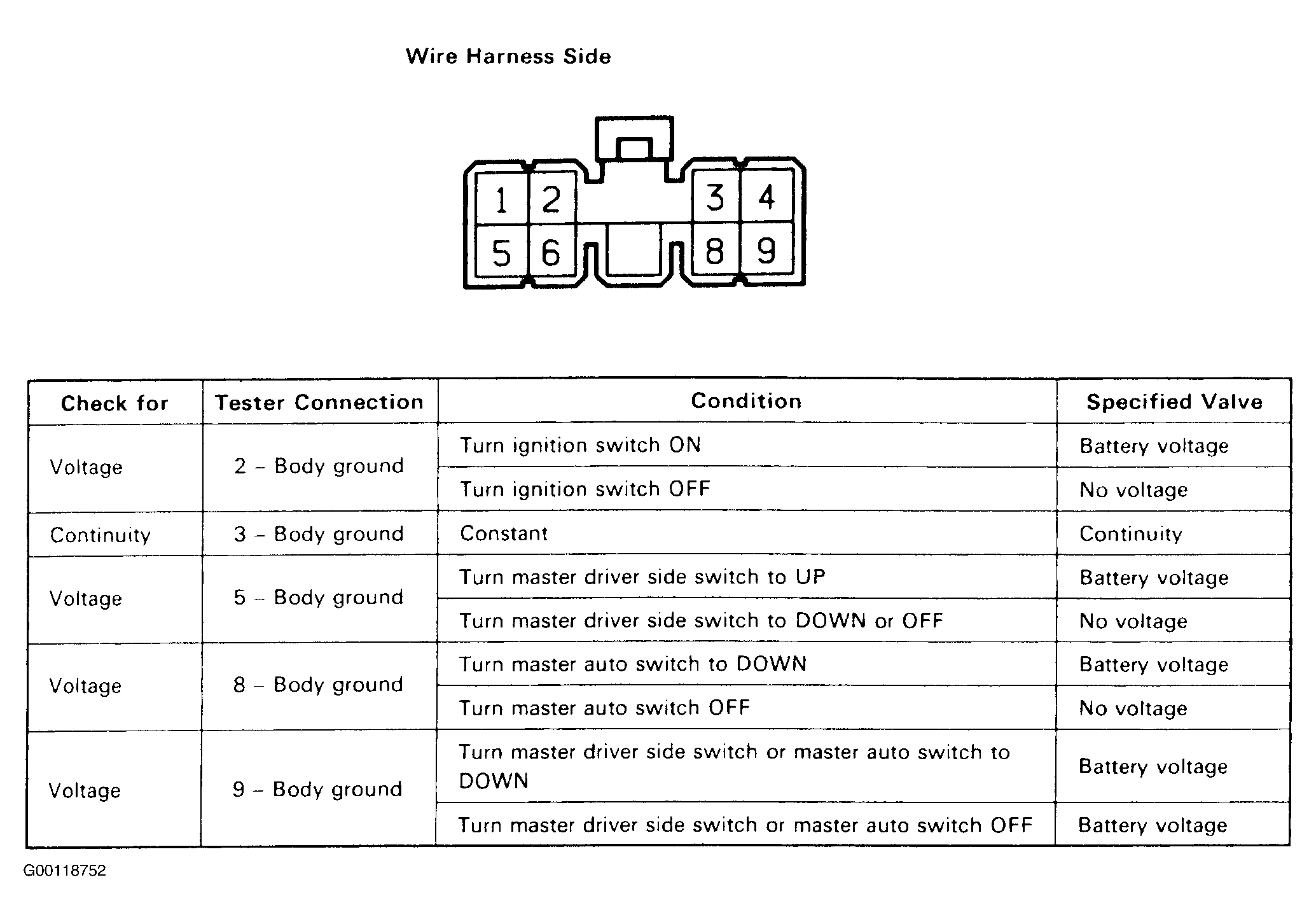

Fig 1: Testing Power Window Relay
G00118752Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
