Master Switch Continuity

Inspect master switch between specified terminals. See Fig 1. If continuity is not as specified, replace the master switch.

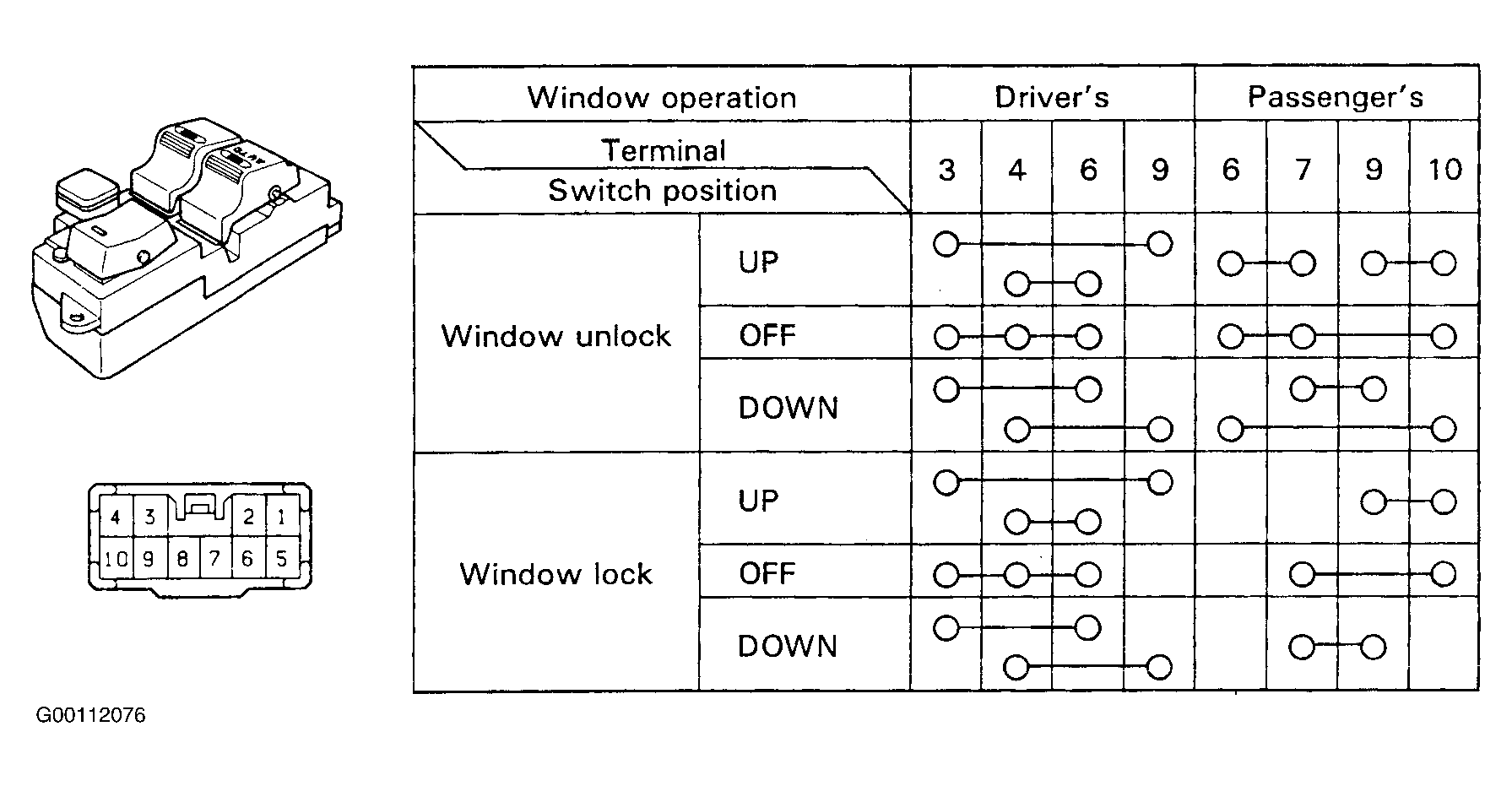

Fig 1: Testing Master Switch Continuity
