Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Anti-Lock Brake Control Unit | Behind dash, above glove box. |

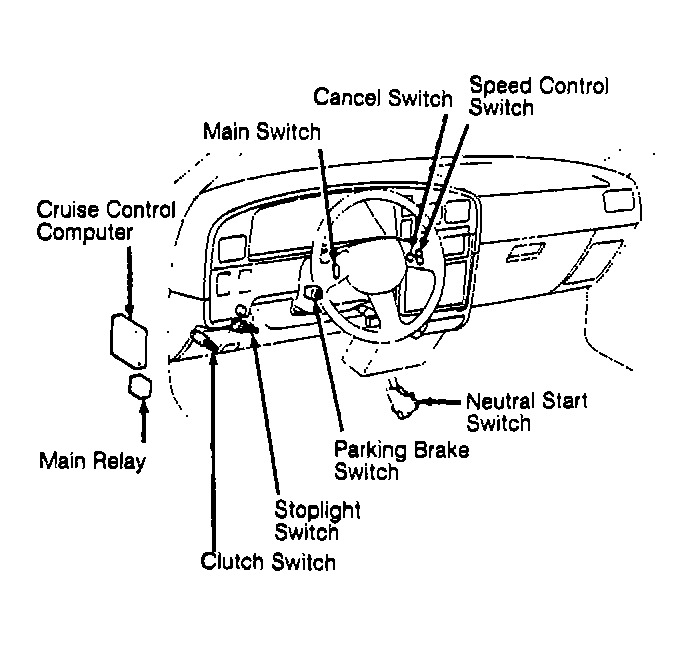

| Cruise Control Computer | Behind left kick panel. See Figure. |

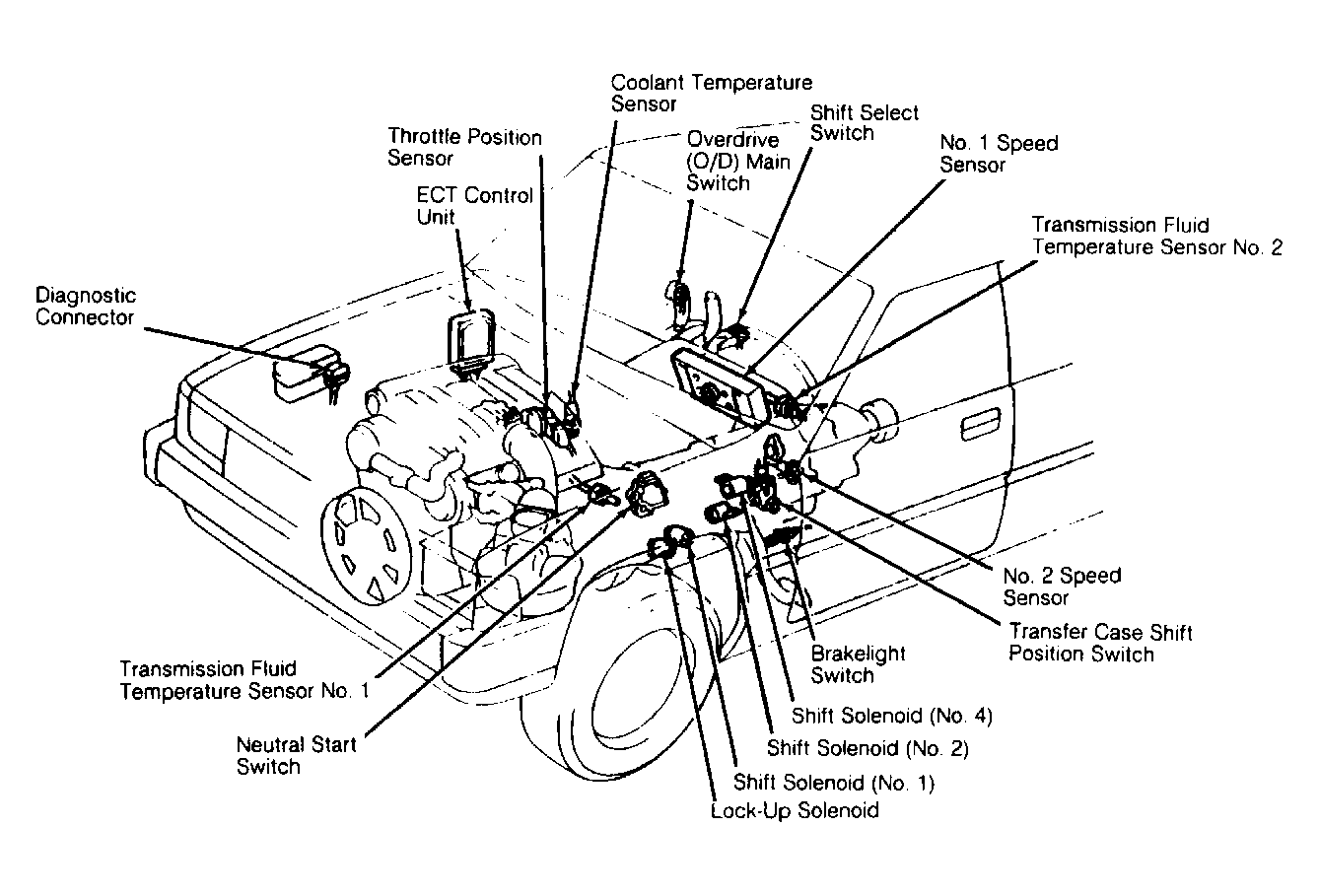

| ECT Control Unit | Behind right front kick panel. See Figure. |

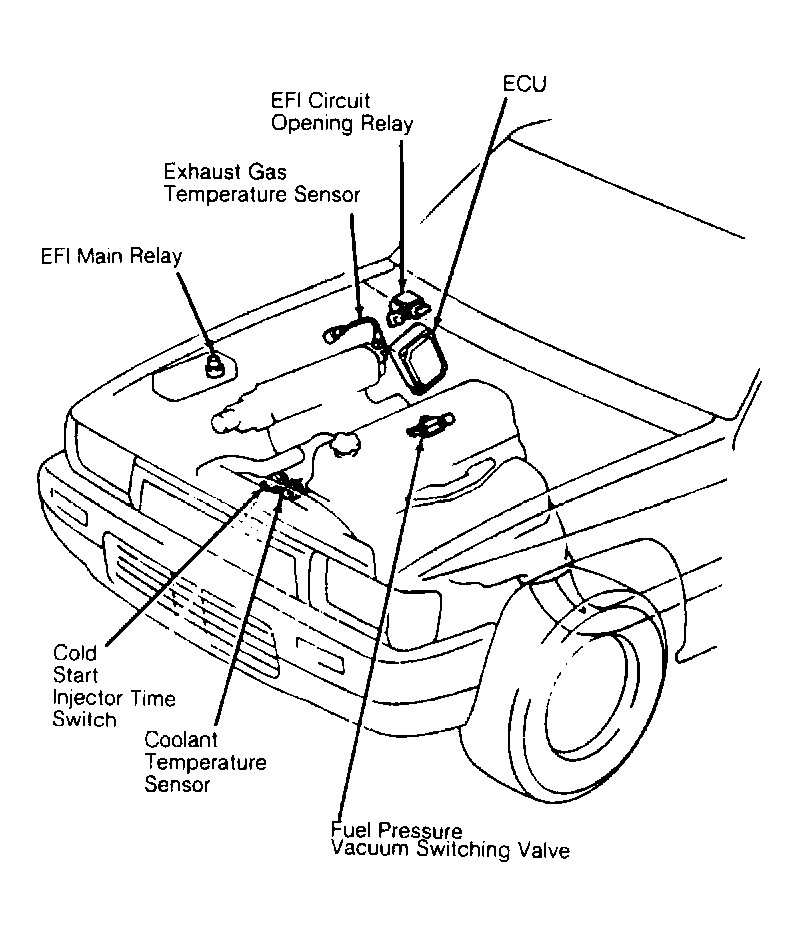

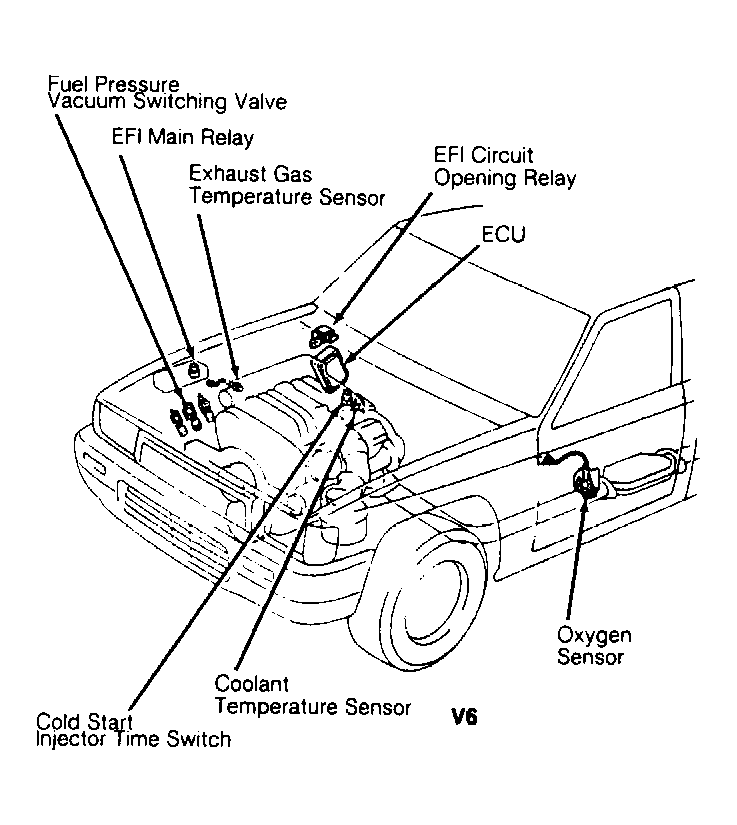

| Electronic Control Unit (ECU) | Behind right kick panel. See Figure & Figure . |

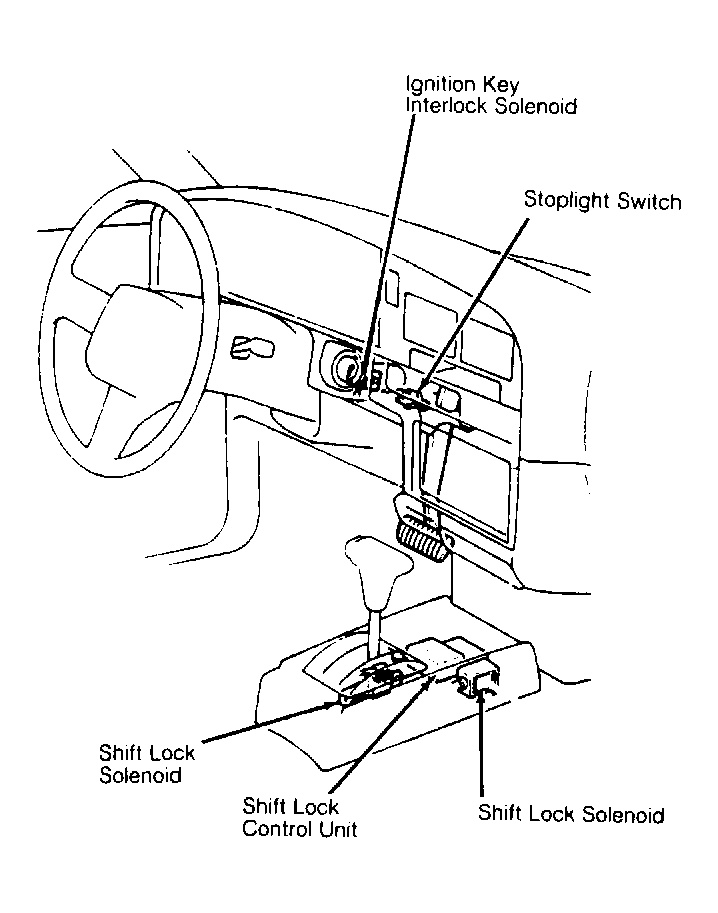

| Shift Lock Control Unit | Under shift lever console. See Figure. |
