Pull-In Test

Connect test leads to starter. See Fig 1. Connect negative leads to starter housing and terminal "C". Battery positive lead is connected to terminal "50". If starter pinion gear does not move out, replace solenoid.

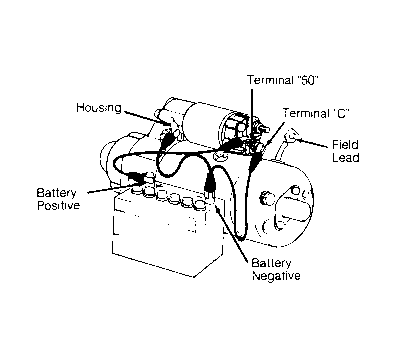

Fig 1: Testing Solenoid Pull-In & Hold-In
