Starter Relay

Verify continuity between relay terminals No. 1 and 3. Ensure continuity does not exist between terminals No. 2 and 4. See Fig 1. If continuity is not as indicated, replace relay.
Check relay operation. Apply battery voltage between terminals No. 1 and 3. Continuity should now exist between terminals No. 2 and 4. If relay does not test as indicated, replace relay.

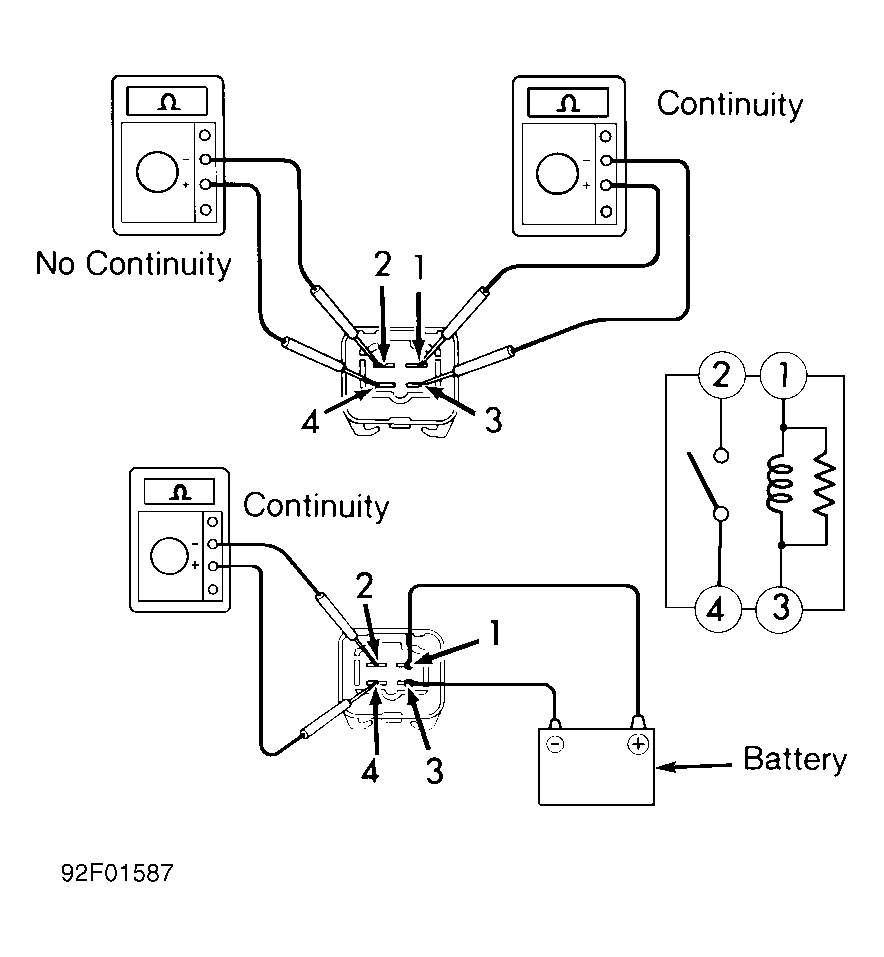

Fig 1: Testing Starter Relay

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

STARTER RELAY LOCATION ⁽¹⁾

Application

Location

Camry

In left cowl

Celica & Supra

Behind right kick panel

Corolla

No. 2 fuse block in engine compartment

Land Cruiser

⁽²⁾

MR2

Left side luggage compartment

Previa

Under left side instrument panel

Pickup & 4Runner

Driver's side fuse block

⁽¹⁾	On models with manual transmission only.

⁽²⁾	Land Cruiser models are not equipped with starter relay.
