Ignition Timing

IGNITION TIMING

Application Base Timing (1) Advance Timing
2.0L 10 @ Idle 12-21 @ Idle
2.2L 10 @ Idle 13-22 @ Idle
(1) With check connector terminals TE1 and E1 jumpered.

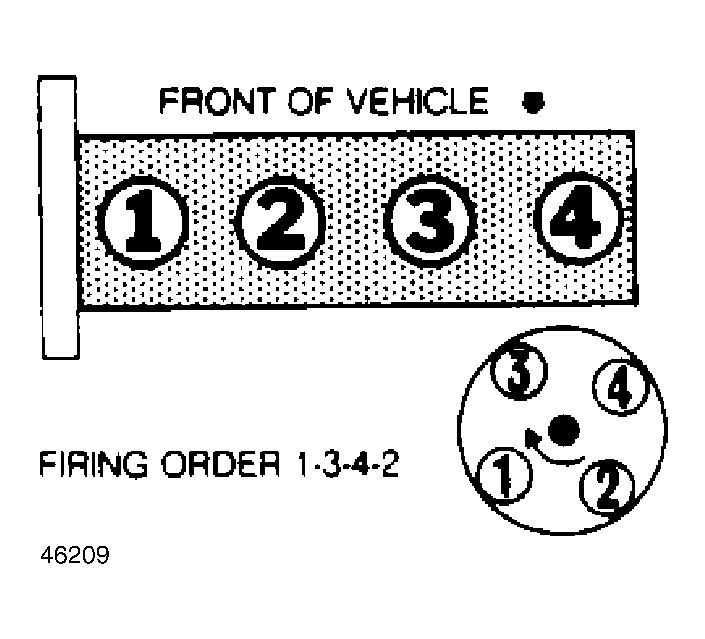

Fig 1: Firing Order & Distributor Rotation
G46209Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
