Home >> Toyota >> 1991 >> Previa DX, Automatic >> Repair and Diagnosis >> Engine Performance >> Engine Controls - Specifications >> Ignition System >> Ignition Timing

Ignition Timing

IGNITION TIMING

Application Base Timing (1) Advance Timing
Previa 5 @ Idle 12 @ Idle
(1) With check connector terminals TE1 and E1 jumpered.

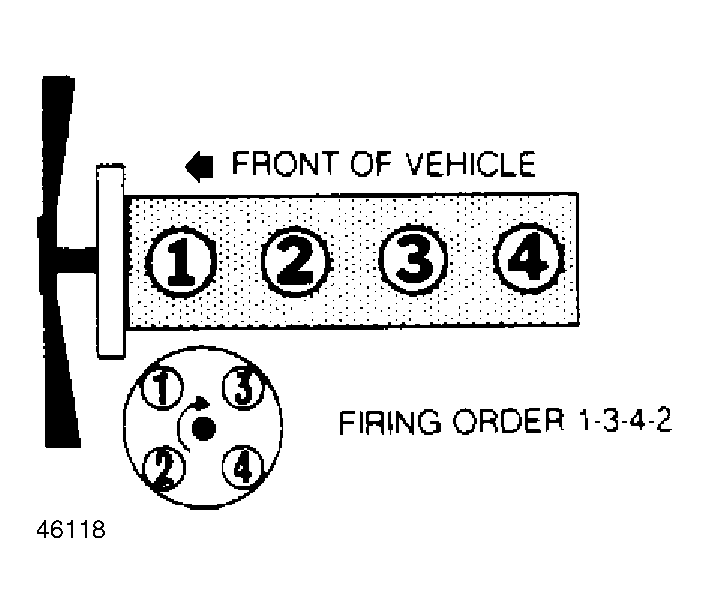

Fig 1: Firing Order & Distributor Rotation
G46118Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
