Hold-In Test

Connect test leads to starter as described in PULL-IN TEST . Disconnect terminal "C". See Fig 1. Starter pinion gear should stay out. If pinion gear does not stay out, replace solenoid.

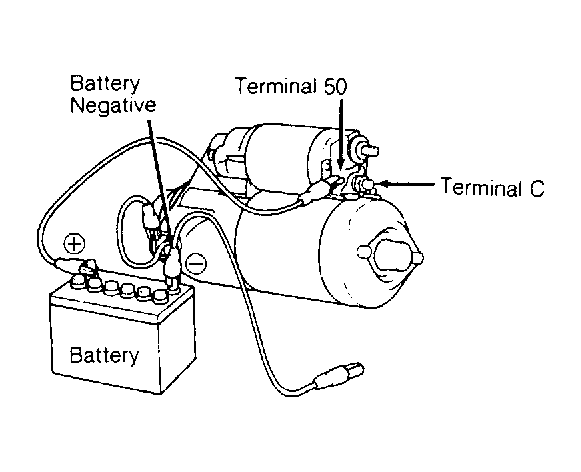

Fig 1: Testing Pinion Gear Return (Direct Drive)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
