Anti-Lock Brake System: Description

The Anti-Lock Brake System (ABS) consists of hydraulic unit, brake actuator, three 3-position actuator solenoids, pump motor, ABS computer and 3 speed sensors. See Fig 1 or Fig 2 .

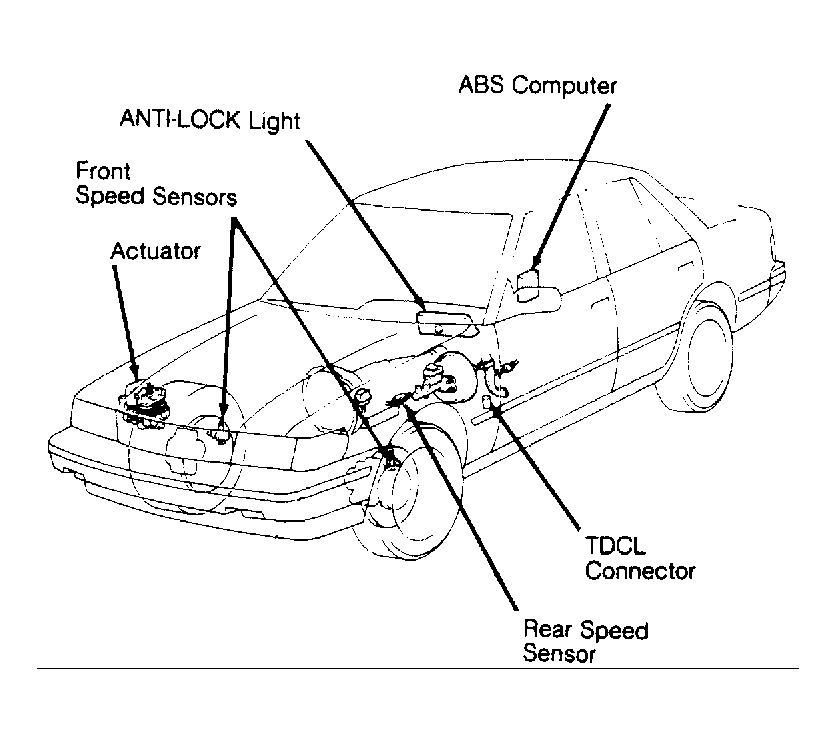

Fig 1: ABS Component Location (Cressida)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: ABS Component Location (Supra)

NOTE: For additional information on brake system, See BRAKES SYSTEM article in the BRAKES Section.
